Tie Down Shelving is used to secure delicate instruments in mobile settings, such as ships, vans, trailers, aircraft, and containers.

TIE DOWN SHELVING - CHARACTERISTICS

Now you can tie down portable equipment in trucks, vans, trailers, ships, aircraft, carts — quickly, easily and securely. Vinyl padded
lightweight aluminum shelving has recessed channels for KEVLOK Tie Down Straps with quarter-turn end fittings. Straps adjust from 11″ to 60″.

  • Positive equipment tie-down
  • Easy to use
  • Rugged – meets MIL-S-901D requirements for Grade A, Class I equipment
  • Minimum maintenance
  • Smooth, unobtrusive shelf surface
  • Easily installed
  • Attenuates shock up to 90%
  • Usually eliminates need for instrument re-calibration after transport
Tie Down Shelving for use in trucks, vans, trailers, ships, aircraft and carts.

STRAPS

AGM’s standard strap assembly qualifies under both lightweight and medium weight shock applications per MIL-S-901D. Where applicable, a minimum of two straps are supplied with each shelf up to 24″ in length. One additional strap is supplied for each foot of shelving or increment thereof over 24″ in length. Straps adjust from 11″ to 60″. Standard strap color is gray. Additional straps may be ordered as part number CT1109. Custom assemblies are also available.

Use this link to see our Strap Drawing (opens as a PDF).

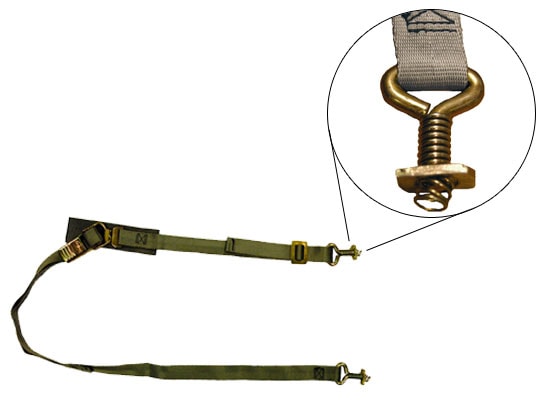

Straps for Tie Down Shelving

TIE DOWN SHELVING - OPTIONS

KX1184 MONITOR MOUNT

  • Quick and easy mounting to Kevlok shelving, without the use of tools
  • Installs directly into Kevlok shelving track – no disassembly of the shelving is required
  • Standard VESA mount for both 75 x 75 mm and 100 x 100 mm monitor backs
  • Heavy gauge steel construction
  • Powder coat finish on steel base and brackets
  • Ball joint for monitor tilt and swivel adjust-ability
Tie Down Shelving - Monitor Mount - View of Mounted MonitorTie Down Shelving - Monitor Mount - View of Ball JointTie Down Shelving - Monitor MountTie Down Shelving - Monitor Mount - Back View of a Mounted MonitorTie Down Shelving - Monitor Mount - Side View of a Mounted Monitor

WRITING SURFACES

CONFIGURATION "KW"

  • Same as KA configuration, PLUS writing surface and pull-out keyboard tray
  • 13″ deep writing surface
  • 12″ covers shelving
  • 1″ extends beyond front edge of shelf
  • Powder coat finish on steel base and brackets
  • Surface extends full length of shelf

CONFIGURATION "KWN"

  • Same as KA configuration, PLUS writing surface and pull-out keyboard tray
  • 18″ deep writing surface
  • 12″ covers shelving
  • 6″ extends beyond front edge of shelf
  • Surface extends full length of shelf

PULL-OUT KEYBOARD TRAYS

  • Minimum length of 30″ required for pull-out trays
  • Single trays are centered under writing surface
  • Standard “KW” and “KWN” configurations: one keyboard tray is supplied for every 30″ of length
  • 1″ extends beyond front edge of shelf
  • Multiple trays are equally spaced along length of shelf
  • Custom positions of keyboard trays are available upon request

FILE TRAYS - KX1035

  • Hold paperwork neatly in place
  • Mount to the underside of upper shelving

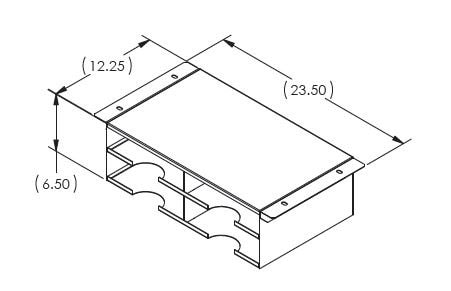

Tie Down Shelving File Trays

BOOKENDS

  • Support books upright on shelving
  • Holding strap included
  • Fit in shelving recessed channels

CORNER UNITS

  • Approximately 30″ deep writing surface at center
  • From inner corner, extends 23-1/2″ in each direction along shelves
  • Includes pull-out keyboard tray
  • 12″ covers shelving on each side
  • Due to spanning two installed shelves, assembly is done by customer

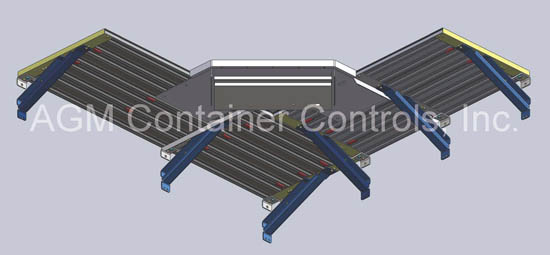

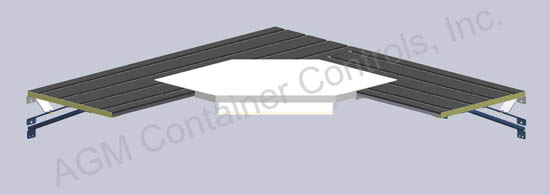

Tie Down Shelving Corner - View from AboveTie Down Shelving Corner - View from Below

TIE DOWN SHELVING DRAWINGS

STANDARD SHELVING ASSEMBLIES FOR STORAGE & TRANSPORT

Click on the links below to download AGM’s KevLok Tie Down Shelving Drawings (links open as a PDF). To determine the part number you need, please see the chart on the Order Information page.

CUSTOM SHELVING ASSEMBLIES FOR WORKSTATIONS

In addition to our standard shelving assemblies, AGM can provide you with custom assemblies designed for workstations with writing surfaces and pullout keyboard trays. Click on the links below to view drawings (links open as a PDF) of some of the custom assemblies possible with KevLok Tie Down Shelving.

To determine the part number you need, please see the chart on the Order Information page.

QUICK-ADJUST SHELVING

Quick-Adjust Tie Down Shelving is an exceptional solution to spaces that require frequent configuration changes based on the mission or equipment being stored. It mounts to a bulkhead or other structure by means of the Quick-Adjust Shelving Bracket and ISO track (also called slot and hole tracks).

Click on the links below to view drawings (links open as a PDF) of the shelving assemblies, straps and ISO-track options available.

SHELVING ASSEMBLIES

STRAP ASSEMBLIES

To ensure the protection of vital equipment from damage due to rough seas, near-miss explosions, etc., the Navy is installing KevLok Tie Down Shelving in an increasing number of spaces. The flexibility of the KevLok Tie Down Shelving makes it possible to quickly install all shapes and sizes of COTS equipment and just as quickly replace them as needed. Since equipment is securely tied down, the shelving also provides an additional means of safety for onboard crew.

PARTIAL LIST OF U.S. NAVY SHIPS FEATURING KEVLOK SHELVING

the "Hammer test"

A Hammer Test simulates rough seas or “near miss” explosions.

AGMs KevLok tie down shelving passed the Lightweight High Impact Shock Test in August 1996 and in February 2002, KevLok shelving passed the Medium Weight High Impact Shock Test.

Since then, multiple AGM shelving part numbers have passed one or both weight of these tests in subsequent trials. Watch our Hammer Test video that shows clips of the testing at the facilities.

TIE DOWN SHELVING F.A.Q.

is your shelving shock test qualified to mil-s-901d?

Yes. KevLok shelving has passed multiple MIL-S-901D shock tests. It is qualified to Shock Grade A, Test Category Medium Weight, Equipment Class I.

what lengths of shelving are available?

The shelving can be made in any length from 12″ to 144″ in increments of 1/100″. The depth of the shelf varies in 6″ increments. Standard shelves are up to 36″ deep. However, we have made a shelf for a tabletop application that was 66″ deep. To give an example, the KA24 is one of the most common base part numbers sold. It is 24″ deep and comes with all mounting hardware, metal endcaps, and strap assemblies. A KA24-6650 is a K24 shelf that is 66.50″ long.

DO YOU SELL STRAPS THAT ARE INTENDED TO BE USED WITH THE SHELVES?

Yes. the CT11009 strap is the strap that is normally provided with the shelves. They feature 1/4 turn fasteners on the ends which allow the strap to be quickly and easily connected to the shelf to restrain items to the shelf.

what is the load rating of the shelf?

KevLok shelving has been shock qualified to handle loads up to 40 lbs/ft2.

how much does the shelf itself weigh?

The shelf weighs between 4.0 and 4.5 lbs/ft2. It varies slightly based on the number of straps and supports that are required.

is there a finish on the shelves?

No. The shelves are normally bare aluminum. However, we can conversion coat them or anodize them on special request.

do you supply shelving with a writing surface that is used as part of a workstation?

Yes. The KW series of shelves does have an integrated writing surface along with a keyboard tray underneath the shelf. The KW series can be 18″ deep to 36″ deep, but the most common is the KW30 series. For all KW series the total shelf depth is 6″ more than the basic shelf depth because the writing surface extends past (overhangs) the shelf by 6″. The writing surface is a total of 18″ deep so it also extends back over the shelf by 12″. The KW series is available with a single keyboard tray in lengths of 30″ to 36″ and with two keyboard trays in lengths of 60″ and 72″. For longer lengths, multiples of the above are used.

if i need special features on my shelf, like pre-drilled holes, can you do that?

Yes. We will do special features. You will need to submit a sketch (of what you would like) to our Engineering Department for approval prior to AGM accepting an order.

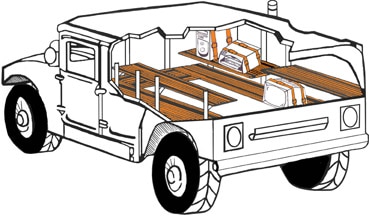

can i use the shelves in a humvee or a portable shelter?

Yes. These shelves are ideal for any situation or location where structure movement puts equipment, and consequently people, at risk because it keeps the equipment in the position that is intended to be in. The straps restrain equipment and keep equipment and people safe.

is this the only mounting system you have for the shelves?

No. We have recently developed the Quick-Adjust Tie Down Shelving Bracket which adapts the KevLok Shelving system to an ISO slot and hole track. This combination makes the shelves very simple to configure or re-configure once the trace is installed. No tools are required to adjust the shelving height on Quick-Adjust shelving.
