Shipboard Mounting Systems

Make Sure Your Cargo Stays Put

We offer two commercial off-the-shelf (COTS) shipboard mounting systems: the KX1125 steel track and the KX1130 aluminum track. Both mounting systems have been qualified to meet the following military standards: MIL-S-901D Shock Test, Medium Weight and MIL-STD-167-1A Vibration for Shipboard, Hull-Mounted.


Find What You're Looking For

It’s a lot, we know. If you’re looking for something specific or aren’t sure what you need, try searching through all products or give us a shout and we’ll help!

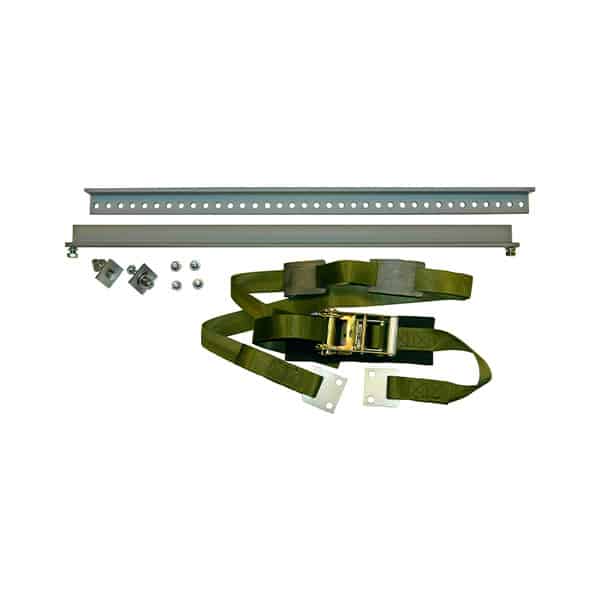

KX1125 Shipboard Mounting System

What is a shipboard mounting system?

Shipboard mounting systems are essentially a set of tracks with straps. The tracks of our mounting systems are secured to the deck, and the included straps are used between the tracks to secure items (e.g. usually cabinets).

Sizing & Specifications

  • Track Length: Two 36” long tracks

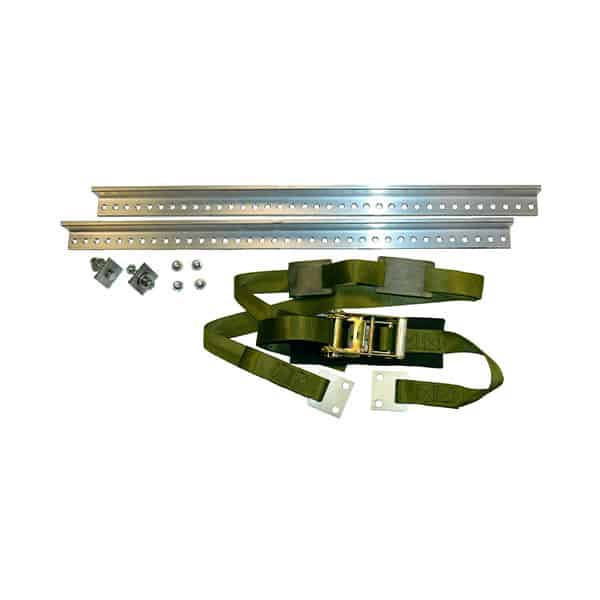

  • Weight: The KX1125 steel track version weighs approximately 44 pounds. This includes the track, the 3 strap assemblies, and all supplied hardware. The KX1130 aluminum track version weighs approximately 27 pounds.
  • Webbing Material: The webbing is polyester for high strength.
  • Finishes: All of the metal hardware and strap components are finished with zinc plating for corrosion resistance. The steel tracks are painted with a commercial gray primer. The aluminum tracks are bare aluminum.
  • Qualifications: Both the KX1125 steel track and KX1130 aluminum track versions have been shock tested and qualified to MIL-S-901D Shock Test, Medium Weight and MIL-STD-167-1A Vibration for Shipboard, Hull-Mounted.

Industry Applications

Similar to the industry applications for KevLok tie-down shelving, shipboard mounting systems are also typically used to secure the following items in workstations aboard U.S. Navy ships, U.S. Marine Corps portable shelters and command centers:

  • Electronic equipment
  • Hard Copy files
  • Binders
  • Books

These applications may also be similarly used for both law enforcement and civilian purposes.

No two jobs are the same so get the solution that's right for you. Work with AGM Engineering and get a solution specific to your challenge today.

Kevlok-black-with-hardware

FAQs

The mounting bolts for the strap end plates have 1/2-20 threads while the 2”-long deck bolts have 1/2-13 threads. This eliminates confusion about which bolts are to be used where.

They should be tightened as tight as you can tighten them with your hands without mechanical aids such as “cheater” bars.

As a company, we pride ourselves on meeting our customers’ needs, from simple to complex. Therefore, if you need something “just like this but …”, contact us and we will do our best to provide what you need.

Yes. Replacement covers are for sale for all of our access ports, desiccant baskets, and records holders. The replacement is easily accomplished in minutes using common hand tools. Please specify the part number of the item you are requesting a replacement cover for as we make many custom items with unique part numbers.

Yes, we do. Many of our customers work with us to develop custom applications using our access ports.

These features include an extra-long cover lanyard, special finishes, special gaskets, stainless steel housing and mounting nut, rfi protection, and extended wall thickness housing.
