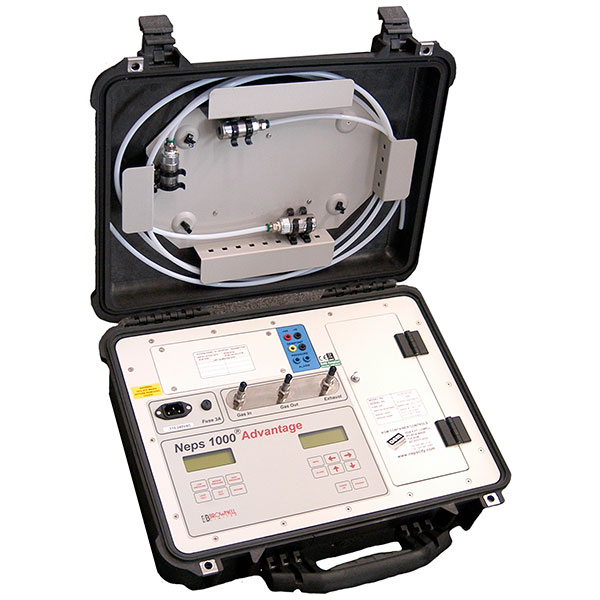

NEPS 1000 Single Point Purge Systems

Dry gas purging with Nitrogen Purging Systems removes moisture and creates low dew points within sensitive equipment

Find What You're Looking For

It’s a lot, we know. If you’re looking for something specific or aren’t sure what you need, try searching through all products or give us a shout and we’ll help!

Why are single point purge units important?

Compared to more traditional dual-point or through purge systems, a single-point purging system provides a more thorough purge and more efficient use of the dry gas. This is because the dry gas will typically follow the path of least resistance from the entry to exit point of the equipment.


Benefits Of Using A Single Point Purge Unit For Dry Gas Purging

Our single-point nitrogen purge system is a superior machine for dry gas purging enclosures. In comparison to traditional dual-point purging systems, our single-point system provides a more efficient purge. The dry gas has a single flow path with fewer entry and exit points, ensuring a thorough purge rather than allowing gas to take a path of least resistance.

Industry Applications

In the early years of air separation, oxygen was the most sought-after component for use in the steel industry. This situation began to change when nitrogen was no longer considered a waste product and its inert properties could be exploited as a blanketing gas. Dry nitrogen can be supplied from bottles, cryogenic factories or nitrogen generators.

Today, nitrogen is used in a host of applications, including:

  • Blanketing of tanks with flammable or toxic materials
  • Blanketing of metal reduction processes
  • Purging process equipment
  • Medical applications
  • Soil freezing prior to excavation
  • Food freezing
  • Finishing of rubber goods
  • Cooling in helium or hydrogen plants
  • Freeze grinding
  • Fragmentation of scrap metal
  • Electronics Industry

Purging and blanketing are probably the most popular uses of nitrogen gas. Tanks filled with hydrocarbon liquids have vapor space at the top of the tank, which collects hydrocarbon vapors. In atmospheric tanks, air can be drawn in when emptying the tank and it would be easy to ignite this by static electricity or friction. Purging the vapor space with nitrogen prevents this.

AGM offers custom engineering services so you get exactly what you need


Nitrogen is generally a reliable dry gas, which is economic, safe (when handled properly) and chemically inert with most metals and materials

Bottled nitrogen is often specified as dryer than 2 ppm (parts per million) equivalent to a dew point of -94°F (-70°C). The gas source for drying should always be validated before use. As a rule of thumb the gas must be at least 10°C lower than required purge dryness.

  • Molecular Weight: 28.01
  • Boiling Point: -319.9°F (-195.5°C ) at 14.7 psi (101.3 kPa)
  • Specific Volume: 13.72 ft.3 lbs.-1 (0.855 m3 kg-1 at 68°F (20°C), 14.7 psi (101.3 kPa)
  • Critical Temperature: -232.5°F (-146.95°C)
  • Critical Pressure: 493 psi (3,400 kPa)
  • Heat Capacity: 249 BTU lbs.-1 °F-1 (1,040 Jkg-1 K-1) at 77°F (25°C), 14.7 psi (101.3 kPa

Leak testing can be carried out to ensure the suitability of the equipment for pressurized purging. The default pressure test setting is 2.5 psi.

Leak testing with the NEPS nitrogen purge system is a simple operation and has a sensitivity that is related to pressure degradation against time. The NEPS nitrogen purge system has a display resolution of 0.01 psi allowing users to achieve high sensitivities depending on the monitored time for the equipment under test to degrade from the initial test pressure.

The equipment volume must be considered when calculating the actual leak rate.

  • 60 Minutes to degrade by 0.01 psi
  • 1,000 cc volume = 1.9 x 10-4 cc/second
  • 10,000 cc volume = 1.9 cc x 10-3 cc/second

CAUTION: Leak testing must be conducted with a stable/constant ambient/equipment temperature. A variation of 3.6°F (2°C) can cause up to a 0.1 psi change in pressure.

Yes. It is available in a 19″ rack-mounted version, NEPS 1900 Racked, for use in automated test situations.

The NEPS 1000 comes standard with male and female quick disconnect. The female will need to be adapted to your nitrogen line and has a 1/4″ NPT female thread to connect to.

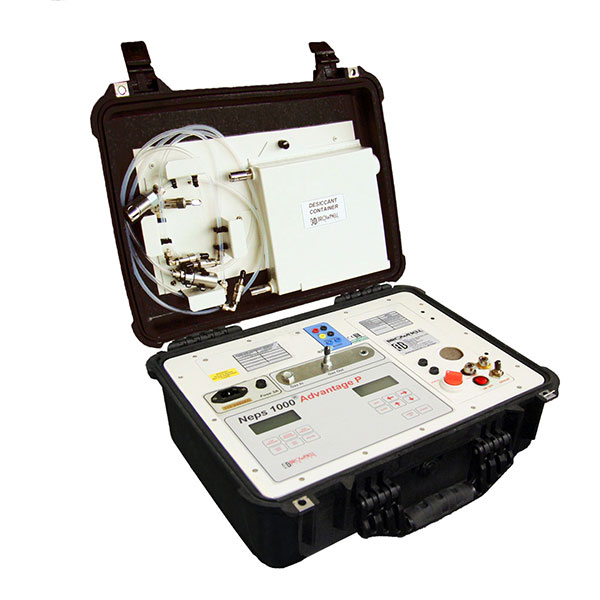

The standard NEPS 1000 and NEPS 1900 rack-mount models require nitrogen or other dry air sources. The NEPS 1000 pumped has a bed of molecular sieve desiccant that dries the incoming air prior to sending it into your enclosure and does not require a dry air source. This is particularly useful in field use where it might be cumbersome to have a bottle of high-pressure nitrogen on hand. However, periodically, the molecular sieve desiccant will need to be replaced. We carry a full line of desiccant products and can supply replacement desiccants for NEPS units.

No. The NEPS 1000 can be used with nitrogen, dry air, argon, and sf6 gasses. It should be noted that dry gasses are available in varying qualities and levels of dryness. (no flammable gasses should be used)

The NEPS will display a dew point range of +20°C (+68°F) to -80°C (-112°F).

No. After initial setup, the NEPS 1000 will automatically stop the dry gas cycling when the air stream leaving the equipment reaches a preset dew point temperature. With the addition of a remote sensor, the dew point stat feature of the NEPS 1000 will then resume dry gas cycling after the dew point temperature has degraded to a predetermined amount.

Yes. After repeated cycles, it will become apparent when the moisture has been removed from the hygroscopic materials in the equipment. It is a common misconception that the majority of the moisture in sealed equipment is contained in the empty volume of air. In fact, the majority of the moisture is contained in hygroscopic materials, such as electrical boards and plastic components.

Yes. You can lease a NEPS unit so you can test it for your specific applications, contact us for more information.
