Observation Port for Sealed Containers
See Inside Without Risk
Observation ports make it possible to see inside of a sealed container without opening the container and exposing the contents to contaminates.
- Container Access
- Corrosion Prevention
- Humidity Monitoring
- Moisture Control
- Moisture Purging
- Pressure Control
- Shelving & Straps
- Shock Monitoring
Find What You're Looking For
It’s a lot, we know. If you’re looking for something specific or aren’t sure what you need, try searching through all products or give us a shout and we’ll help!
What is an observation port?

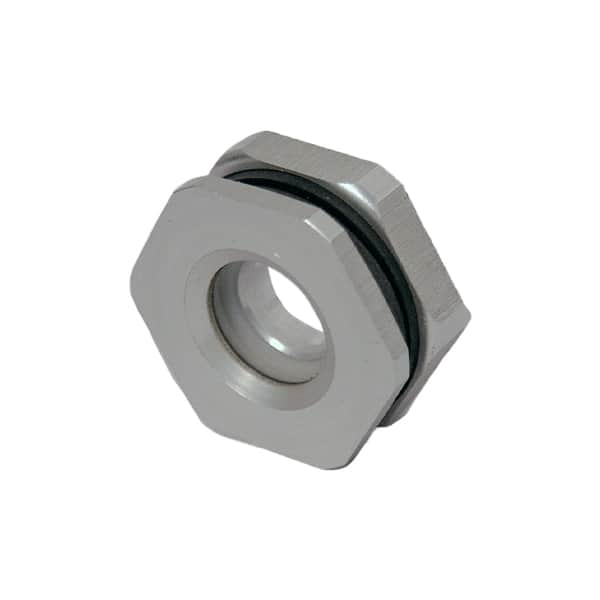

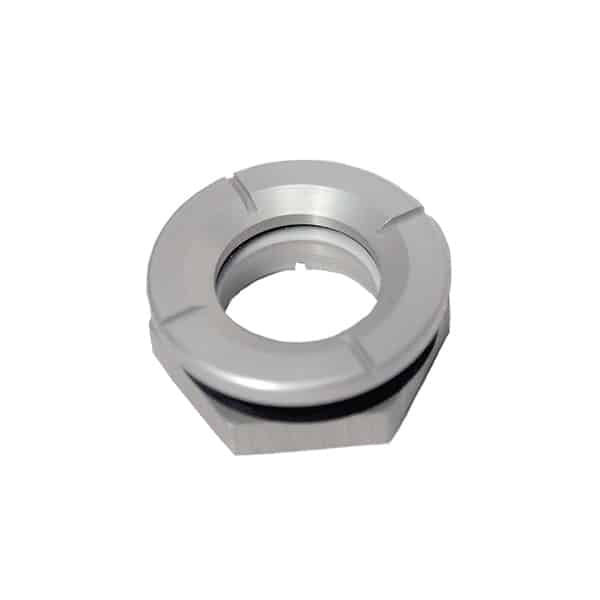

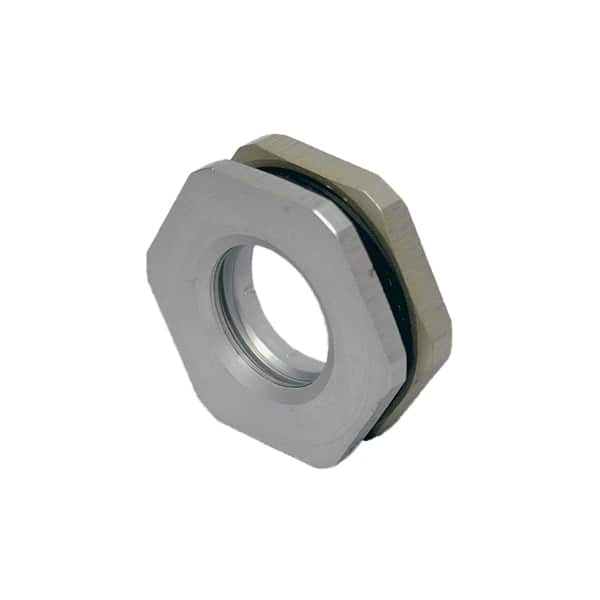

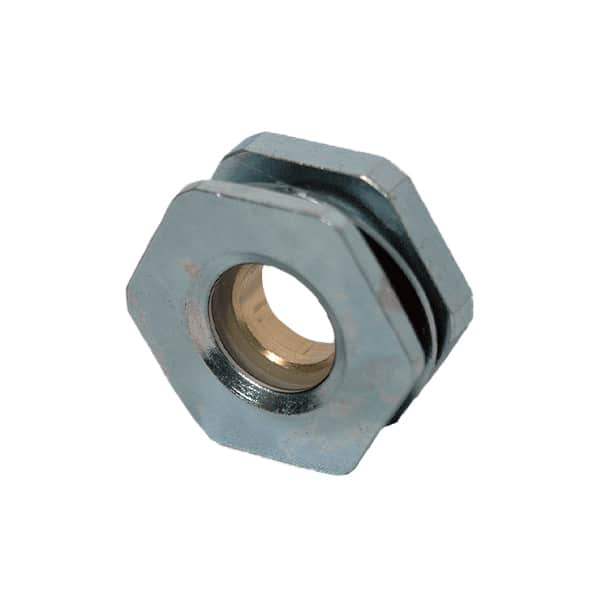

Observation ports are hexagonal nuts and gaskets with a clear viewing window, typically made of plastic. Observation ports may be installed in both rigid and flexible containers and may be applicable for some NEMA-rated enclosures.
Sizing & Specification
At this time, there are no applicable observation window specifications. However, most of these devices do meet the requirements of SAE AS26860, which governs humidity indication, except for the parts pertaining to the humidity indicating cards.
To get started, select the correct size for your observation port and choose between the different finishes available (e.g. carbon steel, stainless steel, or other materials) to suit your equipment and application.
At this time, AGM offers observation windows with the following dimensions:
- Viewing Diameter: 0.55 in (14 mm) or 1.0 in (25 mm)
- Mounting Hole: 1.05 in (26 mm) or 1.45 in (37 mm)
AGM observation windows are rated up to a 10 psi internal pressure.
Contact our team today for more information.
Benefits Of Using Observation Ports
The primary benefit of observation ports is that a viewing window provides for the quick and easy observation of a container or sealed enclosure’s contents without the need for opening the sealed container.
Industry Applications
Most customers install two observation windows; one to look through and one to shine a light into. Sometimes they are placed on opposite sides of the container so it is easy to see light coming in from the opposite side. If you can see the light, it means the container does not have a load in it.
Observation ports can be used to safely observe objects within sealed enclosures in basic storage transportation to more dangerous environments including hazardous material holding tanks, furnaces, water tanks, and more.
Custom Engineering Service
No two jobs are the same, why should your solution be? Work with AGM Engineering to get a solution specific to your challenge today.
FAQs
Yes, our engineering department has designed hundreds of modified and custom versions for previous customers. Contact us for more information.
Yes. We commonly supply special features such as these for many of our customers. Contact us for more information.
This thread is misleading because it actually has a maximum major diameter of 1.027”. It is commonly used on the small bung of a 55 gallon drum. The reason our humidity indicators have this thread is that they were initially used most commonly on 55 gallon drums.
