TA496 Observation Window

TA496 Observation Window

SKU TA496 Categories ,

Helpful Links

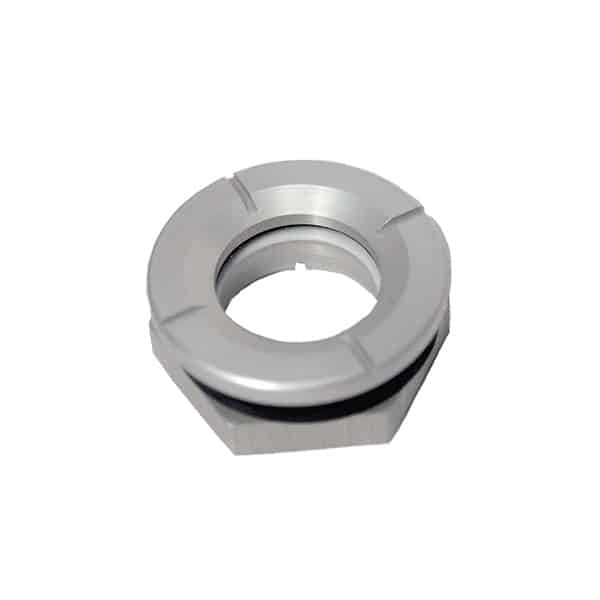

The TA496 Observation Window is made up of anodized aluminum and has a 1.0 inch (25 mm) diameter non-breakable plastic viewing window that allows the contents of the container to be readily observed, eliminating the cost of opening packages for inspection.

May be installed in flexible barriers through a 1.45 in. (37 mm) diameter hole. Nut and two gaskets are furnished. May also be installed in rigid containers through a 1.45 in. (37 mm) diameter hole by removing one gasket and reversing the nut.

Maximum Internal Pressure: 10 psi

Weight: 0.09 lbs (41 grams)

AGM’s TA496 Observation Window is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM’s Engineering department for more information.



TA496 Drawing

Additional information

Weight0.0000 lbs
Dimensions0.0000 × 0.0000 × 0.0000 in
Viewing Diameter

1.0 in (25 mm)

Mounting Hole Diameter

1.45 in (37 mm)

Internal Pressure Rating

10 psi

Window Material

Plastic

Weight

0.09 lbs (41 grams)

Flange Shape

Round

IP/NEMA Rating

This is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K and 13 enclosures, as well as I66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application.

Body Material

Aluminum

Body Finish

Anodized

Flange Gasket Material

IAW MIL-PRF-6855
