TA456 Observation Window
Helpful Links

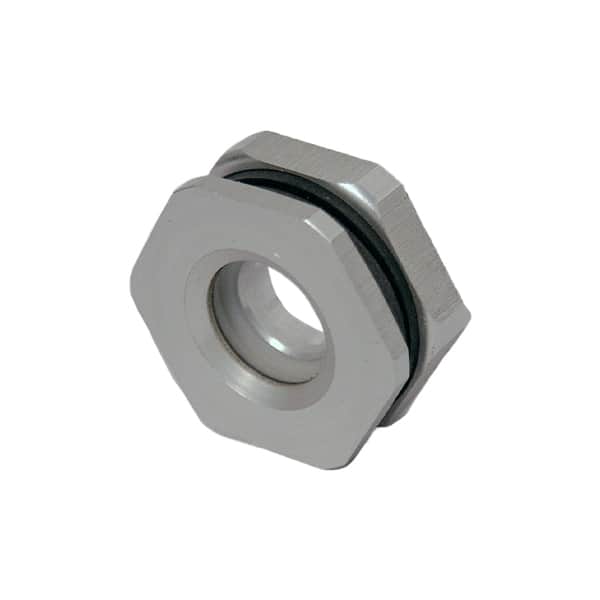

This is an anodized aluminum Observation Window. The TA456 Observation Window has a 0.55 in. (14 mm) diameter non-breakable plastic viewing window that allows the contents of the container to be readily observed, eliminating the cost of opening packages for inspection. Also accepts TA378-HC-MHI Maximum Humidity Indicator Element or any of the standard MIL-I-26860 Color-Change Discs.
Maximum Internal Pressure: 10 psi
Weight: 0.06 lbs (26 grams)
May be installed in flexible barriers through a 1.05 in. (26 mm) diameter hole. Nut and two gaskets are furnished. May also be installed in rigid containers through a 1.05 in. (26 mm) diameter hole by removing one gasket and reversing the nut. NSN # 8145-01-166-9684.
AGM’s TA456 Observation Window is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM’s Engineering department for more information.
Additional information
| Weight | 0.0000 lbs |
|---|---|
| Dimensions | 0.0000 × 0.0000 × 0.0000 in |
| Viewing Diameter | 0.55 in (14 mm) |
| Mounting Hole Diameter | 1.05 in (26 mm) |
| Internal Pressure Rating | 10 psi |
| Window Material | Plastic |
| Weight | 0.06 lbs (26 grams) |
| Flange Shape | Hex |
| IP/NEMA Rating | This is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K and 13 enclosures, as well as I66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. |
| Body Material | Aluminum |
| Body Finish | Anodized |
| Flange Gasket Material | IAW MIL-PRF-6855 |
Related products
-

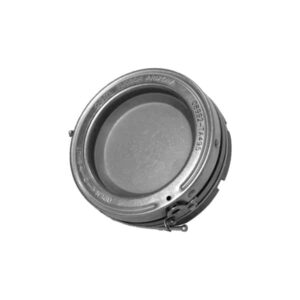

Access ports provide access to desiccant, data or accessory storage areas in containers without opening the container. -
