TA450 Observation Window

SKU: TA450 Categories: ,

Description

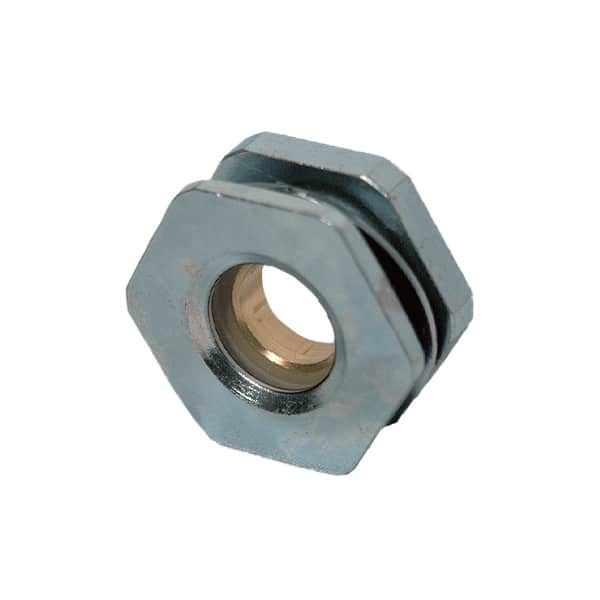

This is a zinc-plated brass Observation Window. The TA450 Observation Window has a 0.55 in. (14 mm) diameter non-breakable plastic viewing window that allows the contents of the container to be readily observed, eliminating the cost of opening packages for inspection. Also accepts TA378-HC-MHI Maximum Humidity Indicator Element or any of the standard MIL-I-26860 Color-Change Discs.

Maximum Internal Pressure: 10 psi

Weight: 0.16 lbs (71 grams)

AGM's TA450 Observation Window may be installed in flexible barriers through a 1.05 in. (26 mm) diameter hole. Nut and two gaskets are furnished. May also be installed in rigid containers through a 1.05 in. (26 mm) diameter hole by removing one gasket and reversing the nut.

TA450 is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM's Engineering department for more information.



TA450 Drawing

TA456 & TA450 Observation Window Drawing

Additional information

Viewing Diameter

0.55 in (14 mm)

Mounting Hole Diameter

1.05 in (26 mm)

Internal Pressure Rating

10 psi

Window Material

Plastic

Weight

0.16 lbs (71 grams)

Flange Shape

Hex

IP/NEMA Rating

This is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K and 13 enclosures, as well as I66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application.

Body Material

Brass

Body Finish

Zinc-Plated

Flange Gasket Material

IAW MIL-PRF-6855
