In-Line
Desiccators

In-Line Desiccators maintain low dew point temperatures in compressed air or process gas pipelines and reduce water vapor content to a safe level in systems with working pressures up to 60 psi.

How Do In-Line Desiccators Work?

Low dew point temperatures are maintained in compressed air or process gas pipelines up to 1/4″ outside diameter by fitting In-Line Desiccators to reduce water vapor content to a safe level in systems with working pressures up to 60 psi.

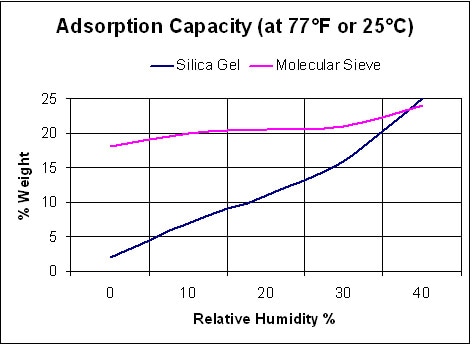

While primarily used to remove water vapor as the prime source of contamination, the selective adsorption of other components of the gas can be achieved by careful selection of the grade and pore size of the molecular sieves desiccant.

Various grades of filters may be fitted in the dry gas outlet side of the dryer to ensure that the gas is cleaned to a specified level before it re-enters the gas line. Particulate cleanliness to below 1µm can be maintained by using special filters.

Actual water vapor content must be measured wherever dew point temperature or maximum water vapor concentration is specified and necessitates the use of a line dryer. Fitting a color-change Humidity Indicator signals when the maximum safe water vapor concentration of 2,560 ppmV at STP (about 14°F [-10°C] dew point). An in-line dew point temperature alarm should be fitted if the safe level required is lower than 2,500 ppmV.

In-Line Desiccators F.A.Q.

Yes, as well as for most other compressed process gasses.

No, not unless you push the manual release button (only on those valves that have a manual release button). In automatic mode, they will equalize only to the level of the reseal pressure. That is, a TA333-05-05-R breather valve will only equalize to within 0.5 psid because below that the valve will be closed.

Units are available with pressure ratings as high as 60 psig.

Yes. These units are available filled with molecular sieve, silica gel, or alumina. However, Type 4A molecular sieve is by far the most commonly requested desiccant for these units. AGM carries a full line of desiccant products and can supply replacement desiccant for pipeline dryers.

Yes. The outlets on most units are filtered nominally to 25 microns, but finer filters are also available upon request.

Yes. However, some fittings might require the use of special adapters.

Yes. By simply unscrewing the inlet end fitting, the old spent desiccant may be poured out and fresh, new desiccant poured in. AGM carries a full line of desiccant products and can supply replacement desiccant for pipeline dryers.

Drop-in cartridges are not available for these units at this time, but may become available in the future.
