Activated Alumina

Clear
SKU ActivatedAlumina Categories , ,
AGM Part Number
Type
Size/Description
920100
F-200
1/8″ diameter
920101
F-200
3/16″ diameter
920106
F-200
1/4″ diameter

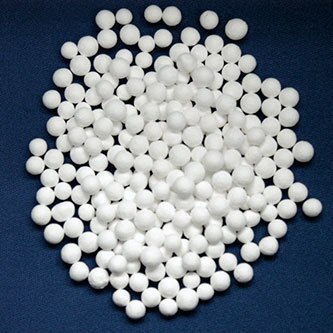

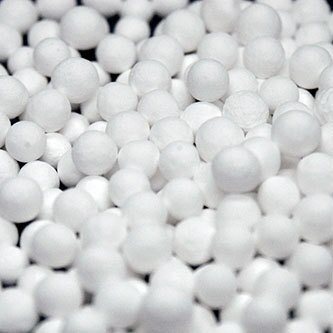

Activated Alumina is comprised of a synthetically-produced aluminum oxide (A12O3) in a smooth spherical form with high-crush strength. It is highly porous and can have a high surface area greater than 300 m2/g. It is an excellent desiccant for liquids and gases, and can achieve dew points from -40°F (-40°C) depending on the operating conditions and the design of the dryer. It will adsorb many molecules to some degree, but will preferentially adsorb the molecules with the highest polarity.

Activated Alumina works as a desiccant through adsorption, so as air passes through the desiccant beads, the water in the air sticks to it and becomes trapped, enabling the air that passes through the activated alumina filter to become dried out. Even if immersed in a liquid, the beads will not fall apart or soften.

Activated Alumina can be restored to its original adsorption efficiency by heating the desiccant to any temperature from 350° to 600°F (177° to 316°C). When the  desiccant is heated as described above, the water stored in it is released, which enables the Activated Alumina filters to be reused over and over again.

AGM offers Activated Alumina in three different sizes of beads: 1/8” (2‐5 mm), 3/16” (4‐8 mm) and 1/4” (5‐10 mm). The 1/8” (2‐5 mm) bead size is most commonly used in regenerative dryers.

Typical applications:

  • compressed air dryers
  • water purification to remove fluoride, arsenic and selenium
  • removal of degradation acids from transformer oils, lubricating oils, and refrigerants
  • natural gas drying
  • liquefied natural gas drying

Activated Alumina is extremely effective for drying gases and is very stable physically and chemically, even in high temperatures and corrosive environments. It is most frequently used for compressed air dryers, because of its cost effectiveness in relation to the other types of desiccant. With its high surface area, high moisture capacity, and high crush strength, the desiccant beads can easily withstand the saturated conditions that are found within an air compressor.

Additional information

Weight 55.0000 lbs
Dimensions 0.0000 × 0.0000 × 0.0000 in
Bead Size

, ,

Type

Non-Indicating

Standard Packaging

1 Sack

Container Weight

50 lbs (23 kg)

Desiccant Type

Activated Alumina

Color

White

Product Specs – 1/8in

Product Specs – 3/16in

Product Specs – 1/4in

Safety Data Sheet
