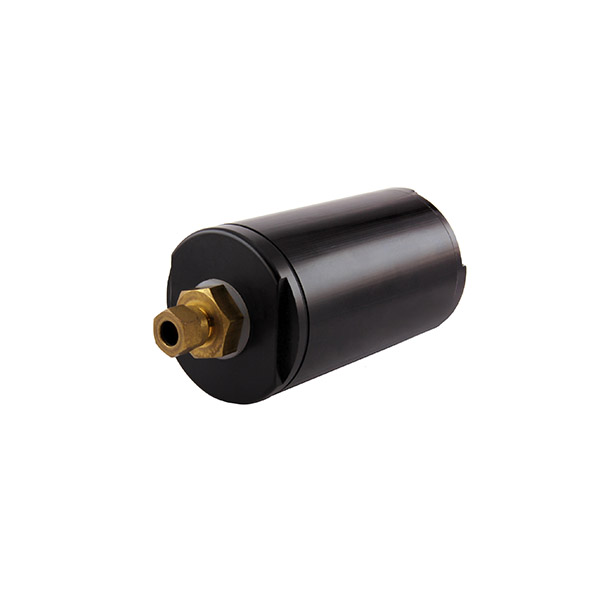

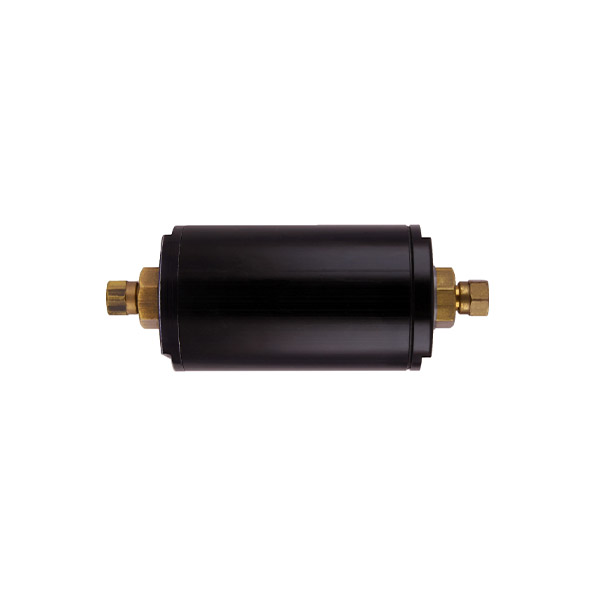

BL/D4123 Series In-Line Desiccators
The BL/D4123 In-Line Desiccator can accommodate flow rates up to 4 liters per minute and is rated for a maximum pressure of 60 psi (4 bar). This desiccator houses 4A molecular sieve and has a humidity indicator to indicate when the desiccant has become saturated. Additionally the BL/D4123 In-Line Desiccator has a 25 micron (nominal) outlet filter.
The inlet air must be clean and free from liquid water.
The BL/D4123 Series of In-Line Desiccators are refillable and AGM distributes molecular sieve desiccant, which can be used as a replacement for these types of desiccators or pipeline dryers.
BL/D4123 Series | |||||
Part Number | Desiccant | Desiccant Capacity (grams) | Tube Length (Dim A), IN (MM) | Tube OD, IN (MM) | Approx. Life * at 4L/min, 40%RH and 25°C |
BL/D4123/01 | Molecular Sieve | 60 | 3.47 (85.0) | 1.88 (47.6) | 4.5 hours |
BL/D4123/02 | Molecular Sieve | 100 | 4.53 (115.0) | 1.88 (47.6) | 7.5 hours |
BL/D4123/03 | Molecular Sieve | 200 | 8.46 (215.0) | 1.88 (47.6) | 15 hours |
* Please contact AGM’s Engineering Department to determine approximate life based on specific inlet conditions and flow rates.
Additional information
| Weight | 0.0000 lbs |
|---|---|
| Dimensions | 0.0000 × 0.0000 × 0.0000 in |
| Desiccant Capacity | 60 grams, 100 grams, 200 grams |
| Desiccant Type | Molecular Sieve |
| Type | Non-Indicating |
