KX1130 Shipboard Mounting System
Loading...

KX1130 Shipboard Mounting System

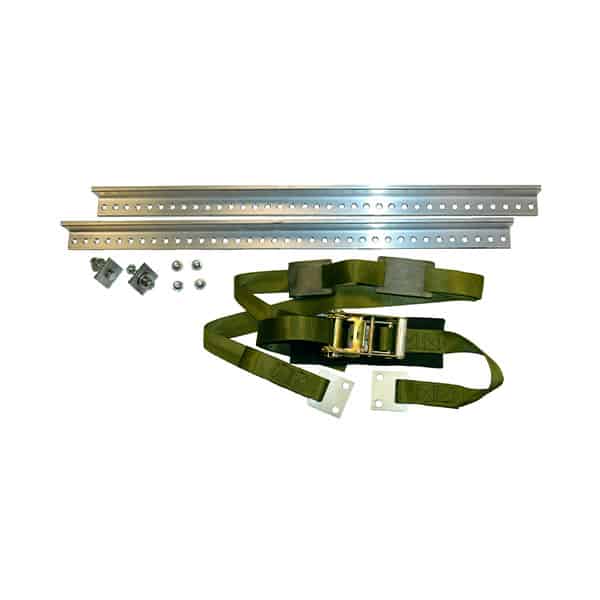

AGM’s KX1130 shipboard mounting system has 3 strap assemblies consisting of straps, ratchets, strap anchors, and corner protectors. Two 36″ long aluminum mounting angles and all necessary bolts are included.

Mounting is accomplished by cutting the angles or tracks to the required length. The deck is drilled and the mounting hardware is then bolted securely to the deck. The angles or tracks can also be bolted directly into the Flex Deck anchoring system. In applications where penetrating the deck is impractical or prohibited, the angles or tracks may be welded in place.

The KX1130 shipboard mounting system is an aluminum track version that has been tested and qualified to MIL-S-901D Shock Test, Medium Weight and MIL-STD-167-1A Vibration for Shipboard, Hull-Mounted.

Download

KX1130 Drawing (PDF)

Installation Instructions

Additional information

Weight 0.0000 lbs
Dimensions 0.0000 × 0.0000 × 0.0000 in
Angle Tracks

Aluminum

Corner Protector

Rubber

Strap Assembly Length

132" (11 feet)

Color

Olive Drab

Angle Track Finish

Bare

Bolt Finish

Zinc, Cadmium, or Black Oxide Plated

Washer Finish

Zinc Plate

Webbing

Polyester Type V, A-A-55242, Class 2

Plate, Fastener, Washer & Bolt Materials

Carbon Steel

Weight

27 lbs

Complies With

KX1130 aluminum track version has been tested and qualified to MIL-S-901D Shock Test, Medium Weight, and MIL-STD-167-1A Vibration for Shipboard, Hull-Mounted.

Ratchet Fastener Finish

Zinc Plate Bronze Chromate

Strap End Plate Finish

Zinc Plate Clear Chromate

Drawing

Installation Instructions
