KX1125 Shipboard Mounting System

Description

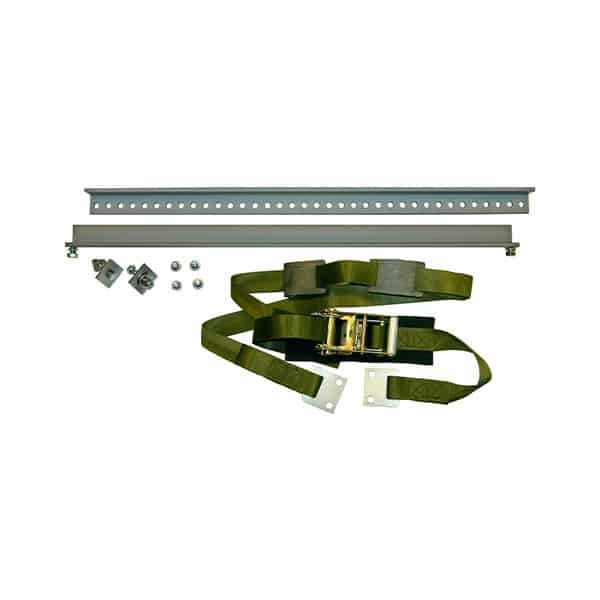

AGM's KX1125 shipboard mounting system has 3 strap assemblies consisting of straps, ratchets, strap anchors, and corner protectors. Two 36" long steel mounting angles and all necessary bolts are included.

Mounting is accomplished by cutting the angles or tracks to the required length. The deck is drilled and the mounting hardware is then bolted securely to the deck. The angles or tracks can also be bolted directly into the Flex Deck anchoring system. In applications where penetrating the deck is impractical or prohibited, the angles or tracks may be welded in place.

The KX1125 shipboard mounting system is a steel track version that has been tested and qualified to MIL-S-901D Shock Test, Medium Weight and MIL-STD-167-1A Vibration for Shipboard, Hull-Mounted.

Download

KX1125 Drawing (PDF)

Installation Instructions

Additional information

Angle Tracks

Carbon Steel

Corner Protector

Rubber

Bolt Finish

Zinc, Cadmium, or Black Oxide Plated

Color

Olive Drab

Weight

44 lbs

Strap Assembly Length

132" (11 feet)

Washer Finish

Zinc Plate

Webbing

Polyester Type V, A-A-55242, Class 2

Strap End Plate Finish

Zinc Plate Clear Chromate

Angle Track Finish

Commercial Primer

Complies With

KX1125 steel track version has been tested and qualified to MIL-S-901D Shock Test, Medium Weight, and MIL-STD-167-1A Vibration for Shipboard, Hull-Mounted.

Plate, Fastener, Washer & Bolt Materials

Carbon Steel

Ratchet Fastener Finish

Zinc Plate Bronze Chromate
