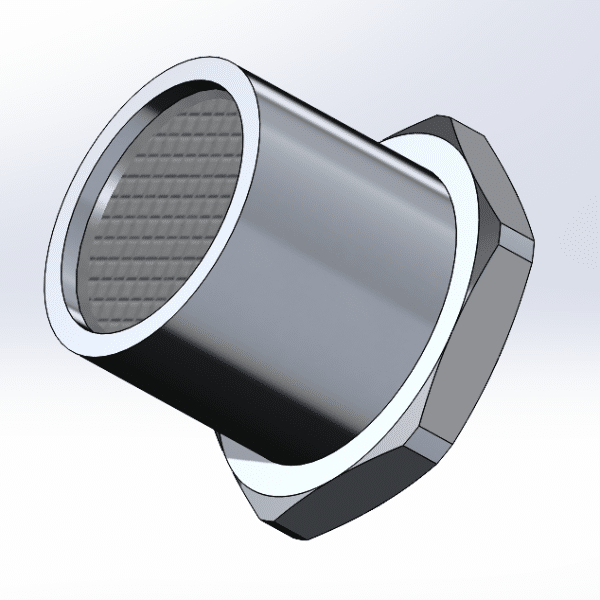

Shielded Nut Assembly 225015

Description

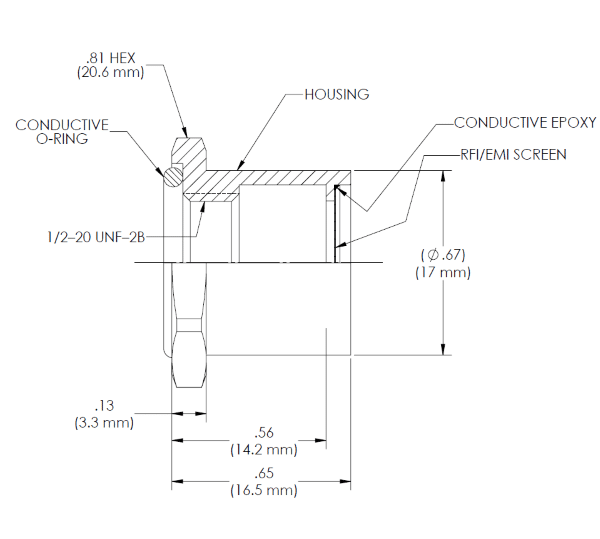

The 225015 Shielded Nut Assembly provides RFI/EMI shielding for a TA225 style breather valve. Air that passes through the valve also passes through the 100X100 mesh, Type 304 stainless steel wire cloth of the Shielded Nut Assembly. This cloth is secured to the MIL-DTL-5541, Type II, Class 3 conversion coated aluminum nut housing with silver-filled conductive epoxy to form a Faraday cage which protects the interior of the container from unwanted radio frequency and electromagnetic radiation.

The 225015 Shielded Nut Assembly comes standard with a silicone base conductive gasket* that is filled with silver-coated aluminum particles. The surface of the enclosure or case that this conductive gasket contacts with when the Shielded Nut Assembly is installed must be conductive.

Custom RFI/EMI Shielded Nut Assemblies offering higher attenuation through the use of drilled holes or honeycombed aluminum are also available. Similar nut assemblies are available for AGM's TA238-R, TA292-R, TA294-R, TA330, TA333-R, TA770-R, TA790, TA820, TA796-P, and TA797 series valves as well.

*Conductive gaskets utilizing other base materials are available upon request.
