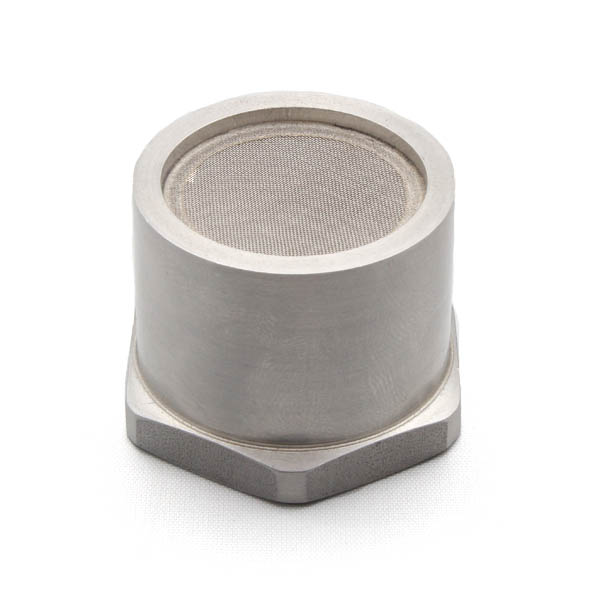

Shielded Nut Assembly 333006
SKU: 333006

Shielded Nut Assembly 333006


The 333006 Shielded Nut Assembly provides RFI/EMI shielding for TA330 and TA333-R style breather valves. Air that passes through the valve also passes through the 100 by 100 mesh Type 304 stainless steel cloth of the Shielded Nut Assembly. This cloth is secured to the MIL-DTL-5541, Type II, Class 3 conversion coated aluminum nut housing with silver-filled conductive epoxy to form a Faraday cage which protects the interior of the container from unwanted radio frequency and electromagnetic radiation.

The 333006 Shielded Nut Assembly comes standard with a silicone base conductive gasket* that is filled with silver-coated aluminum particles. The surface of the enclosure or case that this conductive gasket contacts when the Shielded Nut Assembly is installed must be conductive.

Custom RFI/EMI Shielded Nut Assemblies offering higher attenuation through the use of drilled holes or honeycombed aluminum are also available. Similar products are available for AGM's TA770-RTA292-R, and TA238 series valves as well.

*Conductive gasket utilizing other base materials are available upon request.

333006 Shielded Nut Assembly Drawing
