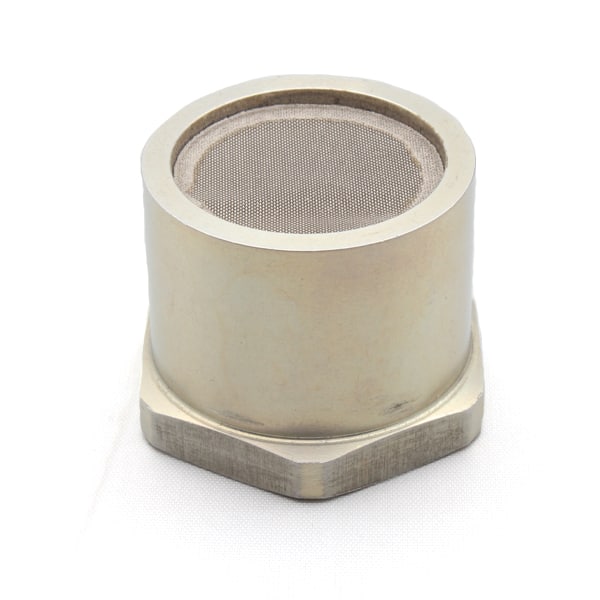

Shielded Nut Assembly 292126

Description

The 292126 Shielded Nut Assembly provides RFI/EMI shielding for a TA292-R and TA294-R style breather valve. Air that passes through the valve also passes through the 100 by 100 mesh Type 304 stainless steel cloth of the Shielded Nut Assembly. This cloth is secured to the aluminum housing with silver-filled conductive epoxy to form a Faraday cage which protects the interior of the container from unwanted radio frequency and electromagnetic radiation. The housing’s non-conductive surfaces are anodized.

The 292126 Shielded Nut Assembly comes standard with a silicone based conductive o-ring* that is filled with silver-coated aluminum particles. The surface of the enclosure or case that this conductive gasket contacts when the Shielded Nut Assembly is installed must be conductive.

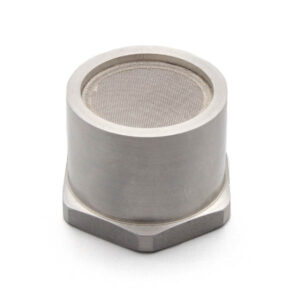

Custom RFI/EMI Shielded Nut Assemblies offering higher attenuation through the use of drilled holes or honeycombed aluminum are also available. Similar products are available for AGM's TA770-R, TA333-R, and TA238 series valves as well.

*Conductive gaskets utilizing other base materials are available upon request.

Shielded Nut Assembly 292126 Drawing

Additional information

Weight2.5 lbs
Dimensions1 × 1 × 1 in
