NEPS 1000 Pumped Purge Systems

Clear
SKU neps-pumped Categories ,
Nitrogen Enhanced Purging Systems Selection Guide
Air Source
Embedded Dry Air
NEPS Type
Standard
Voltage
24 Volt
110 Volt
240 Volt
100-230 VAC/24 VDC
Part Number
NP24-AGM
NP110-AGM
NP240-AGM
NPDV-AGM

The NEPS 1000 Pumped purge systems were developed for field service applications where it is impractical or burdensome to provide a dry air source such as bottled nitrogen. The NEPS 1000 Pumped systems utilize an internal pump and a refillable cartridge containing 1 kilogram of molecular sieve desiccant to create dry air for the purging operation.

Our Nitrogen Enhanced Purge System (NEPS) technology is a unique, easy-to-use, single-point purge system that pressurizes equipment or enclosures with dry gas to remove moisture from the airspace and from the hygroscopic materials contained in the equipment. This provides a more thorough purge and more efficient use of dry gas, as compared to a traditional dual-point or through purge when the dry gas will typically follow the path of least resistance from the entry to exit point of the equipment. The NEPS provides automatic operation with minimal user input. The embedded dew point sensor measures and displays the dew point of the air exiting the equipment during the depressurization cycle. This quantification of the purge operation ensures the effectiveness of the purge and prevents unnecessary dry gas expenditure. Additional features include adjustable pressure settings, equipment leak test and source gas dryness test.

Most dual-point purging is done without any way to quantify the results. Quite often, the purge removes the moisture from the airspace, but is not performed in a manner to ensure the removal of the majority of the moisture, which is contained in the hygroscopic materials in the equipment. The NEPS eliminates this guesswork and provides an efficient and effective purge which will reduce the amount of dry gas expended, extend the life of the desiccant (if used), reduce maintenance cycles and provide greater protection to your equipment.

The NEPS 1000 Pumped range of products are suitable for use with sealed electro-optical equipment, containers and enclosures. See Filler Valves for information on filler/purge valves for use with the NEPS.

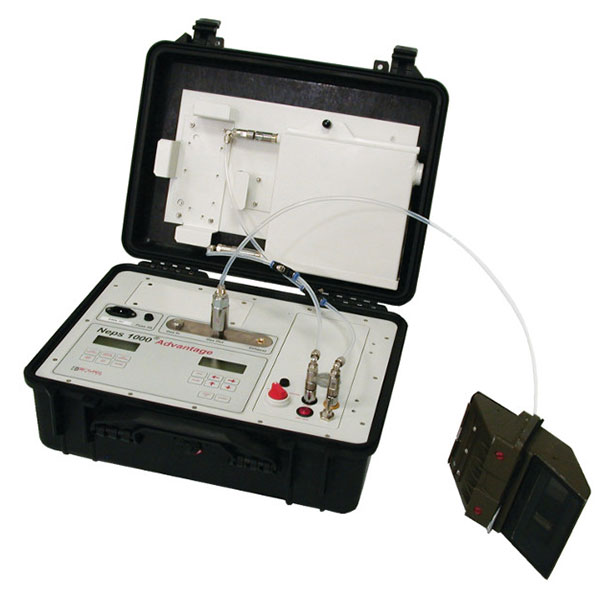

The NEPS 1000 Pumped models are mounted in a portable transit case. The control panel includes 1/4″ NPT quick disconnects for inlet, outlet and exhaust ports and digital displays for dew point and pressure readings.

Models available for use with 110 volt, 240 volt and 24 volt power source. A dual voltage model is also available for use with this range of power sources. Power cord, connection tubing and tubing flow restrictors included.



FEATURES

Pumped Models Dual Voltage Model
  • Fully Self-Contained for Portable Use
  • User-Programmable
  • Easy-to-Use Single Connection Purging
  • Automatic Purging Operation
  • Easy-to-Use Single Connection Purging
  • Automatic Purging Operation
  • Dew Point and Pressure Readout
  • Dewpointstat Gas Control
  • Dew Point and Pressure Readout
  • Dewpointstat Gas Control
  • Remote Dew Point Sensing Option
  • Dew Point Display from +20°C to -80°C
  • Remote Dew Point Sensing Option
  • Dew Point Display from +20°C to -80°C
  • Portable and Robust
  • Maintainable Online
  • Robust
  • Maintainable Online
  • User-Programmable
  • NATO Approved
  • NATO Approved






TECHNICAL SPECIFICATIONS

Pumped Models
Selectable Pressure Ranges 10.3 Kpa (1.5 psi) Data Output Dew Point 0-5 Volts
17.2 Kpa (2.5 psi) Power 100-230 volt 50 hz – 60 hz
34.4 Kpa (5.0 psi) Power Consumption 3 amps
Display Range Pressure 0 to 34.4 Kpa (0-5.0 psi) Dimensions (mm) 490W x 425D x 190H (closed)
Display Range Dew Point (Selectable) Weight 15 kg (33 lbs.)
+20°C to -80°C dew point Ingress Protection IP54 (closed case)
+68°F to -94°C dew point Operating Temp -10°C to +50°C (14°F to 122°F)
Resolution 0.1°C dew point Storage Temp -50°C to +65°C (-58°F to 149°F)
Accuracy ±2°C dew point Flow Rate (typical) 20 liters per minute (0.71 CFM)
Data Output Pressure 0-5 Volts Optional Extras See NEPS Accessories
Nato Stock NSN  Order Code
NP240 4440-99-912-6628 NP240-AGM
NP110 4440-99-404-2677 NP110-AGM
NP24 6625-99-821-5023 NP24-AGM



Dual Voltage Model
Usable Gases Air, Nitrogen, SF6, Helium, Argon Power 1 100-230 volt 50 hz – 60 hz
Selectable Pressure Ranges 10.3 Kpa (1.5 psi) Power Consumption 3 amps
17.2 Kpa (2.5 psi) Power 2 24 VDC
34.4 Kpa (5.0 psi) Power Consumption 3 amps
Display Range Pressure 0 to 34.4 Kpa (0-5.0 psi) Dimensions (mm) 490W x 425D x 190H (closed)
Display Range Dew Point (Selectable) Weight 10 kg (23 lbs.)
+20°C to -80°C dew point Ingress Protection IP54 (closed case)
+68°F to -94°C dew point Operating Temp -10°C to +50°C (14°F to 122°F)
Resolution 0.1°C dew point Storage Temp -50°C to +65°C (-58°F to 149°F)
Accuracy ±2°C dew point Flow Rate (typical) 20 liters per minute (0.71 CFM)
Data Output Pressure 0-5 Volts Optional Extras See NEPS Accessories
Data Output Dew Point 0-5 Volts Order Code NPDV-AGM

Additional information

Voltage

24 Volt, 110 Volt, 240 Volt, 100-230 VAC/24 VDC

Enclosure

Standard

Air Source

Embedded Dry Air

Catalog – Pumped

Manual – Pumped

Catalog – Dual Voltage

Manual – Dual Voltage
