TA396 Humidity Indicator Plug
SKU: TA396
TA396 Humidity Indicator Plug
Description
Meets MS18013-1

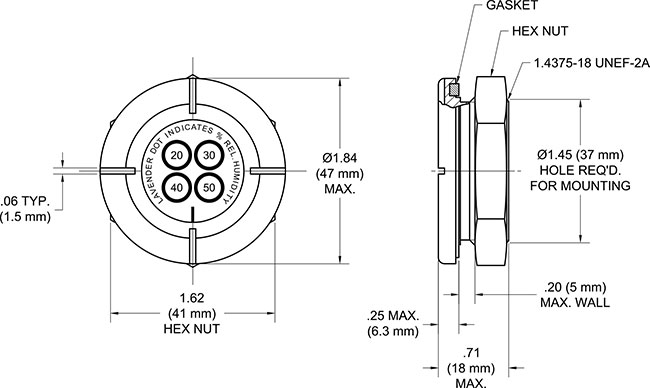

This is a larger-sized clear anodized aluminum Humidity Indicator Plug. It installs into a rigid container through a 1.45 in. (37 mm) diameter hole. Lock nut and gasket are furnished. Comes with a 20-30-40-50% disc, which is field replaceable with a 1.188 in. by .050 in. (30 mm x 1 mm) flat steel blade. NSN # 6685-00-989-5312.
Additional color-change discs are available:
|
Circle Card Part Number
|
Standard Item
|
Indicated Humidity Percentage
|
Segment Type
|
|
Yes
|
20, 30, 40, 50
|
Spot
|
|
|
TA346-HC-2345P
|
No
|
20, 30, 40, 50
|
Pie
|
|
TA346-HC-123P
|
No
|
10, 20, 30
|
Pie
|
|
TA346-HC-234P
|
No
|
20, 30, 40
|
Pie
|
|
TA346-HC-345P
|
No
|
30, 40, 50
|
Pie
|
|
TA346-HC-3456P
|
No
|
30, 40, 50, 60
|
Pie
|
|
TA346-HC-246P
|
No
|
20, 40, 60
|
Pie
|
|
No
|
30, 50, 70
|
Pie
|
|
|
TA346-HC-40
|
No
|
40
|
Spot
|
|
TA346-HC-60
|
No
|
60
|
Spot
|
Weight: 0.09 lbs. (41 grams)
Maximum Internal Pressure: 10 psi
Recommended Installation Torque: 30 - 40 in. - lbs. (3.4 - 4.5 N·m)
Maximum wall thickness: 0.20 in. (5 mm)
TA396 is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM's Engineering department for more information.
Also available with black anodize finish as TA398-2345S. Meets MS18013-2.
Additional Information
| Maximum Wall Thickness | 0.20 in (5 mm) |
|---|---|
| Window Diameter | 0.995 in (25.3 mm) |
| External Gasket Material | IAW MIL-PRF-6855 |
| Weight | 0.09 lbs (41 grams) |
| Maximum Internal Pressure | 10 psi |
| IP/NEMA Rating | This is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K and 13 enclosures, as well as I66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. |
| Body Finish | Anodized, Clear |
| Body Material | Aluminum |
| Mounting Hole Diameter | 1.45 in (37 mm) |
| Internal O-Ring Material | IAW MIL-PRF-6855 |
| Recommended Installation Torque | 30 – 40 in. – lbs. (3.4 – 4.5 N·m) |
| Complies With | MS18013-1 |
| Indicated Humidity Percentage | 20%, 30%, 40%, 50%, 10%, 20%, 30%, 20%, 30%, 40%, 30%, 40%, 50%, 30%, 40%, 50%, 60%, 20%, 40%, 60%, 30%, 50%, 70%, 40%, 60% |
| Segment Type | Pie, Spot |
