Drum Vent Dryers

Clear
SKU DrumVentDryer Categories ,

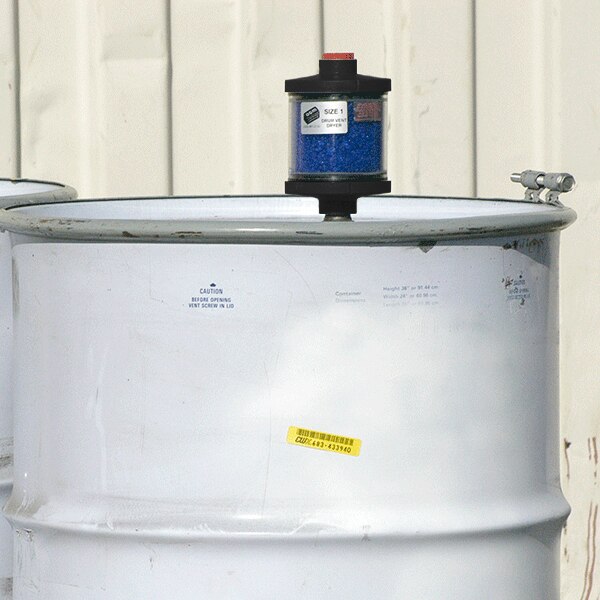

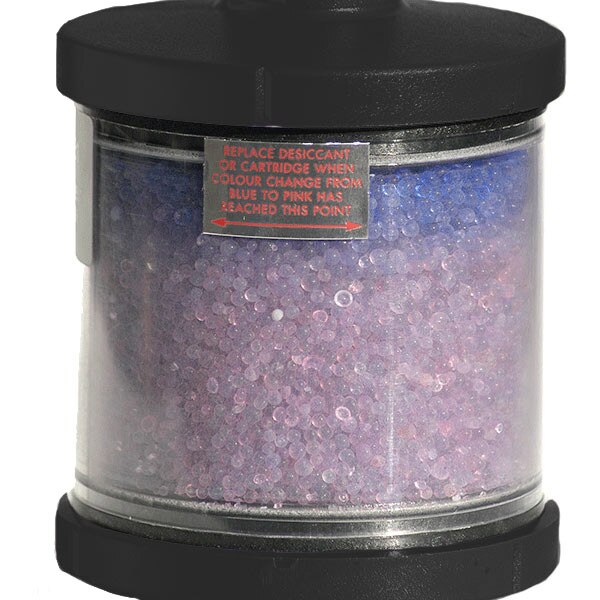

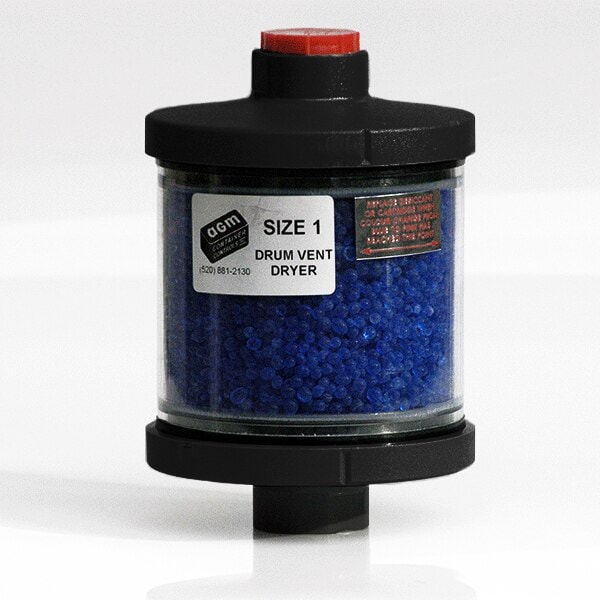

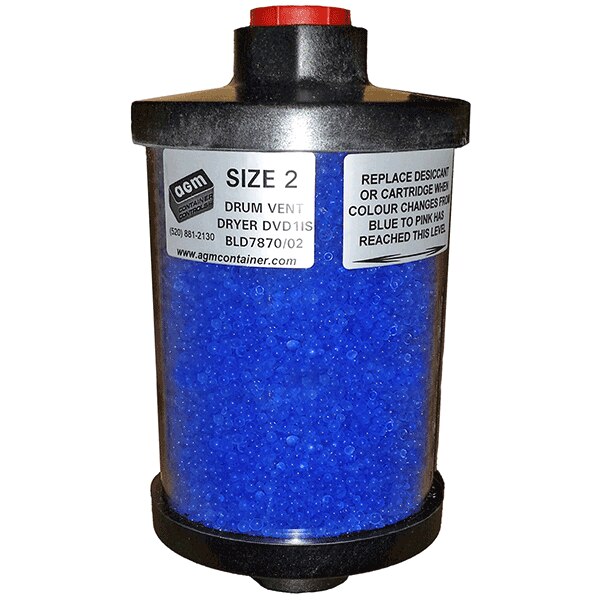

Drum Desiccant Breathers, also known as Drum Vent Dryers, prevent contamination of chemical products (powders, liquids and semi-solids) in 55-gallon drums during storage and use. AGM’s Drum Vent Dryers are quick and easy to install. The units are reusable — saturated color change silica gel desiccant is easily replaced. Drum Desiccant Breathers can also be filled with orange silica gel (acceptable for use in the European Union), molecular sieve, activated alumina and activated carbon.

Selection Guide
Std. Duty
Industrial
Heavy Duty Industrial
Std. Duty
Ultra Clean
Heavy Duty
Ultra Clean
Part No.
BL/D7870/01
BL/D7870/02
BL/D7548/01
BL/D7548/02
Desiccant Charge
1.32 lbs.
2.65 lbs.
1.32 lbs.
2.65 lbs.
Adsorption Capacity
3.17 oz. H2O
6.35 oz. H2O
2.12 oz. H2O
4.23 oz. H2O
Air Drying Capacity
211.9 ft3
423.8 ft3
141.3 ft3
282.5 ft3
Maximum Flow Rate
1.06 ft3/minute at 50 microns nominal
1.06 ft3/minute at 0.5 microns nominal
Operating Temperature
-4°F to 131°F (-20°C to 55°C)
-40°F to 176°F (-40°C to 80°C)
Housing Materials
UV Resistant Polycarbonate & PVC
UV Resistant Polycarbonate
Mounting Thread
3/4″ NPSM (Includes 3/4-14 NPT adapter to connect Drum Desiccant Breather to drum) Also fits 2″ NPT adapter.

NOTE: Standard Duty versions have a nominal filtration rating of 25 microns while the Ultra Clean versions have a nominal filtration rating of 0.5 microns, suitable to protect against atmospheric particulate contaminants.

Drum Desiccant Breather

Additional information

Weight0.0000 lbs
Dimensions0.0000 × 0.0000 × 0.0000 in
Dryer Type

, , ,

Desiccant Type

Silica Gel

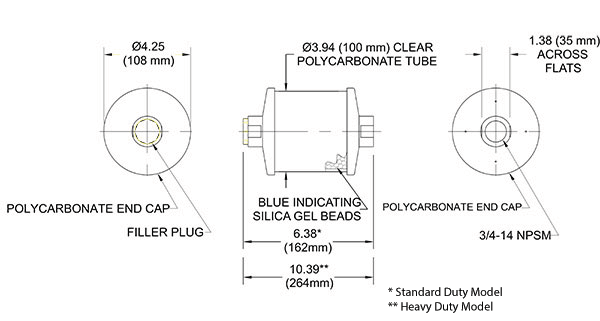

Drawing – BL/D7870

Drawing – BL/D7548

Installation Guide

Air Flow Animation
