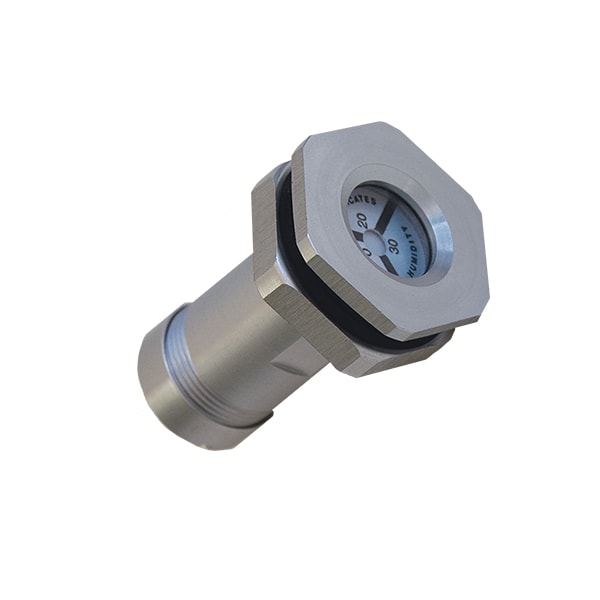

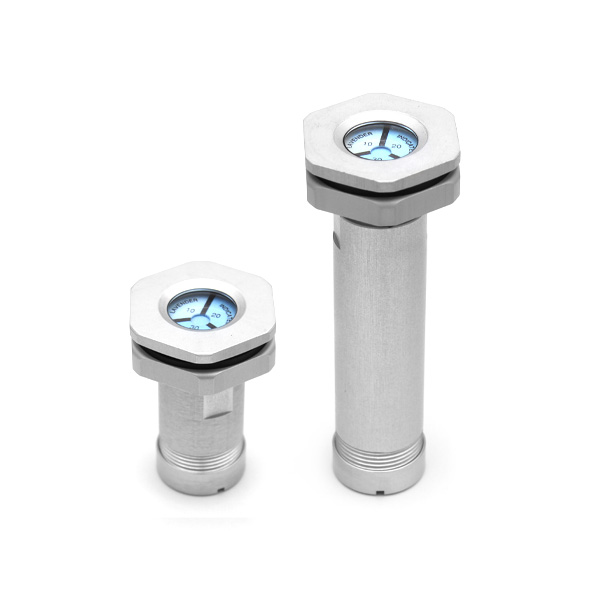

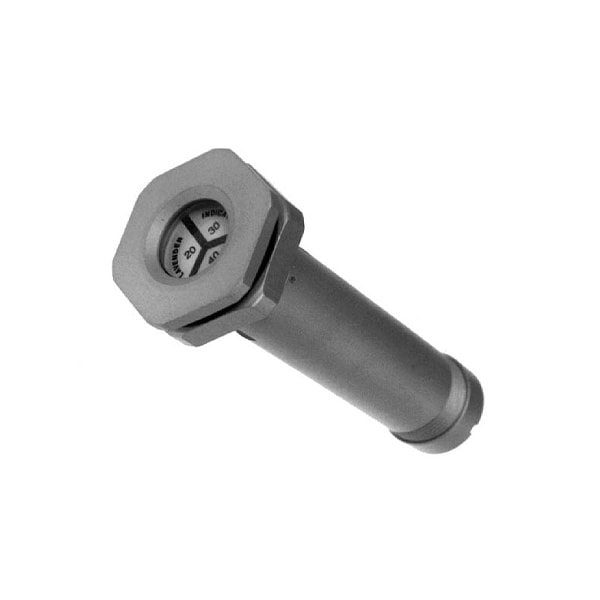

TA362 & TA363 Desiccators with Humidity Indicators

SKU TA362 & TA363 Categories , ,

The TA362 & TA363 Desiccators were designed primarily for use in small containers and incorporate two separate Humidity Indicator elements. The outer element monitors the relative humidity (RH) of the container atmosphere; the center element monitors the condition of the desiccant itself. The TA362 & TA363 Desiccators are refillable by removing the endcaps.

The type of desiccant, as well as the type of indicator element desired is specified by designating part number suffixes as shown in the chart below.

The TA362 contains about .25 units (6 grams) of desiccant. The TA363 contains .6 units (14 grams) of desiccant. These desiccators mount through a 1.05″ (26 mm) diameter hole or into a mounting flange, 658800.

MaterialsAluminum Alloys; Gasket is AMS-R-6855, Class II, Grade 60; Hex nut standard
FinishClear Anodized
Torque Valve for Hex Nut30 in. – lbs. (3.4 N•m)
Maximum Internal Pressure10 psi
WeightTA362: 0.11 lbs. (50 grams); TA363: 0.17 lbs. (77 grams)

The TA363 and TA362 are appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as I66/IP67 enclosures. These items may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM’s Engineering department for more information.

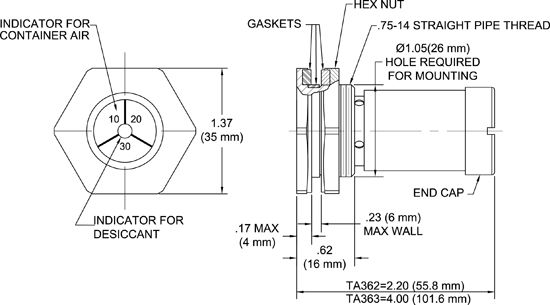

TA362 & TA363 Desiccators Drawing

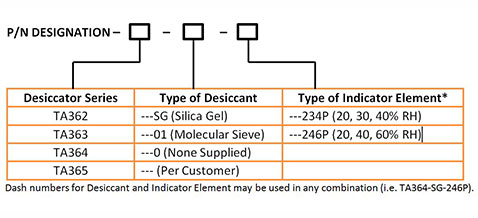

TA362 & TA363 Desiccators Part Number Designation Table

DESICCANT REFILLS
Desiccator Series
Silica Gel
Molecular Sieve
TA362
BD920005-6G
BD920514-6G
TA363
BD920005-14G
BD920514-14G
TA364
BD920005-6G
BD920514-6G
TA365
BD920005-14G
BD920514-14G

Additional information

Weight0.0000 lbs
Dimensions0.0000 × 0.0000 × 0.0000 in
Maximum Internal Pressure

10 psi

Torque Valve for Hex Nut

30 in. – lbs. (3.4 N•m)

Materials

Aluminum Alloy, Gasket-AMS-R-6855, Class II, Grade 60, Hex nut standard

Finish

Clear Anodize

Weight

TA362: 0.11 lbs. (50 grams), TA363: 0.17 lbs. (77 grams)

IP/NEMA Rating

The TA363 and TA362 are appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as I66/IP67 enclosures.

3D Model – TA362

3D Model – TA363
