Meets AS26860 Type II

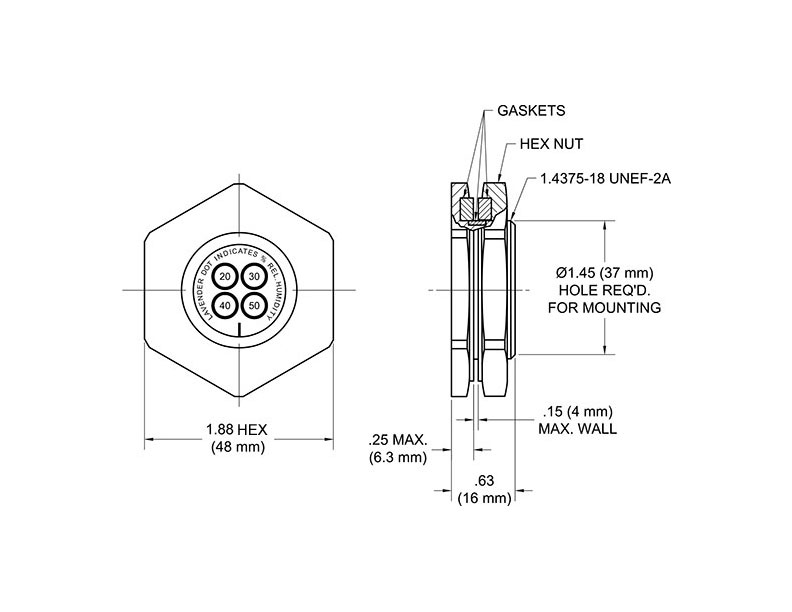

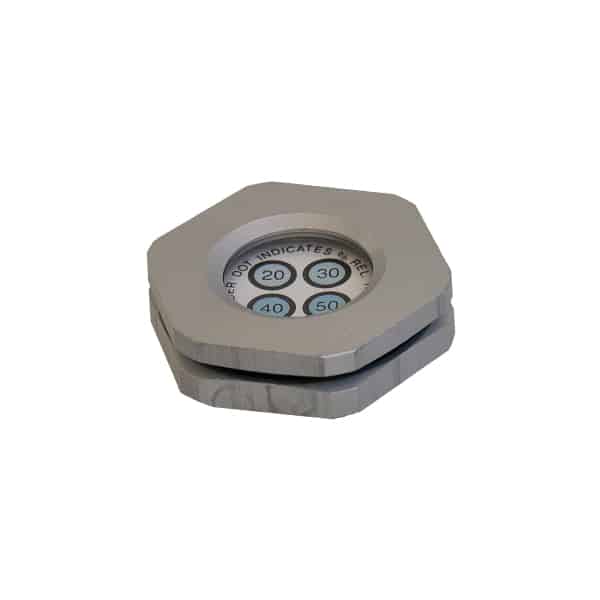

This is a larger-sized clear anodized aluminum Humidity Indicator Plug. It may be installed in a flexible barrier through a 1.45 in. (37 mm) diameter hole. Nut and two gaskets are furnished. It may also be installed in a 1.45 in. (37 mm) diameter hole in a rigid container by removing one gasket and reversing the nut.
Furnished with a 20-30-40-50% disc as a standard. Other discs can be supplied on special request.
Circle Card Part Number | Standard Item | Indicated Humidity Percentage | Segment Type |
Yes | 20, 30, 40, 50 | Spot | |
TA346-HC-2345P | No | 20, 30, 40, 50 | Pie |
TA346-HC-123P | No | 10, 20, 30 | Pie |
TA346-HC-234P | No | 20, 30, 40 | Pie |
TA346-HC-345P | No | 30, 40, 50 | Pie |
TA346-HC-3456P | No | 30, 40, 50, 60 | Pie |
TA346-HC-246P | No | 20, 40, 60 | Pie |
No | 30, 50, 70 | Pie | |
TA346-HC-40 | No | 40 | Spot |
TA346-HC-60 | No | 60 | Spot |
Humidity discs can be replaced in the field with a 0.875 in. (22 mm) hex key wrench.
Weight: 0.11 lbs. (50 grams)
Maximum Internal Pressure: 10 psi
Recommended Installation Torque: 30 – 40 in. – lbs. (3.4 – 4.5 N·m)
Maximum wall thickness: 0.15 in. (4 mm)
TA346 is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM’s Engineering department for more information.
Additional information
Weight | 0.0000 lbs |
---|---|
Dimensions | 0.0000 × 0.0000 × 0.0000 in |
Complies WIth | SAE AS26860 Type II |
Recommended Installation Torque | 30 – 40 in. – lbs. (3.4 – 4.5 N·m) |
External Gasket Material | IAW MIL-PRF-6855 |
Body Finish | Anodized, Clear |
Window Diameter | 1.00 in (25.4 mm) |
Body Material | Aluminum |
Mounting Hole Diameter | 1.45 in (37 mm) |
Maximum Wall Thickness | 0.15 in (4 mm) |
IP/NEMA Rating | The TA346-2345S is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as I66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. |
Internal O-Ring Material | IAW MIL-PRF-6855 |
Weight | 0.11 lbs (50 grams) |
Maximum Internal Pressure | 10 psi |
Indicated Humidity Percentage | 20%, 30%, 40%, 50%, 10%, 20%, 30%, 20%, 30%, 40%, 30%, 40%, 50%, 30%, 40%, 50%, 60%, 20%, 40%, 60%, 30%, 50%, 70%, 40%, 60% |
Segment Type | Pie, Spot |
