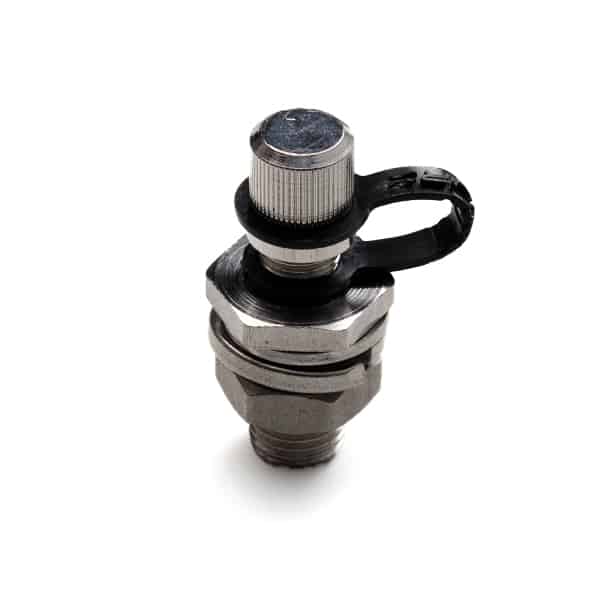

Filler Valve TA322-SS

SKU: TA322-SS Categories: , ,

Description

The TA322-SS Filler Valve is a stainless steel version of the TA322 with a tethered cap assembly and provides a tire valve core in a lightweight minimum length housing.

This valve may be used to purge or pressurize containers. See NEPS 1000 to learn more about AGM's nitrogen and dry gas purge systems.

MaterialsHousing, Cap & Hardware - Passivated Stainless Steel
Mounting RequirementsO-ring, washer, lockwasher, & nut, provided with each valve.
Mounting Hole Diameter0.385 ± 0.010 (9.75 ± 0.25 mm)
Installation Torque10-15 in. - lbs. (0.9-1.1 N•m)
Maximum Wall Thickness0.30 (8 mm)
Weight0.0857 lbs. (38.9 grams)

For threaded boss installation: 0.375-24 UNF-2B

The TA322-SS is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM's Engineering department for more information.

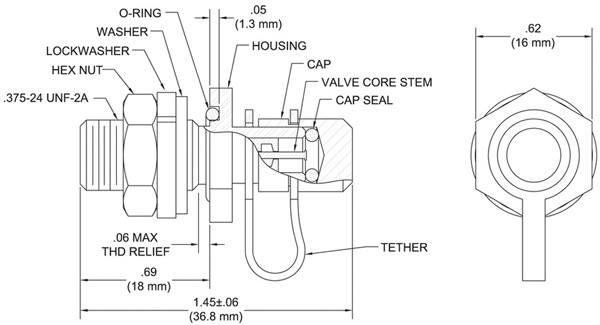

TA322-SS Filler Valve Drawing

Additional information

Materials

Housing, Cap & Hardware-Passivated Stainless Steel

Mounting Requirements

Hex Nut, O-Ring, Washer & Lockwasher are provided with each valve

Mounting Hole Diameter

0.385 ± 0.010 (9.75 ± 0.25 mm)

Maximum Wall Thickness

0.30 in. (8 mm)

Installation Torque

10-15 in. - lbs. (0.9-1.1 N•m)

Weight

0.0857 lbs. (38.9 grams)
