Filler Valve Adapter Assembly
Filler Valve Adapter Assembly
SKU: 322072

Filler Valve Adapter Assembly

Categories

,

Description

AGM's 322072 is an adapter for the TA322 Filler Valve. The adapter assembly is provided with a 6-1/2' length of 3/16"-ID (1/4"-OD) tubing secured by a crimped ferrule.

Connector and Ferrule Brass, Unplated
Tubing PTFE

To install, thread the knurled portion of the adapter onto the outer portion of the filler valve. The knurled portion of the adapter rotates relative to the barbed portion. When fully installed onto the filler valve, this item will hold the filler valve in the open position.

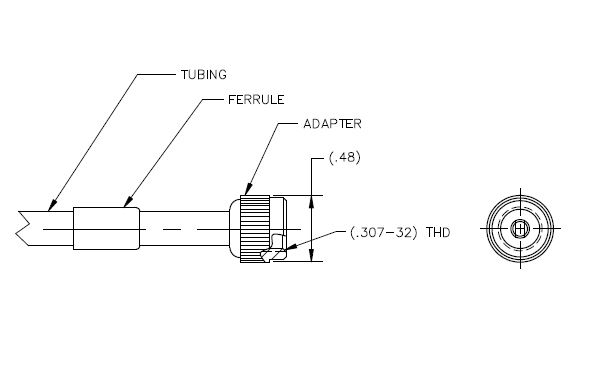

322072 Drawing

AGM's 322072 is an Filler Valve Adapter Assembly for the TA322 Filler Valve. The adapter assembly is provided with a 6-1/2' length of 3/16"-ID (1/4"-OD) tubing secured by a crimped ferrule.

Tech Sheets

Drawing
