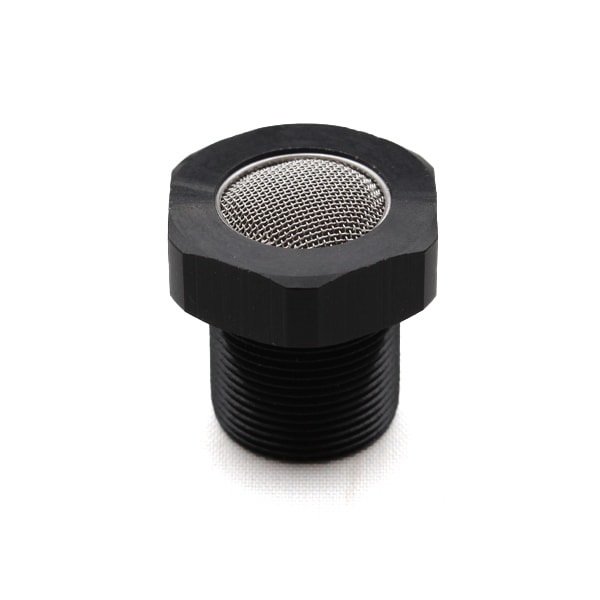

Breather Valve TA296

Description

The TA296 breather valve was designed to meet the need for a low-cost, one-way, pressure relief valve. Standard settings range from 0.5 psid to 3.0 psid reseal or cracking pressure.

The TA296 is tamper-proof and requires no field maintenance.

MaterialsHousing & Hex - Aluminum Alloy; Seal & O-Ring - Buna N Rubber; Washer - Acetal
FinishHousing & Hex - Black Anodize
Mounting RequirementsNut, washer & O-Ring, provided with each valve
Mounting Hole Diameter0.58 ± 0.010 (14.7 ± 0.2 mm)
Installation Torque20-25 in-lbs. (2.2-2.8 Nm)
Maximum Wall Thickness0.290 (7 mm)
Weight0.066 lbs. (30 grams)

For threaded boss installation: 9/16-32 UNF-3B; no counterbore requirement.

Contact AGM's Engineering department for information on NEMA and IP ratings.

TA296 Drawing

Additional information

Materials

Housing & Hex Nut-Aluminum Alloy, Seal & O-Ring-Buna N Rubber, Washer-Acetal

Finish

Housing & Hex Nut-Black Anodize

Mounting Requirements

O-Ring, Washer, Hex Nut are provided with each valve

Mounting Hole Diameter

0.58 ± 0.010 (14.7 ± 0.2 mm)

Maximum Wall Thickness

0.290 in. (7 mm)

Installation Torque

20-25 in. - lbs. (2.2-2.8 N-m)

Weight

0.066 lbs. (30 grams)
