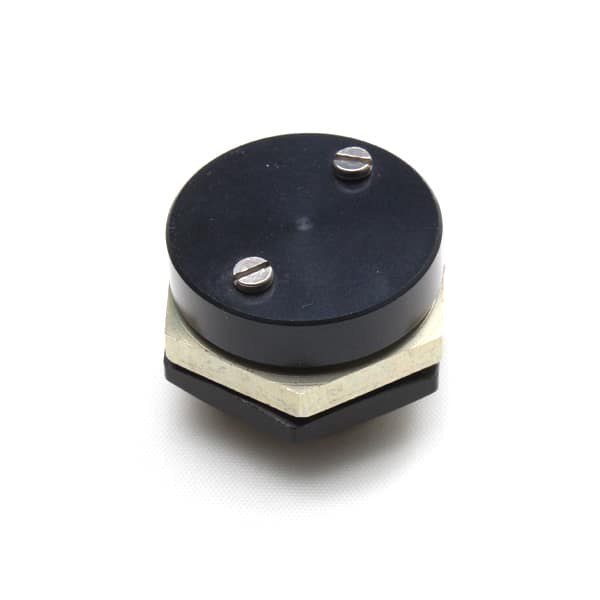

Breather Valve TA291

Description

The TA291 Breather Valve, a weather shielded version of AGM's time tested TA292-R Breather Valve, was designed to meet the need for a weather shielded, low cost, two-way valve for use on transit cases and similar applications up to 4 cubic feet in volume.  The valve has separate and distinct settings for both pressure and vacuum relief. It has a flow rate of 0.5 SCFM at a pressure of 1.5 psi to 2.0 psi above the valve setting. Standard settings range from 0.5 psid to 3.0 psid r eseal pressure.

The TA291 Breather Valve requires no field maintenance. Corrosion-resistant materials are used throughout. The valve seal is made of silicone rubber. Each valve comes complete with a nut and o-ring, and is intended for small cases that require a low profile valve.

The conversion coated housing allows for use of a conductive o-ring for minimal RFI shielding. For higher energy RFI shielding, AGM's standard style RFI nuts are available.

MaterialsHousing & Hex Nut - Aluminum Alloy, O-Ring - per MS28775-018
FinishBlack anodize cover, conversion coated housing
Installation Torque25 in. - lbs. (3.0 N•m)
Weight0.02 lbs. (8.4 grams)

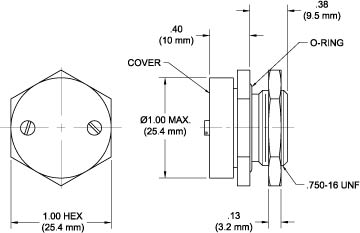

TA291 Breather Valve drawing



PRESSURE SIDE (FLOW OUT)
VACUUM SIDE (FLOW IN)
Dash No.
Reseal Pressure *
Flow Rate *
Dash No.
Reseal Pressure *
Flow Rate *
-05
0.5 psid
0.5 SCFM† @ 2.0 psid
-05
0.5 psid
0.5 SCFM† @ 2.0 psid
-10
1.0 psid
0.5 SCFM† @ 2.5 psid
-10
1.0 psid
0.5 SCFM† @ 2.5 psid
-15
1.5 psid
0.5 SCFM† @ 3.0 psid
-15
1.5 psid
0.5 SCFM† @ 3.0 psid
-20
2.0 psid
0.5 SCFM† @ 3.5 psid
-20
2.0 psid
0.5 SCFM† @ 3.5 psid
-25
2.5 psid
0.5 SCFM† @ 4.5 psid
-25
2.5 psid
0.5 SCFM† @ 4.5 psid
-30
3.0 psid
0.5 SCFM† @ 5.0 psid
-30
3.0 psid
0.5 SCFM† @ 5.0 psid

*To convert to metric equivalent (millibars) multiply by 69
†To convert metric equivalent (liters/sec) multiply by 0.472
Dash numbers for the Pressure and Vacuum sides may be used in any combination (i.e. TA294-05-15-R). Before making drawings of these valves, contact AGM for part numbers to be used.

Additional information

Materials

Housing & Hex Nut-Aluminum Alloy, O-Ring-per MS28775-018

Finish

Black Anodize cover, conversion coated housing

Installation Torque

25 in. - lbs. (3.0 N-m)

Weight

0.02 lbs. (8.4 grams)
