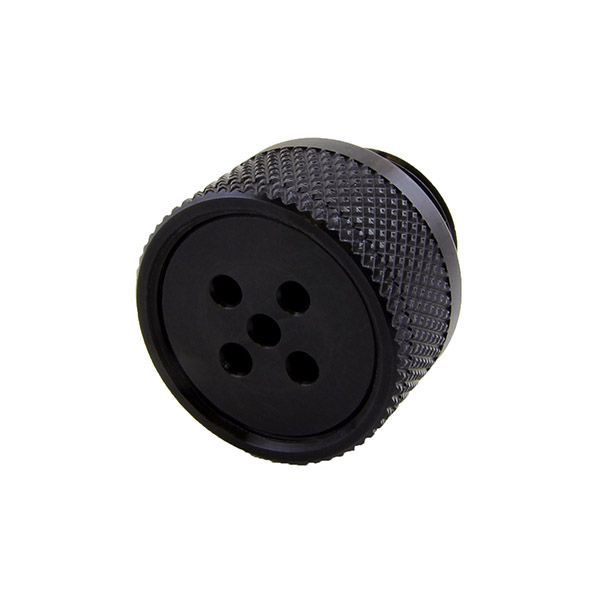

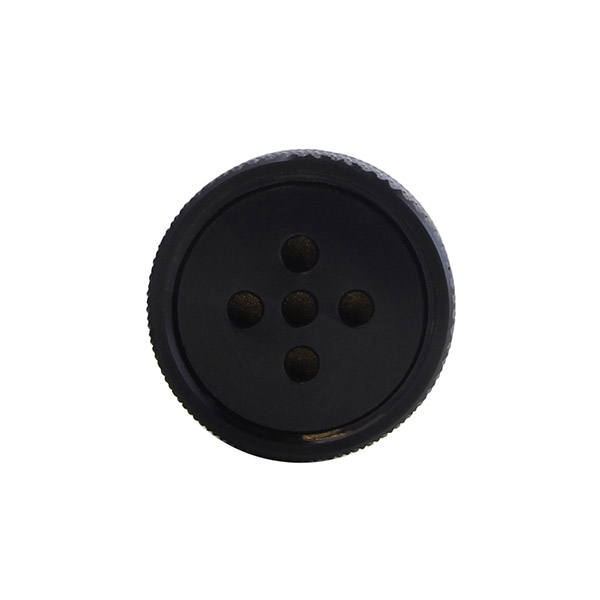

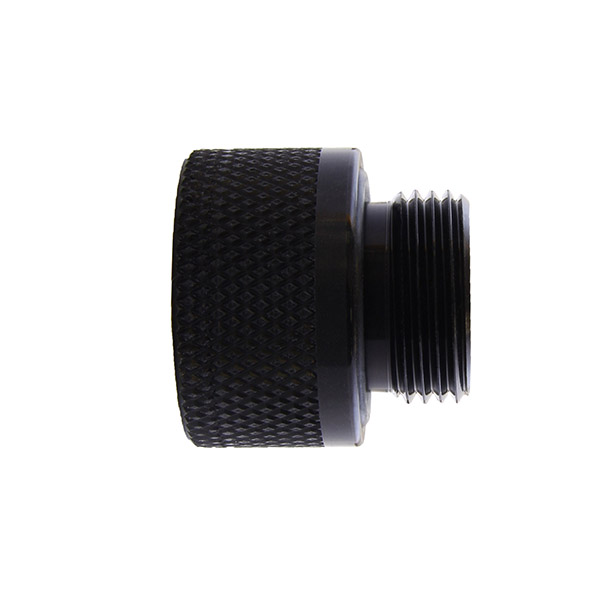

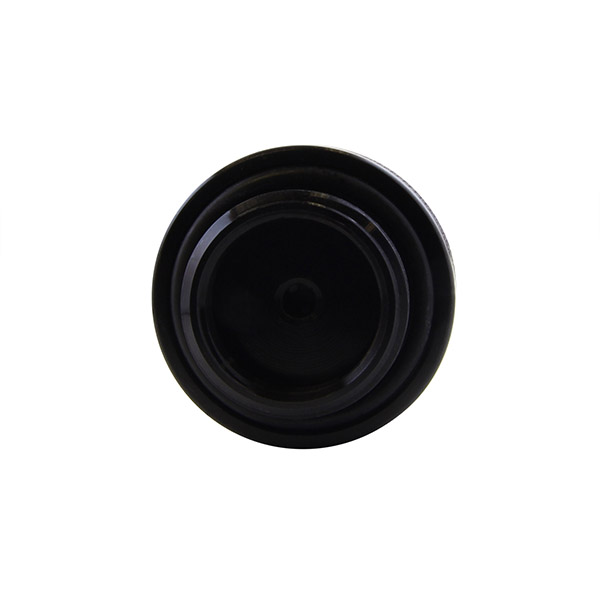

TA248-2 Immersion Proof Breather
Loading...

TA248-2 Immersion Proof Breather

The TA248-2 Immersion Proof Breather is similar to the TA248-1, and can withstand immersion in water to a depth of 1 meter.

Part No.: TA248-2

Mounting: Into Threaded Boss

Material: Aluminum Alloy

O-Ring: EPDM

The TA248-2 is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 4X, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM’s Engineering department for more information.

TA248-2 Immersion Proof Breather Drawing

Additional information

Weight 0.0000 lbs
Dimensions 0.0000 × 0.0000 × 0.0000 in
Mounting

Into Threaded Boss

Pressure

1.4 psi

Housing Material

Aluminum Alloy

IP/NEMA Rating

NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures

Filtration

1 micron

Internal O-Ring Material

EPDM

Threads

M16x1-6g

Weight

27 grams

Immersion Depth

1 meter
