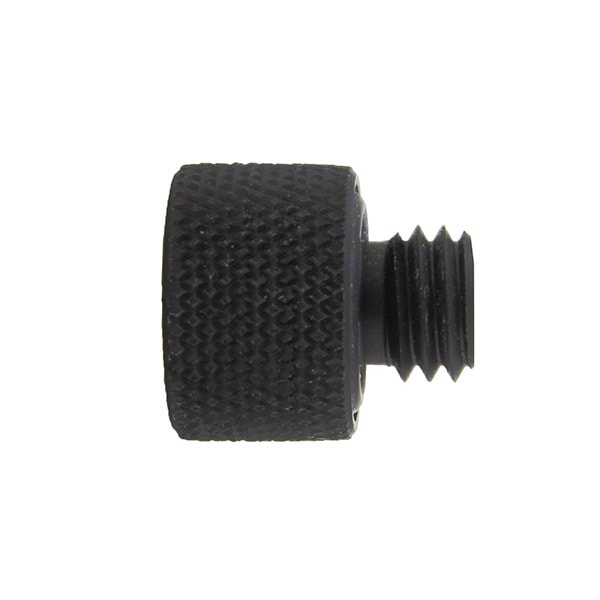

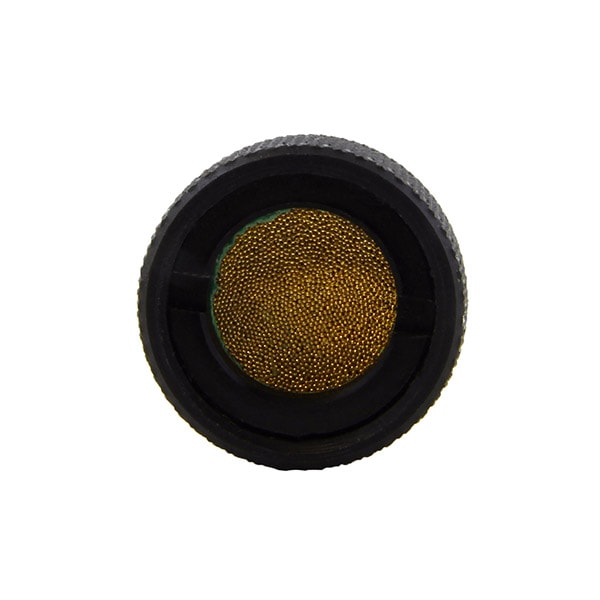

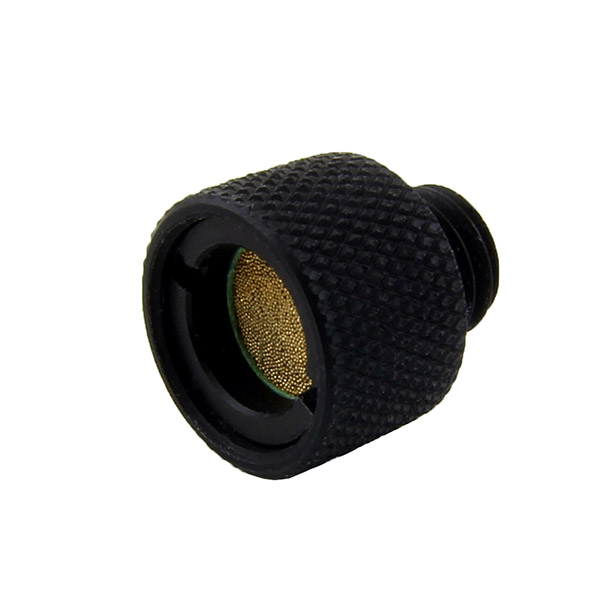

TA248-1 Immersion Proof Breather

SKU: TA248-1 Categories: ,

Description

The TA248-1 Immersion Proof Breather will withstand immersion in water to a depth of 1 meter for 30 minutes without any water ingress. The maximum temperature difference between the water and breather is  15° C.

Material: Aluminum alloy, black anodize

Weight: 3.2 grams

The TA248-1 is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM's Engineering department for more information.



TA248-1 Immersion Breather Drawing

Additional information

Housing Material

Aluminum Alloy, Black Anodize

Internal O-Ring Material

EPDM, Nitrile

Pressure

1.4 psi

Mounting

Into Threaded Boss

Filtration

1 micron

Immersion Depth

1 meter

Weight

3.2 grams

Threads

M8x1.25-6g

IP/NEMA Rating

NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures.
