5″ Access Ports
SKU: 5-access-ports
5″ Access Ports
Description
| Part Number | Cover Hole Diameter | Clear Opening Diameter | Cover Diameter | Mounting Hole Diameter | Weight |
| TA595 | None | 4.90" (124 mm) | 6.10" (155 mm) | 5.52" (140 mm) | 1.55 lbs (703 grams) |
| TA595-3 | 1.050" (26 mm) | 4.90" (124 mm) | 6.10" (155 mm) | 5.52" (140 mm) | 1.54 lbs (699 grams) |
| TA595-4 | 1.265" (32 mm) | 4.90" (124 mm) | 6.10" (155 mm) | 5.52" (140 mm) | 1.55 lbs (703 grams) |
| TA595-5 | 2.015" (52 mm) | 4.90" (124 mm) | 6.10" (155 mm) | 5.52" (140 mm) | 1.51 lbs (685 grams) |
AGM's 5" Access Ports (TA595 series) provide access to desiccant, data, accessory storage areas or for diagnostic testing of contents in containers, eliminating the labor of opening the container and reducing the exposure of the contents to hostile environments. In addition, they can be used as temporary through-holes for cabling and tubing. This larger version of our time-tested TA495 Access Ports have a clear opening of 4.80" (122 mm) diameter and is installed through a 5.52" (140 mm) diameter hole. Gasket, washer and mounting nut are furnished.
Designed for mounting on a smooth, flat surface; may not seal tightly if surface is curved, domed or too rough.

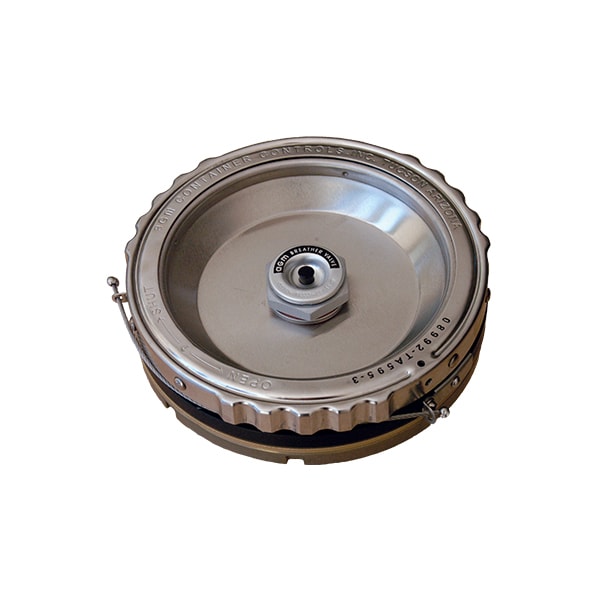

The TA595-3 has a 1.050" (26 mm) diameter hole in cover for mounting Series TA238, TA240-R, TA330, TA333-R or TA340-R Two-Way Pressure Relief Valves. (Order valves separately)

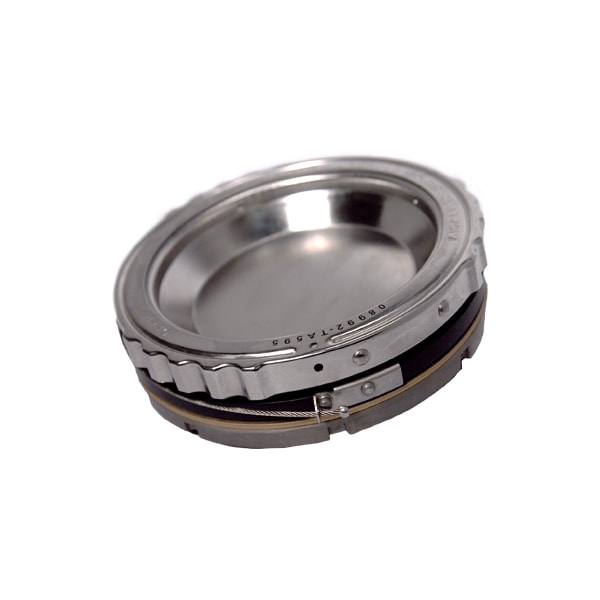

The TA595-4 has a 1.265 in (32 mm) diameter hole in cover for mounting a TA440 Breather Valve. (Order valves separately)

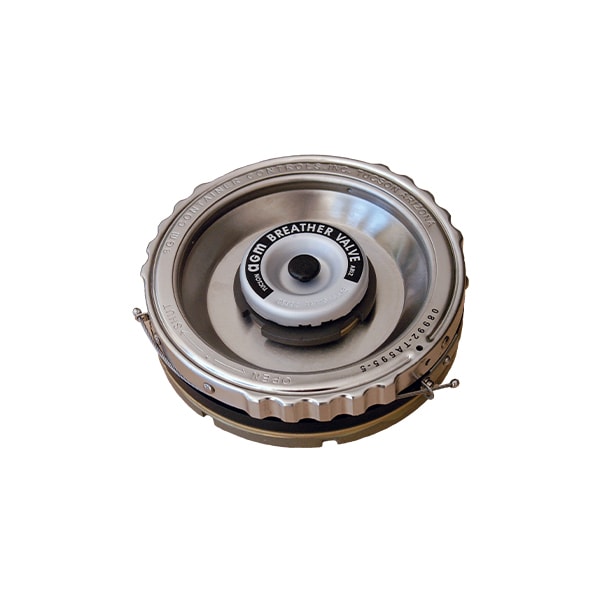

The TA595-5 has a 2.015" (52 mm) diameter hole in cover for mounting a TA770-R Two-Way Pressure Relief Valve. (Order valves separately)
Tamper-Proof: Holes through cover and flange of Access Port are provided for safety wiring and an inspector's seal.
Materials and Finishes: Housing hard anodized, other aluminum alloys conversion coated per MIL-DTL-5541. Stainless steel cover, passivated. Buna-N o-ring and gasket.
Torque Value for Spanner Nut: 200 lb. in. (22.50 N•m)
Rated Pressure: 2.5 PSID
Required mounting hole diameter: 5.520 + 0.030 / - 0.015 inches

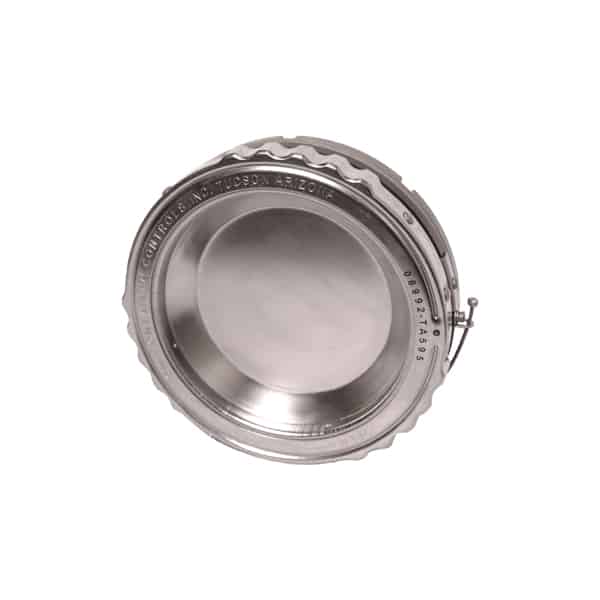

The TA595 (solid cover)is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as I66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM's Engineering department for more information.
Additional Information
| Clear Opening Diameter | 4.90" (124 mm) |
|---|---|
| Cover Hole Diameter | 1.050" (26 mm), 1.265" (32 mm), 2.015" (52 mm), None |
| Internal O-Ring Material | Buna-N |
| Recommended Torque for Spanner Nut | 200 lb. in. (22.50 N•m) |
| Body Finish | Hard Anodized |
| Mounting Hole Diameter | 5.52" (140 mm) |
| Cover Material | Stainless Steel |
| External Gasket Material | Buna-N |
| Body Materia | Aluminum Alloys |
| Cover Diameter | 6.10" (127 mm) |
| IP/NEMA Rating | This is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as I66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. |
| Rated Pressure | 2.5 PSID |
| Cover Finish | Passivated |
| Cable Material | Stainless Steel |
