Humi-Valve® TA440-R
SKU: TA440-R

Humi-Valve® TA440-R

Description

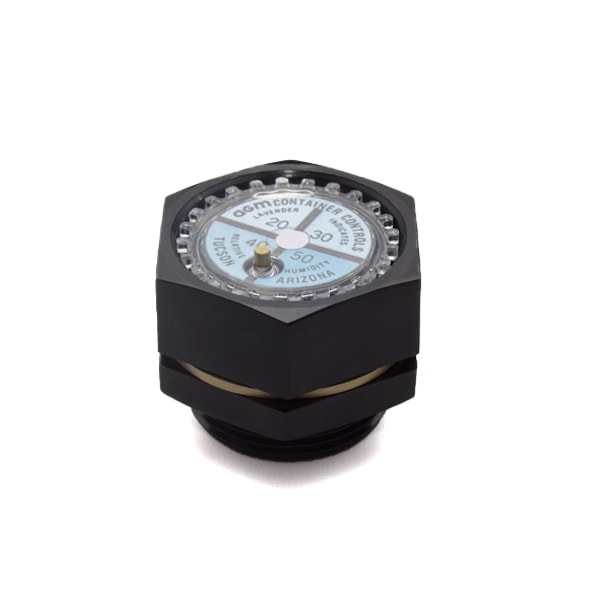

The TA440-R HUMI-VALVE® incorporates a Humidity Indicator and a two-way Breather Valve all in the same housing, thereby saving the cost of an additional hole in the case.  The valve has separate and distinct settings for both pressure and vacuum relief. It has a flow rate of 4.0 SCFM at 1.5 psi above the valve setting. Standard settings are from 0.5 psid to 3.0 psid reseal pressure. The lower the setting, the higher the flow rate, making this valve suitable for transit cases and similar applications up to 33 cubic feet in volume.

There is a separate path to the Humidity Indicator. The TA440-R Breather Valve is lightweight, rugged, tamper-proof and requires no field maintenance. Corrosion- resistant materials are used throughout. The valve seal is made of silicone rubber. A manual release push button is standard on all TA440-R Breather Valves. It is used to equalize residual pressure or vacuum differentials in order to make opening the container easier. A gasket, washer and hex nut are provided with each valve.

Materials Body & Hex Nut - Black Polycarbonate Plastic; Washer - Aluminum Alloy
Materials (Cont.) Humidity Indicator Housing - High Strength Plastic; Gasket - per AMS-R-6855, Class II, Grade 60
Mounting Requirements Gasket, nut & washer, provided with each valve*
Mounting Hole Diameter 1.265 ± 0.015 (32 ± 0.3 mm)
Installation Torque 30-40 in. - lbs. (3.4-4.5 N•m)
Maximum Wall Thickness 0.38 (10 mm)
Weight 0.09 lbs. (40 grams)

*For threaded boss installation: 1.250-16 UN-2B; no counterbore requirement

Contact AGM's Engineering department for information on NEMA and IP ratings.

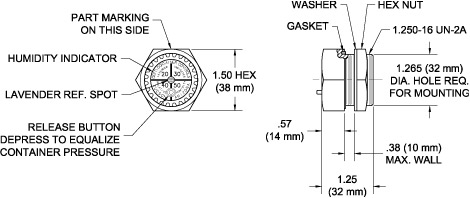

TA440-R Combination Breather Valve & Humidity Indicator drawing

PRESSURE SIDE (FLOW OUT)
VACUUM SIDE (FLOW IN)
Dash No.
Sealed @
Flow Rate @ Pressure
Dash No.
Sealed @
Flow Rate @ Pressure
-05
0.5 psid*
4.0 SCFM @ 2.0 psid
-05
0.5 psid*
4.0 SCFM @ 2.0 psid
-10
1.0 psid*
4.0 SCFM @ 2.5 psid
-10
1.0 psid*
4.0 SCFM @ 2.5 psid
-15
1.5 psid*
3.5 SCFM @ 3.0 psid
-15
1.5 psid*
3.5 SCFM @ 3.0 psid
-20
2.0 psid*
3.0 SCFM @ 3.5 psid
-20
2.0 psid*
3.0 SCFM @ 3.5 psid
-25
2.5 psid*
2.5 SCFM @ 4.0 psid
-25
2.5 psid*
2.5 SCFM @ 4.0 psid
-30
3.0 psid*
2.0 SCFM @ 4.5 psid
-30
3.0 psid*
2.0 SCFM @ 4.5 psid

*To convert to metric equivalent (millibars) multiply by 69
†To convert metric equivalent (liters/sec) multiply by 0.472
Dash numbers for the Pressure and Vacuum sides may be used in any combination (i.e. TA440-05-15-R). AGM can also supply TA440-R Valves with other settings than those shown above. Please contact AGM for availability. Before making drawings of these valves, contact AGM for part numbers to be used.

Additional Information

Materials

Body & Hex Nut-Black Polycarbonate Plastic, Washer-Aluminum Alloy, Humidity Indicator Housing-High Strength Plastic, Gasket-per AMS-R-6855, Class II, Grade 60

Mounting Requirements

Gasket, Washer, Hex Nut are provided with each valve

Mounting Hole Diameter

1.265 ± 0.015 (32 ± 0.3 mm)

Maximum Wall Thickness

0.38 in. (10 mm)

Installation Torque

30-40in. – lbs. (3.4-4.5 N•m)

Weight

0.09 lbs. (40 grams)
