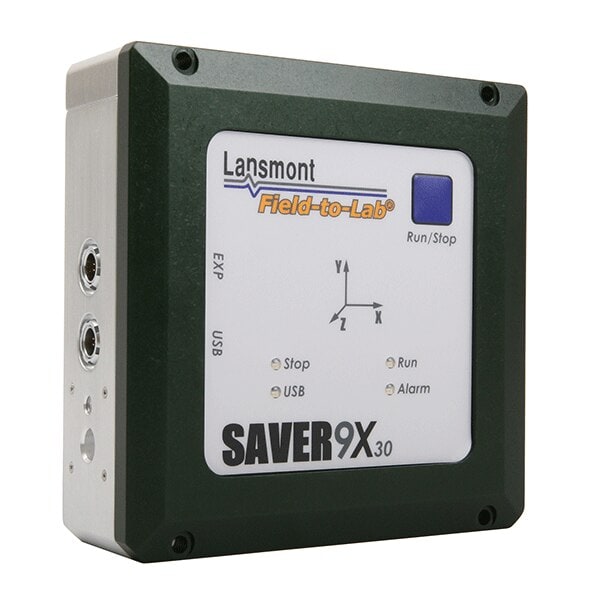

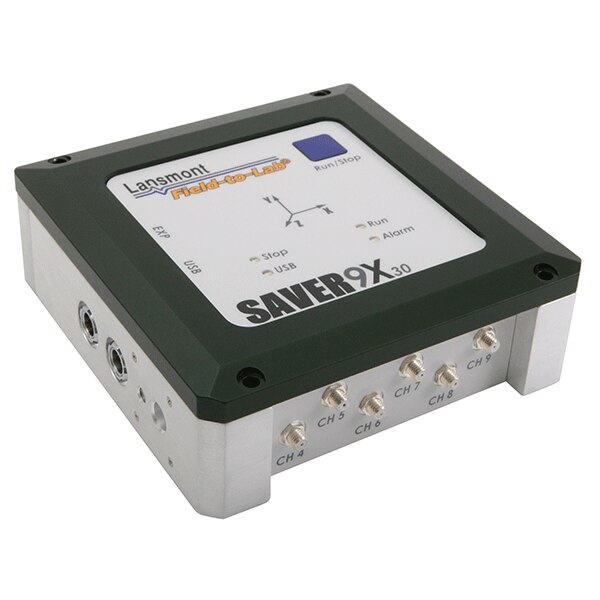

Saver™ 9X30 Shock & Vibration Environment Recorder
Helpful Links
Our most powerful instrument, the SAVER™ 9X30 captures drops, impacts, vehicle motion, and vibration. The SAVER 9×30 is a self-powered Field Data Recorder provides “best in class” 16 bit resolution on each of 9 dynamic channels capable of recording for 30 days. It’s the ultimate resource for defining, characterizing, and visualizing transport, distribution, and use environments.

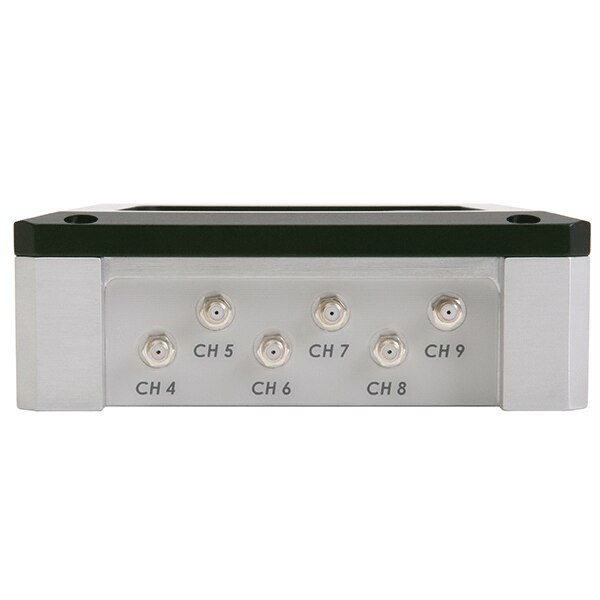

The Saver 9X30 Shock & Vibration Environment Recorder provides up to nine dynamic channels (3 internal and 6 external), while also recording temperature, humidity and atmospheric pressure along with optional GPS input capabilities. The 9X30 measures unattended and continually for up to 30 days. An internal clock marks the exact time when each event occurs.
- Monitor high value / high profile shipments
- Define “normal” shipping conditions
- Create new testing standards based on actual measurements
- Audit transit / logistics environments to verify carrier handling practices
- Fortify risk management
- Measure vehicle dynamics
- Define product use environments by measuring “actual” conditions
- Road quality monitoring
- Motorsports – race accident measurements – “black box”
- Aerospace – asset monitoring
- Flight testing
- Ordnance transport / handling monitoring
- Proving ground testing
- Ground vibration measurements
Additional information
| Weight | 0.0000 lbs |
|---|---|
| Dimensions | 4.9000 × 5.0000 × 1.7000 in |
| Product Size | 5.0" x 4.9" x 1.7" (127 x 124 x 43 mm) |
| Weight | 35.0 ounces (1 kg) |
