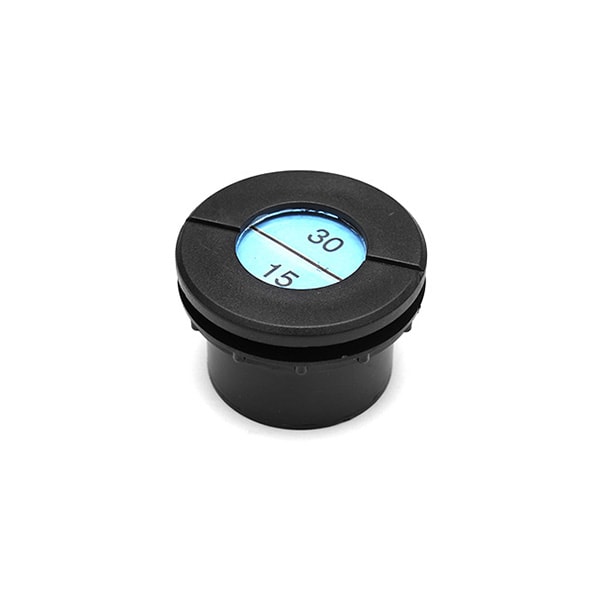

TA634 Series Desiccator
Description
Panel mounted Indicating Desiccators provide protection against corrosion, dampness and contamination in electronic, electrical, telecommunications, computer equipment, etc. The TA634 desiccator incorporates Humidity Indicators, which monitor saturation and indicate when reactivation or replacement is required. They are blue when the desiccant is dry and turn pink when the maximum amount of moisture has been absorbed.
A powerful adsorbing agent (either silica gel or molecular sieve) reduces existing or incoming moisture to acceptable levels. The use of molecular sieve desiccant is recommended when equipment may be subject to immediate failure as a result of water vapor condensation. The molecular sieve desiccant maintains an ultra low relative humidity for extremely sensitive applications. It is most suitable for applications where equipment or enclosures may be subject to operation at low temperatures and water vapor condensation must not occur.
AGM's TA634 Desiccator is available in 10 gram, 30 gram and 50 gram sizes. See the chart below to select proper size and desiccant for the desired application.
The silica gel desiccators can be reactivated for re-use by heating them at 248°F (120°C) for four hours in a ventilated oven. The molecular sieve desiccators cannot be reactivated.
Materials | Polycarbonate, black |
Finish | Natural finish |
The TA634 is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 3X, 3RX, 3SX, 4, 4X, 5, 6, 6P, 12, 12K, and 13 enclosures, as well as IP66/IP67 enclosures.
Part Number
|
Length A in.(mm)
|
Length B in.(mm)
|
Diameter C in.(mm)
|
Diameter D in.(mm)
|
Desiccant
|
Desiccant Capacity (g)
|
Indicating Element
|
Overall Weight (g)
|
TA634-10M
|
2.05 (52)
|
1.81 (46)
|
1.89 (48)
|
1.53 (39)
|
Molecular Sieve
|
10
|
30/15
|
56
|
TA634-10S
|
2.05 (52)
|
1.81 (46)
|
1.89 (48)
|
1.53 (39)
|
Silica Gel
|
10
|
50/30
|
56
|
TA634-30M
|
1.57 (40)
|
1.34 (34)
|
2.36 (60)
|
2.01 (51)
|
Molecular Sieve
|
30
|
30/15
|
77
|
TA634-30S
|
1.57 (40)
|
1.34 (34)
|
2.36 (60)
|
2.01 (51)
|
Silica Gel
|
30
|
50/30
|
77
|
TA634-50M
|
1.46 (37)
|
1.22 (31)
|
3.23 (82)
|
2.87 (73)
|
Molecular Sieve
|
50
|
30/15
|
138
|
TA634-50S
|
1.46 (37)
|
1.22 (31)
|
3.23 (82)
|
2.87 (73)
|
Silica Gel
|
50
|
50/30
|
138
|
Additional Information
Materials | Polycarbonate, black |
---|---|
Finish | Natural Finish |
IP/NEMA Rating | The TA634 is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 3X, 3RX, 3SX, 4, 4X, 5, 6, 6P, 12, 12K, and 13 enclosures, as well as IP66/IP67 enclosures. |
