TA485 Records Holders

Clear
SKU TA485 Categories ,

Helpful Links

TA485 Selection Chart

Handles larger, bulkier, soft-covered documents. Also tools or other support items.

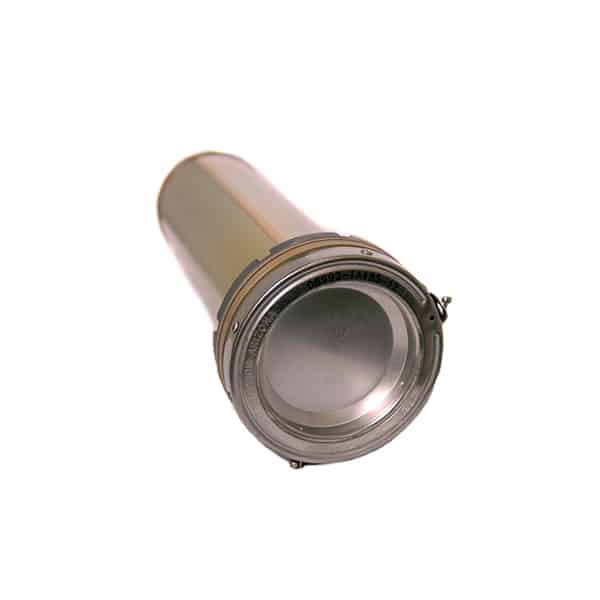

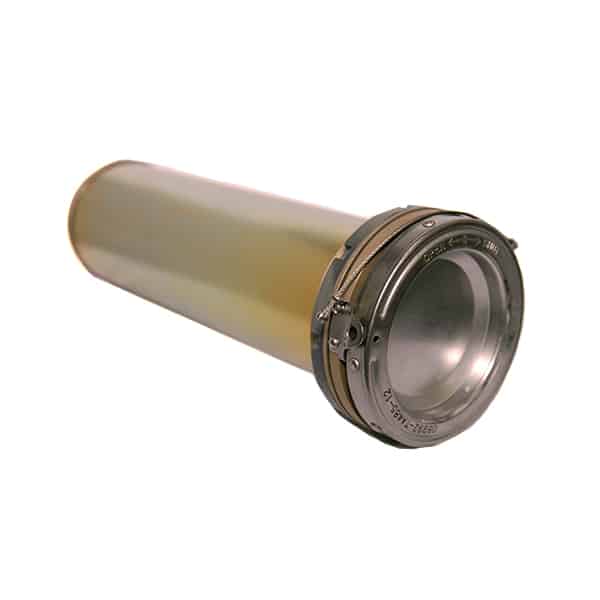

Simple to install in large shipping and storage containers, AGM”s TA485 Records Holders provide a convenient, safe and easily accessible place for inspection records and instructions.

The lightweight TA485 Records Holders are waterproof and pressure tight up to 5 psig. The Records Holder is sealed to the container from the outside by a retained gasket. An o-ring in the spring loaded cover seals the interior of the records compartment from the outside.

Designed for mounting on a smooth, flat surface; this item may not seal tightly if surface is curved or domed or too rough.

Simple to Use. Roll the records or instructions and insert into tube. Press on cover and turn about 60°.

Easily Installed. Install the Records Holder through a 4.015″ (102 mm) dia. hole in container wall. Gasket, washer and mounting nut are furnished. Blind threaded insert provided in end of tube for additional support.

Tamper-Proof. Holes through cover and flange of records holder are provided for safety wiring and inspector’s seal.

Materials and Finish: Aluminum alloys, conversion coated per MIL-DTL-5541. Stainless steel cover, passivated. Buna-N o-ring and gasket.

Torque Value for Spanner Nut: 150 in. – lbs. (17 N• m).

TA485 Drawing

TA485 Drawing

Additional information

Weight0.0000 lbs
Dimensions0.0000 × 0.0000 × 0.0000 in
Records Holders Length

,

Clear Opening Diameter

3.30 in (84 mm)

Mounting Hole Diameter

4.015 in (102 mm)

Torque Value for Spanner Nut

150 in. – lbs. (17 N• m)

Cable Material

Stainless Steel

Cover Material

Stainless Steel

Cover Finish

Passivated

Body Material

Aluminum Alloys

Body Finish

Conversion Coated

Internal O-Ring Material

Buna-N

External Gasket Material

Buna-N

Drawing

3D Model – TA485-12

3D Model – TA485-14

3D Model – TA485-17
