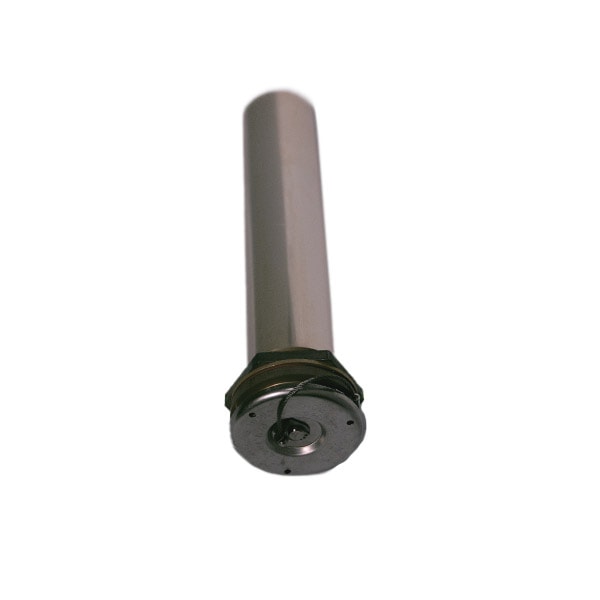

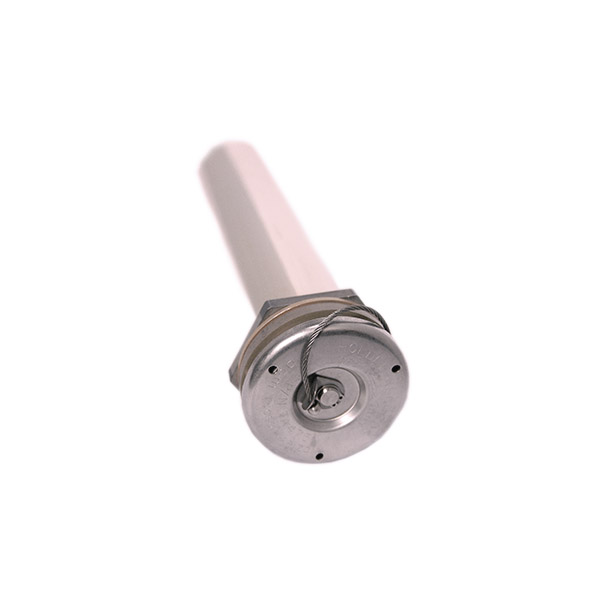

TA475 Records Holder

SKU: TA475 Categories: ,

Description

Adequate for a few sheets rolled up papers up to legal size (8-1/2" x 14").
Simple to install in shipping and storage containers, the TA475 Records Holder provides a convenient, safe and easily accessible place for inspection records and instructions.

The lightweight TA475 Records Holder is waterproof and pressure tight up to 5 psig. The Records Holder is sealed to the container from the outside by a retained gasket. An o-ring in the spring loaded cover seals the interior of the records compartment from the outside.

Designed for mounting on a smooth, flat surface; this item may not seal tightly if surface is curved or domed or too rough.

Simple to Use. Roll the records or instructions and insert into tube. Press on cover and twist about 30°.

Easily Installed. Install the Records Holder through a 2.02" (51 mm) dia. hole in container wall. Gasket, washer and mounting nut are furnished.

Tamper-Proof. Holes through cover and flange of records holder are provided for safety wiring and inspector's seal.

Materials and Finish: Aluminum alloys, conversion coated per MIL-DTL-5541. Stainless steel cover, passivated. Buna-N o-ring and gasket.

Weight: 0.31 lbs. (140 grams)

Torque Value for Hex Nut: 80 in. - lbs. (9 N•m)

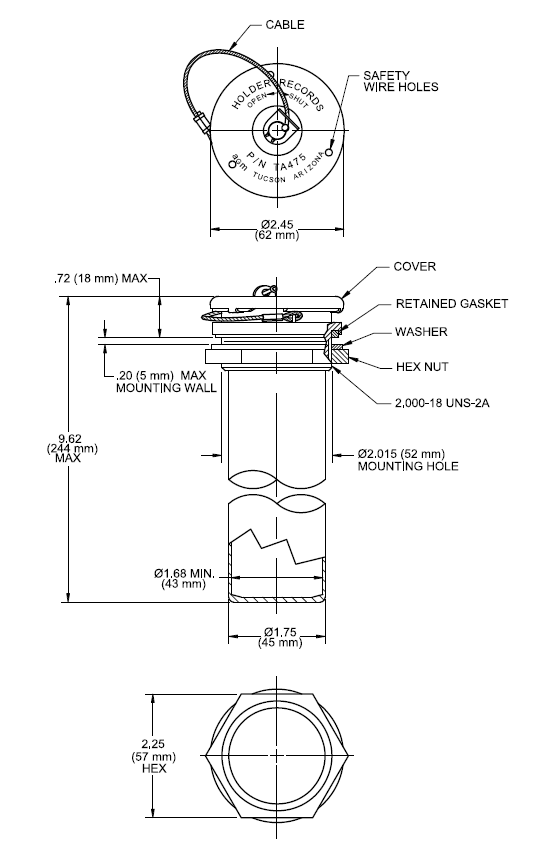

TA475 Records Holder Drawing

Additional information

Clear Opening Diameter

1.69 in (43 mm)

Records Holders Length

8.69 in (221 mm)

Mounting Hole Diameter

2.015 in (51 mm)

Torque Value for Hex Nut

80 in. - lbs. (9 N•m)

Cable Material

Stainless Steel

Cover Material

Stainless Steel

Cover Finish

Passivated

Body Material

Aluminum Alloys

Body Finish

Conversion Coated

Internal O-Ring Material

Buna-N

External Gasket Material

Buna-N

Weight

0.31 lbs (140 grams)
