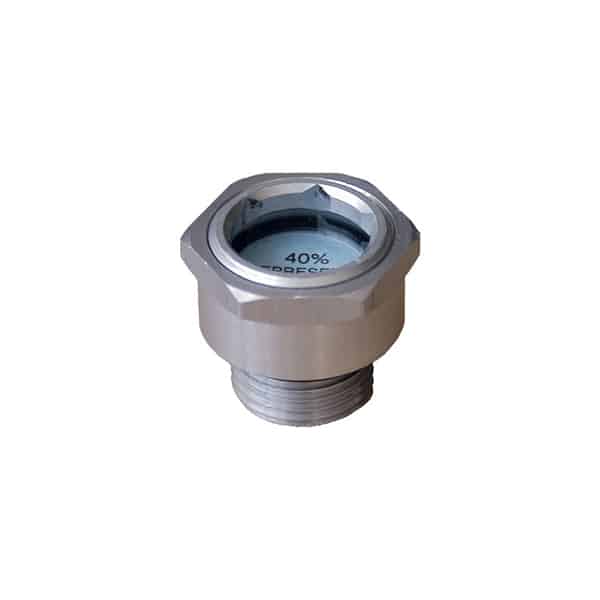

The TA383 Humidity indicator plug monitors moisture levels in engines during transport and storage and alerts the user when desiccant should be replaced thereby preventing corrosion in the engine block.
This plug was specifically designed for installation in engine cylinders. It installs into an 18-1.5 mm threaded boss (the same thread as the most common spark plug size used in automobiles). The o-ring provides an airtight seal with minimal torque.
Part number format is TA383-40 for single spot cards; TA383-123P for multi-segment cards. Also available with a mounting nut by adding a “-W” to the end of the part number.
Recommended Installation Torque: 25 – 35 in. – lbs. (3.0 – 4.0 N·m)
Standard finish is clear anodize. Standard gaskets are IAW MIL-R-6855. Alternate finishes and gasket materials are available on request. Please contact AGM’s Engineering Department for more information.
NOTE: Contact AGM for availability of this and other custom manufactured products.
Additional information
Weight | 0.0000 lbs |
---|---|
Dimensions | 0.0000 × 0.0000 × 0.0000 in |
Recommended Installation Torque | 25 – 35 in. – lbs. (3.0 – 4.0 N·m) |
Complies With | SAE AS26860 Type I |
External Gasket Material | IAW MIL-PRF-6855 |
Window Diameter | 0.625 in (15.9 mm) |
Internal O-Ring Material | IAW MIL-PRF-6855 |
Body Finish | Anodized, Clear |
Weight | 0.03 lbs (13.6 grams) |
Body Material | Aluminum |
Related products
- The TA356-HC-3456P humidity indicator color-change pie sector disc measures relative humidity levels from 30-60% and meet MIL-I-8835 and can be...

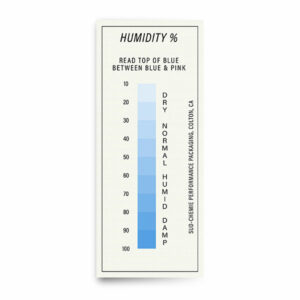

- This Humidity Indicator Card is a reversible color-change indicator with an adhesive back.
- The TA356-HC-123P color-change humidity indicator pie sector discs measure relative humidity levels from 10% to 30% and meet MIL-I-8835 and...

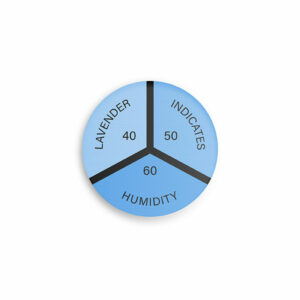

- The TA356-HC-456P color-change humidity indicator cards measure relative humidity levels at 40%, 50% and 60% and meet MIL-I-8835 and can...
