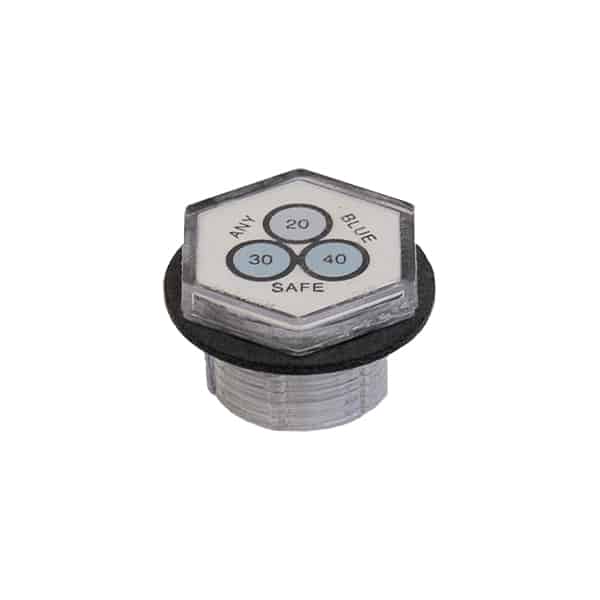

TA380-234S Humidity Indicator Plug

SKU: TA380-234S Categories: ,


This is an acrylonitrile-styrene (high impact plastic) Humidity Indicator Plug. It mounts through a 0.72 in. (18.3 mm) diameter hole. Furnished with gasket, retainer, plastic nut and a 20-30-40% spot-type humidity disc. Meets AEC drawing 827526.

Weight: 0.02 lbs. (9 grams)

Maximum Internal Pressure: 10 psi

Recommended Installation Torque: 5 - 8 in. - lbs. (0.6 - 0.9 N·m)

Maximum Wall Thickness: 0.18 in. (5 mm)

The TA380 is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 3X, 3RX, 3SX, 4, 4X, 5, 6, 6P, 12, 12K, and 13 enclosures, as well as IP66/IP67 enclosures. Contact AGM's Engineering department for more information.

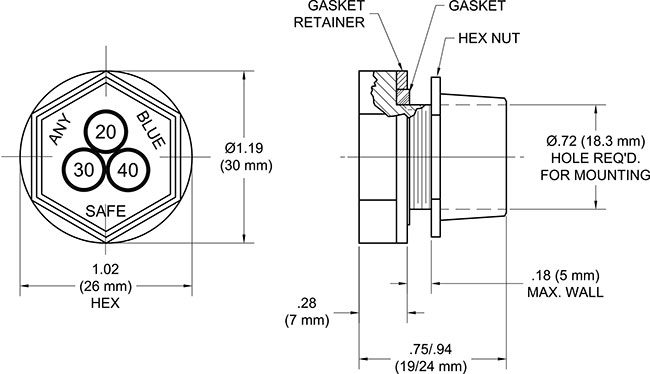

TA380-234S Humidity Indicator Plug drawing

Additional information

Maximum Internal Pressure

10 psi

Maximum Wall Thickness

0.18 in (5 mm)

IP/NEMA Rating

This is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K and 13 enclosures, as well as I66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application.

Mounting Hole Diameter

0.72 in (18.3 mm)


0.02 lbs (9 grams)

Window Diameter

0.875 in (22.2 mm)

Body Material

Transparent Acrylonitrite-Styrene

Complies With

Meets AEC Drawing 827526
