TA359 Reverse Mounting Plug

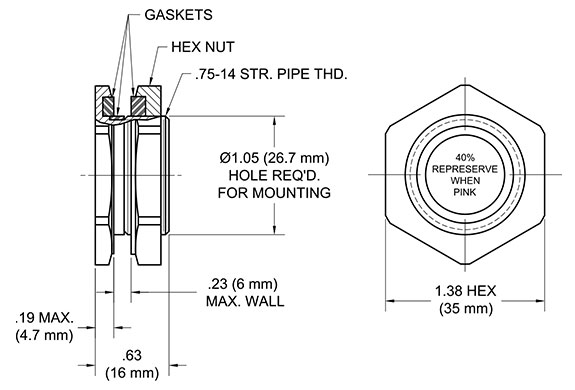

The TA359 plug utilizes all the features of the TA356 Humidity Indicator; however, by reversing its viewing face, it is easier to install. It provides the same tight seal through a 1.05 in. (27 mm) diameter hole. Lock nut and two gaskets are furnished.
This TA359 reverse mounting plug was specifically designed for flexible barriers, but may also be used in most other applications where the TA356 is used.
Weight: 0.055 lbs (25 grams)
Recommended Installation Torque: 30 – 40 in. – lbs. (3.4 – 4.5 N·m)
Maximum Wall Thickness: 0.23 in. (6 mm)
This plug utilizes the same cards as the TA356 series (see chart below) for a wide variety of styles and humidity values.
|
Circle Card Part Number
|
Standard Item
|
Indicated Humidity Percentage
|
Segment Type
|
|
No
|
20, 30, 40, 50
|
Spot
|
|
|
Yes
|
20, 30, 40, 50
|
Pie
|
|
|
TA356-HC-345S
|
No
|
30, 40, 50
|
Spot
|
|
Yes
|
10, 20, 30
|
Pie
|
|
|
Yes
|
20, 30, 40
|
Pie
|
|
|
Yes
|
30, 40, 50
|
Pie
|
|
|
Yes
|
30, 40, 50, 60
|
Pie
|
|
|
Yes
|
20, 40, 60
|
Pie
|
|
|
Yes
|
40, 50, 60
|
Pie
|
|
|
Yes
|
40
|
Spot
|
Standard finish is clear anodize. Standard gaskets are IAW MIL-R-6855. Alternate finishes and gasket materials are available on request. Please contact AGM’s Engineering Department for more information.
NOTE: Contact AGM for availability of this and other custom manufactured products.
Additional information
| Weight | 0.0000 lbs |
|---|---|
| Dimensions | 0.0000 × 0.0000 × 0.0000 in |
| Weight | 0.055 lbs (25 grams) |
| Recommended Installation Torque | 30 – 40 in. – lbs. (3.4 – 4.5 N·m) |
| Window Diameter | 0.675 in (17.1 mm) |
| Body Material | Aluminum |
| Mounting Hole Diameter | 1.05 in (27 mm) |
| Internal O-Ring Material | IAW MIL-PRF-6855 |
| External Gasket Material | IAW MIL-PRF-6855 |
| Maximum Wall Thickness | 0.23 in (6 mm) |
| Complies With | SAE AS26860 Type II |
| Body Finish | Anodized, Clear |
| Indicated Humidity Percentage | 20%, 30%, 40%, 50%, 30%, 40%, 50%, 10%, 20%, 30%, 20%, 30%, 40%, 30%, 40%, 50%, 60%, 20%, 40%, 60%, 40%, 50%, 60%, 40% |
| Segment Type | Pie, Spot |
