TA354 Humidity Indicator Plug
SKU: TA354 (specify card type)
TA354 Humidity Indicator Plug
Description
Meets SAE AS26860 Type II

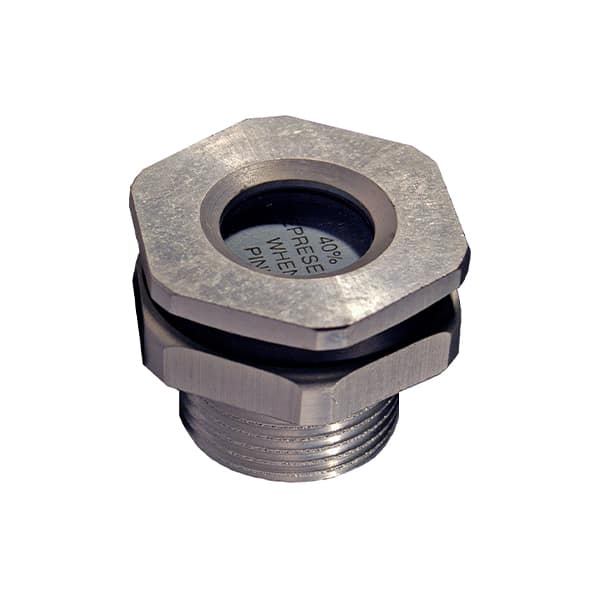

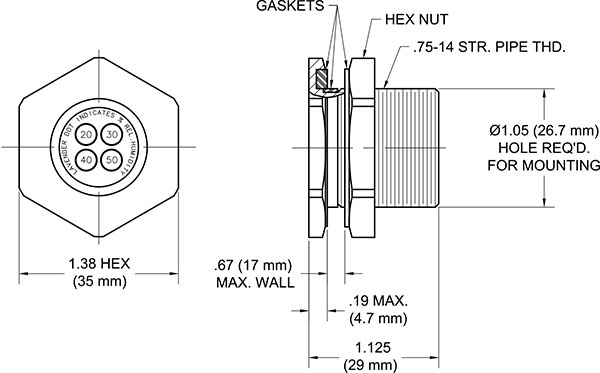

This is a clear anodized aluminum Humidity Indicator Plug, but 1/2″ longer than the TA356. This item is intended for thicker walls than the TA356 (TA356 can fit up to a .23″ wall), up to .75″ in thickness. It installs into a flexible barrier through a 1.05 in. (26 mm) diameter hole. Nut and two gaskets are furnished. It can also be installed through a 1.05 in. (26 mm) diameter hole in a rigid container by removing one gasket and reversing the nut.
Standard TA354-40 is furnished with a 40% humidity disc. For optional multiple spot discs, refer to the chart below. Suffix numbers specify optional discs. For instance, TA354-234P includes a 20-30-40% pie sector disc.
|
Indicator Plug Part Number
|
Replacement Circle Card Part Number
|
Standard Item
|
Indicated Humidity Percentage
|
Segment Type
|
|
TA354-2345S
|
No
|
20, 30, 40, 50
|
Spot
|
|
|
TA354-2345P
|
Yes
|
20, 30, 40, 50
|
Pie
|
|
|
TA354-345S
|
TA356-HC-345S
|
No
|
30, 40, 50
|
Spot
|
|
TA354-123P
|
Yes
|
10, 20, 30
|
Pie
|
|
|
TA354-234P
|
Yes
|
20, 30, 40
|
Pie
|
|
|
TA354-345P
|
Yes
|
30, 40, 50
|
Pie
|
|
|
TA354-3456P
|
Yes
|
30, 40, 50, 60
|
Pie
|
|
|
TA354-246P
|
Yes
|
20, 40, 60
|
Pie
|
|
|
TA354-456P
|
Yes
|
40, 50, 60
|
Pie
|
|
|
TA354-40
|
Yes
|
40
|
Spot
|
Weight: 0.06 lbs. (27 grams)
Maximum Internal Pressure: 10 psi
Recommended Installation Torque: 30 - 40 in. - lbs. (3.4 - 4.5 N·m)
Maximum wall thickness: 0.67 in. (17 mm)
Additional Information
| Maximum Internal Pressure | 10 psi |
|---|---|
| Window Diameter | 0.675 in (17.1 mm) |
| Body Finish | Anodized, Clear |
| Mounting Hole Diameter | 1.05 in (26 mm) |
| Weight | 0.06 lbs (27 grams) |
| Internal O-Ring Material | IAW MIL-PRF-6855 |
| Maximum Wall Thickness | 0.67 in (17 mm) |
| Complies With | SAE AS26860 Type II |
| Body Material | Aluminum |
| Recommended Installation Torque | 30 – 40 in. – lbs. (3.4 – 4.5 N·m) |
| External Gasket Material | IAW MIL-PRF-6855 |
| Indicated Humidity Percentage | 20%, 30%, 40%, 50%, 10%, 20%, 30%, 20%, 30%, 40%, 30%, 40%, 50%, 30%, 40%, 50%, 60%, 20%, 40%, 60%, 40%, 50%, 60%, 40% |
| Segment Type | Pie, Spot |
