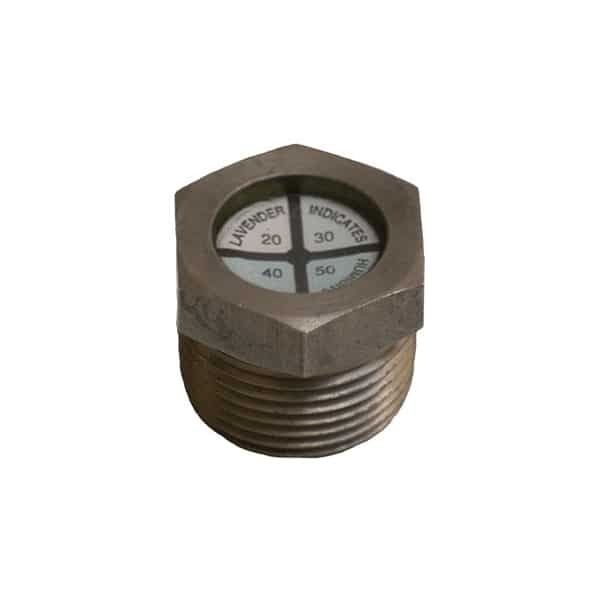

TA284 Humidity Indicator Plug

Clear

Description

Standard Configurations
Part Number
Indicated Humidity Percentage
Card Type
TA284-40RWP
40
Spot
TA284-6789P
60, 70, 80, 90
Pie



The TA284 Humidity Indicator Plug was created for high pressure applications of up to 500 psi.  The glass window is fused directly to the steel body and the 3/4-14 pipe thread is tapered for leak tight installations without o-rings or gaskets.  The plug is easily installed in a threaded boss with a 1-1/8" socket wrench.  The indicator card in this plug is protected from contamination by a porous filter and a polyethylene spacer.  The Humidity Indicator card, filter and spacer are held in place by a retaining ring.

Lock nuts and gaskets are not supplied with this plug. It is designed for a threaded boss only.

Weight: 0.11 lbs. (50 grams)

Thr TA284 is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM's Engineering department for more information.

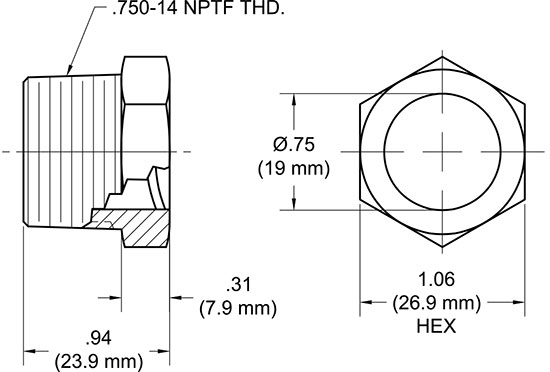

TA284 Humidity Indicator Plug Drawing

Additional information

Window Diameter

0.75 in (1.91 mm)

Body Material

Steel

Maximum Internal Pressure

500 psi

Body Finish

Electroless Nickel

IP/NEMA Rating

TA284 is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application.

Weight

0.11 lbs (50 grams)

Indicated Humidity Percentage

60%, 70%, 80%, 90%, 40%

Segment Type

Pie, Spot
