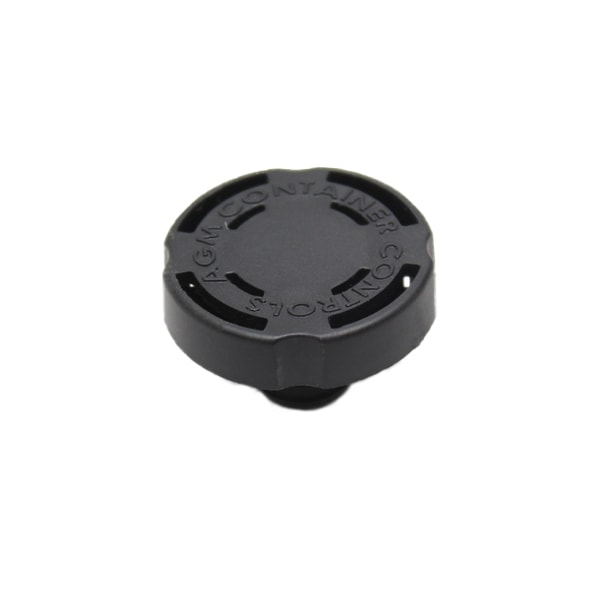

TA256-1 Plastic Immersion Proof Breather

SKU: TA256-1 Categories: ,

Description

Part Number
Immersion Depth
Pressure
Filtration
Hydrophobic
Oleophobic
TA256-1
2.8 meter
4 psid
1 micron
Yes
No



The TA256-1 plastic Immersion Proof Breather is one of AGM's most economical immersion proof breathers. It has a relatively high flow rate compared to similarly sized breathers, and an immersion depth of up to 9.2 ft. This corresponds to a water intrusion pressure of about 4 PSID.

The TA256-1 plastic Immersion Proof Breather is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 3X, 3RX, 3SX, 4, 4X, 5, 6, 6P, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures.

NOTE: This breather can be used in commercial transit cases.

Part No.: TA256-1
Mounting: Friction fit into a 21/64″ hole or with a 5/16″ external retaining ring for thin walls. Material: ABS, black

TA256-1 Flow Chart

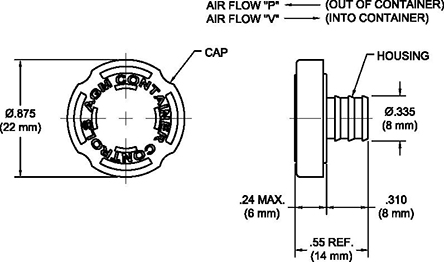

TA256 Immersion Proof Breather drawing

Additional information

Immersion Depth

2.8 meter

Filtration

1 micron

Oleophobic

No

Mounting

Friction fit into a 21/64″ hole or with a 5/16″ external retaining ring for thin walls.

Housing Material

ABS, Black

IP/NEMA Rating

NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures

Pressure

4 psid

Hydrophobic

Yes

Weight

1.70 grams
