TA254-1 Mini Splash Proof Breather

SKU: TA254-1 Categories: ,

Description

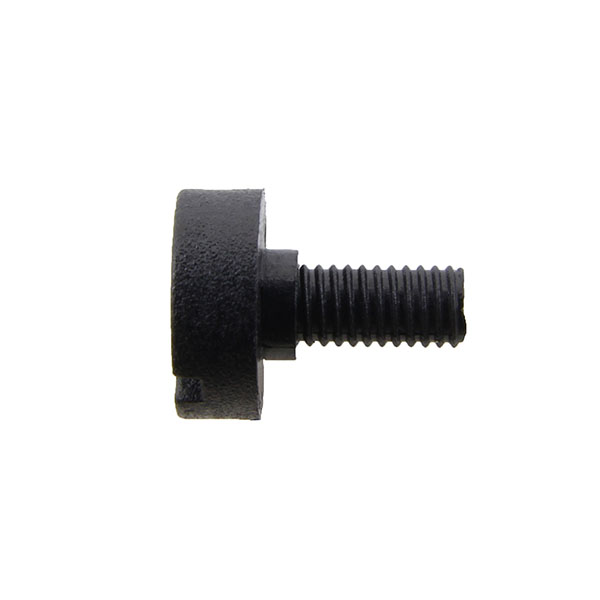

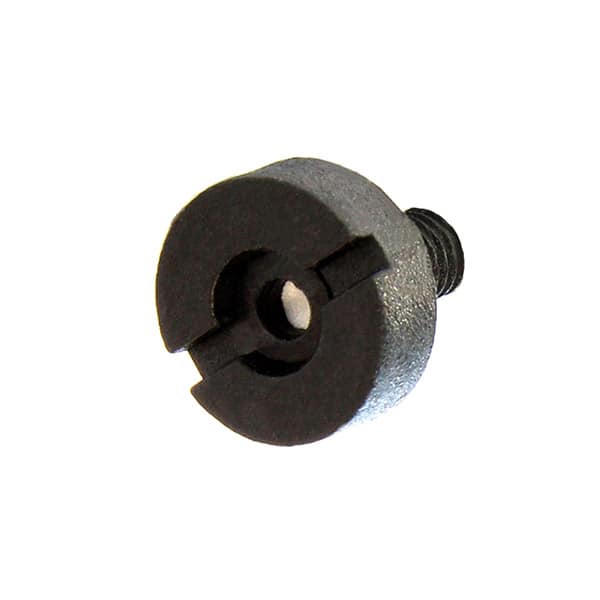

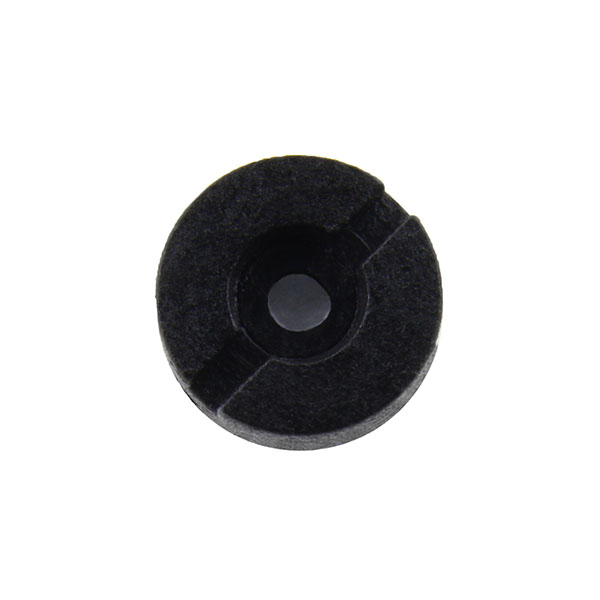

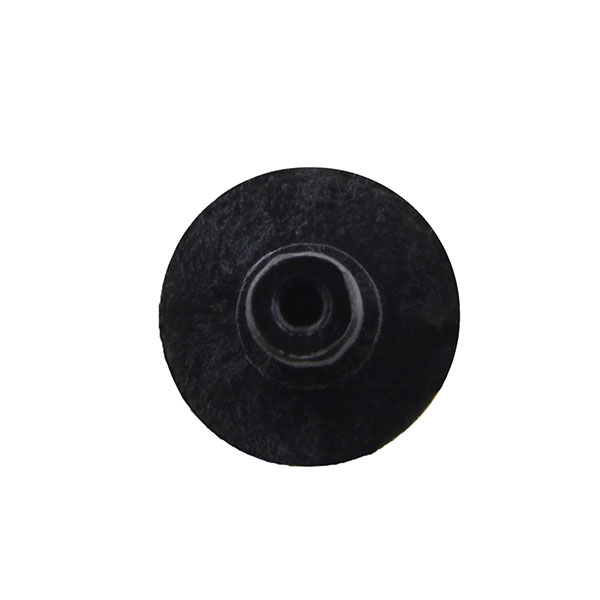

The TA254-1 Mini Splash Proof Breather is the smallest breather AGM has available. Made from black nylon, the TA254-1 utilizes a 3 x 0.5 mm thread for secure mounting and has an 8 mm diameter head that is only 3 mm thick for an extremely low profile. It is ideal for containers that require minimal venting and must withstand splashed water or directed streams of water (hosedowns).

Note: This breather is not immersion proof. For an immersion proof version of this breather, please see AGM P/N TA254-2.

The TA254-1 Mini Splash Proof Breather is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 3X, 3RX, 3SX, 4, 4X, 5, 12, 12K, and 13 enclosures, as well as IP65 enclosures.

Part No.: TA254-1

Mounting: 3 x 0.5 mm

Material: Nylon, black

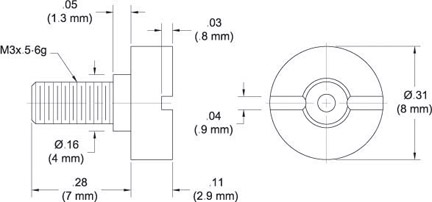

TA254-1 Mini Splash Immersion Proof Breather drawing

Additional information

Threads

M3x0.5-6g

IP/NEMA Rating

NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures

Filtratio

3 micron

Mounting

Into Threaded Boss

Housing Material

Nylon, Black

Weight

0.40 grams
