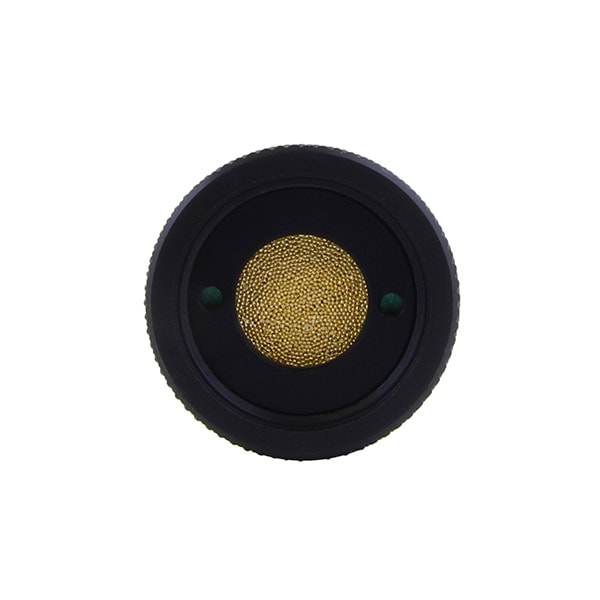

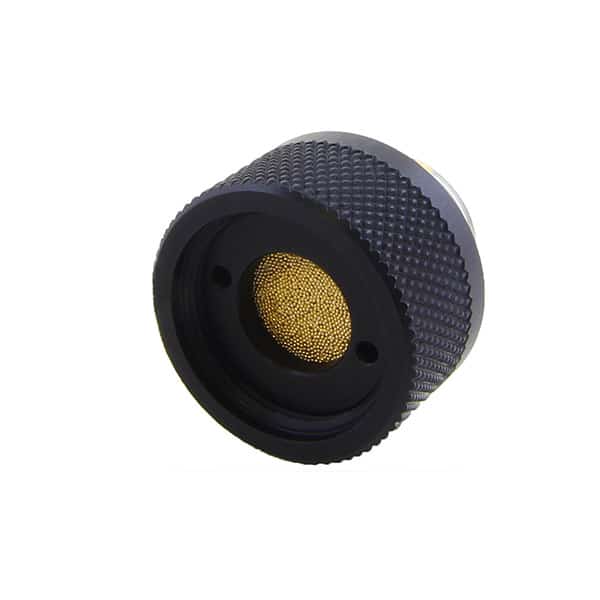

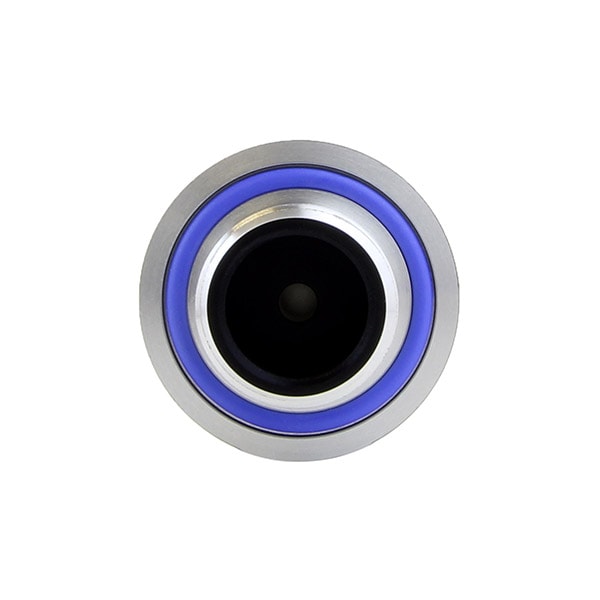

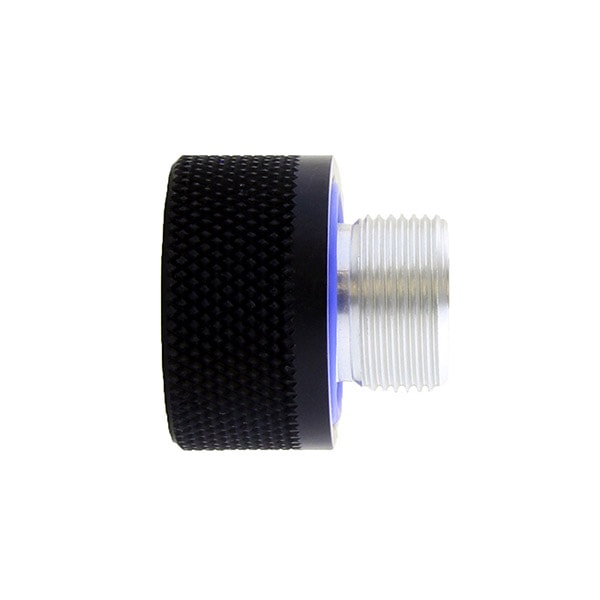

TA251-1-RF Immersion Proof Breather

SKU: TA251-1-RF Categories: ,

Description

The TA251-1-RF Immersion Proof Breather offers EMI/RFI shielding for applications where RFI protection is required. The bare threads are conductive.

Part No.: TA251-1-RF

Mounting: Into Threaded Boss

Material: Aluminum Alloy

O-Ring: Fluorosilicone

Provides RF protection.

The TA251-1-RF Immersion Proof Breather is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. Contact AGM's Engineering department for more information.

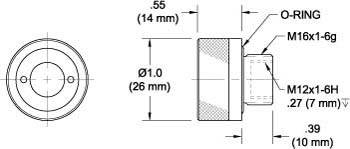

TA251-1-RF Immersion Breather Drawing

Additional information

Threads

M12x1-6g

Mounting

Into Threaded Boss

Internal O-Ring Material

Fluorosilicone

Housing Material

Aluminum Alloy

Filtration

1 micron

Immersion Depth

1 meter

Pressure

1.4 psi

Weight

21 grams

IP/NEMA Rating

NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures.
