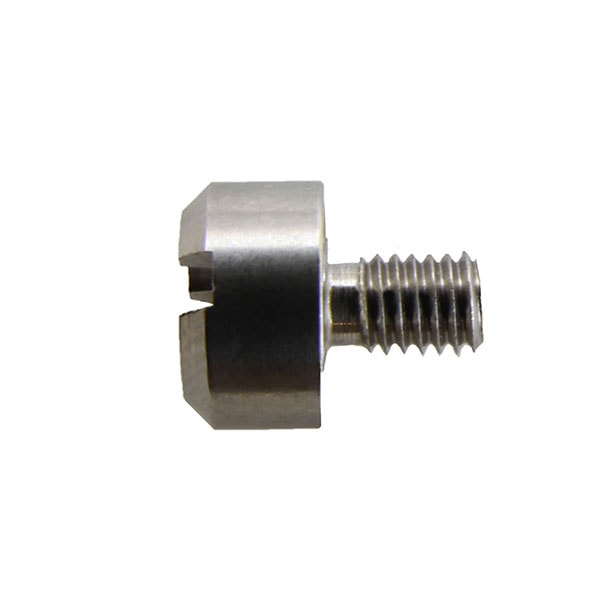

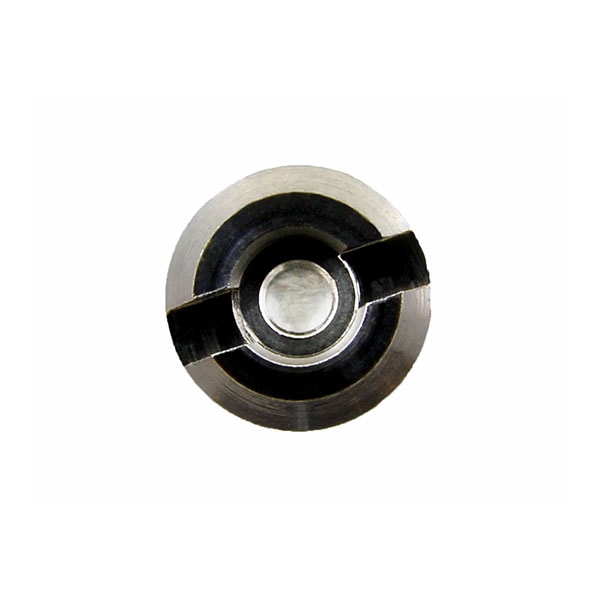

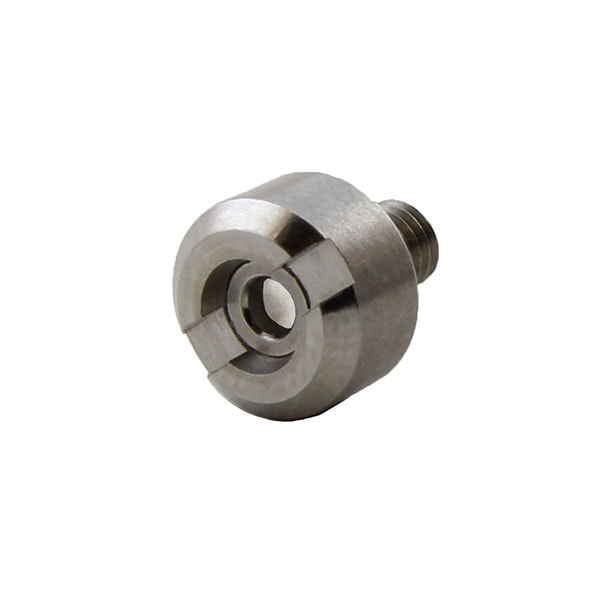

TA250-2 Mini Immersion Proof Breather

The TA250-2 Mini Immersion Proof Breather will withstand immersion in water to a depth of 1 meter for 2 hours without any water ingress.

Modified acrylic copolymer cast on a non-woven polyester support. Post treated for hydrophobicity through UV/E beam polymerization. Stainless steel, natural clean finish.

Weight: 1.1 grams

Nominal flow rate: 30 cc/min. at 1″ Wg., 85 cc/min. at 6″ Wg.

Operating temperature range: -40°C to 75°C

Storage temperature range: -50°C to 85°C

Humidity: 0 to 100%

The TA250-2 Mini Immersion Proof Breather is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 3X, 3RX, 3SX, 4, 4X, 5, 6, 6P, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures.

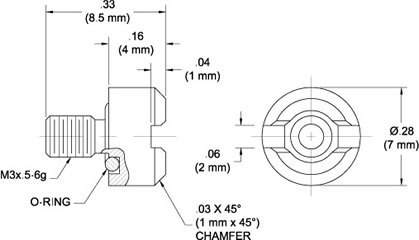

TA250-2 Mini Immersion Breather Drawing

Additional information

Weight 0.0000 lbs
Dimensions 0.0000 × 0.0000 × 0.0000 in
Pressure

1.4 psi

Filtration

3 micron

IP/NEMA Rating

NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures

Immersion Depth

1 meter

Weight

1.10 grams

Internal O-Ring Material

EPDM

Threads

M3x0.5-6g

Mounting

Into Threaded Boss

Housing Material

Stainless Steel

3D Model
