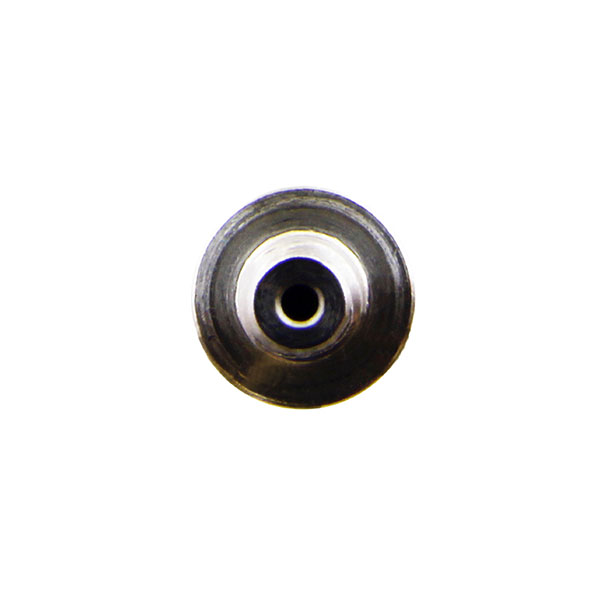

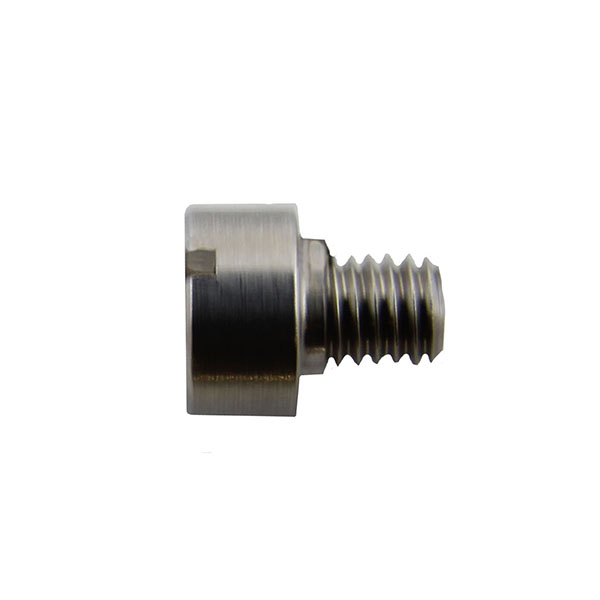

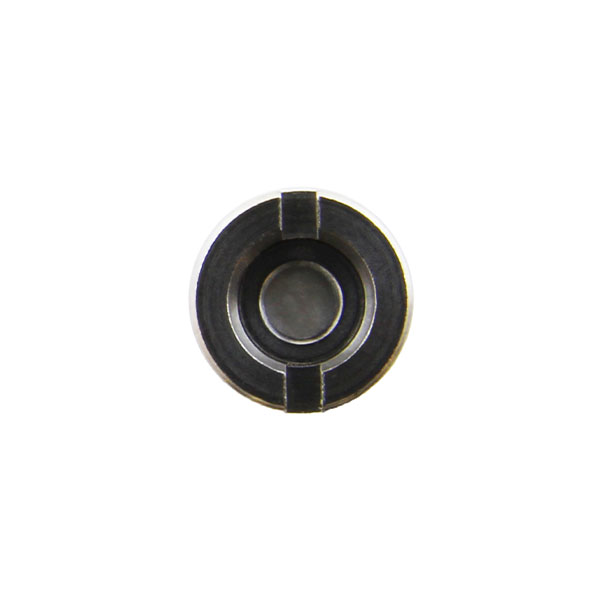

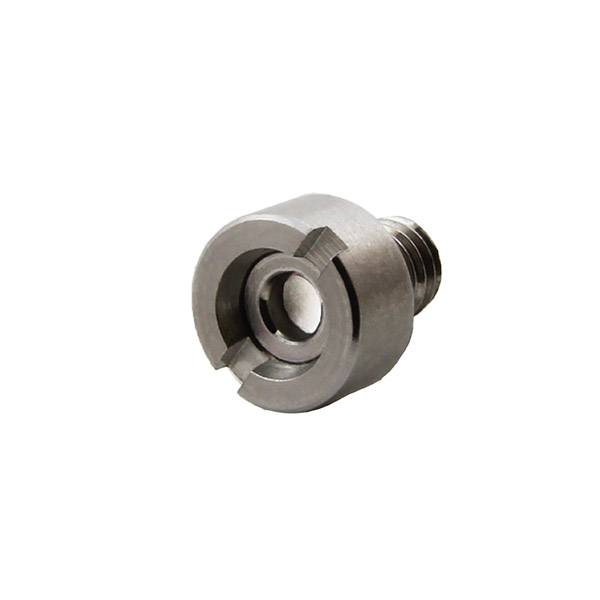

TA250-1 Mini Immersion Proof Breather

The TA250-1 mini Immersion Proof Breather will withstand immersion in water to a depth of 1 meter for 2 hours without any water ingress.

Modified acrylic copolymer cast on a non-woven polyester support. Post treated for hydrophobicity through UV/E beam polymerization. Stainless steel, natural clean finish.

Weight: 0.6 grams

Nominal flow rate: 30 cc/min. at 1″ Wg., 85 cc/min. at 6″ Wg.

Operating temperature range: -40°C to 75°C

Storage temperature range: -50°C to 85°C

Humidity: 0 to 100%

The TA250-1 mini Immersion Proof Breather is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 3X, 3RX, 3SX, 4, 4X, 5, 6, 6P, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures.

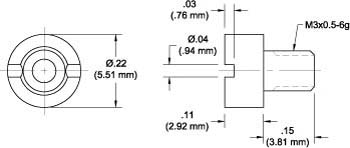

TA250-1 Mini Immersion Breather Drawing

Additional information

Weight0.0000 lbs
Dimensions0.0000 × 0.0000 × 0.0000 in
Mounting

Into Threaded Boss

Weight

0.60 grams

Housing Material

Stainless Steel

Immersion Depth

1 meter

IP/NEMA Rating

NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures

Filtration

3 micron

Threads

M3x0.5-6g

Pressure

1.4 psi

3D Model
