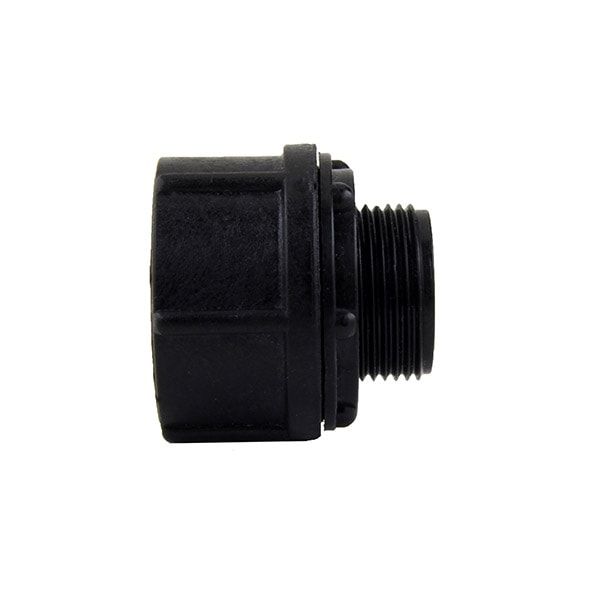

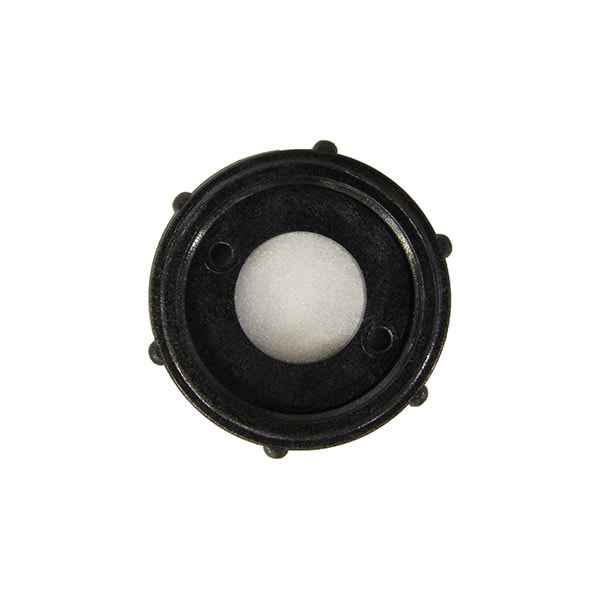

TA244-1 Plastic Immersion Proof Breather

The TA244-1 Plastic Immersion Proof Breather offers more air flow than most of AGM’s other breathers.

Part No.: TA244-1

Mounting: Nut Provided

Material: Polycarbonate Black

O-Ring: Nitrile

The TA244-1 Plastic Immersion Proof Breather is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 3X, 3RX, 3SX, 4, 4X, 5, 6, 6P, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures.

While most customers just hand tighten this item, for those customers who would like a torque recommendation, we recommend 15-25 in-lbs. We have found that a 15/16″ socket works well to hold the nut and the housing.

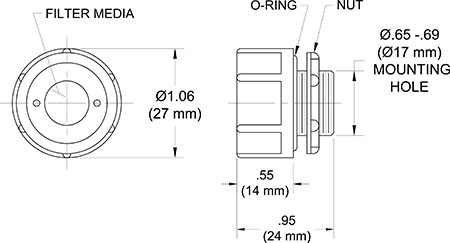

TA244-1 Plastic Immersion Breather Drawing

Additional information

Weight 0.0000 lbs
Dimensions 0.0000 × 0.0000 × 0.0000 in
Pressure

1.4 psi

IP/NEMA Rating

NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP65/IP67 enclosures

Weight

11 grams

Filtration

5 micron

Internal O-Ring Material

Nitrile

Mounting

Nut Provided

Housing Material

Polycarbonate Black

Immersion Depth

1 meter
