Re-Actrans Breather

SKU: ReActransBreather Categories: ,
Clear

Description

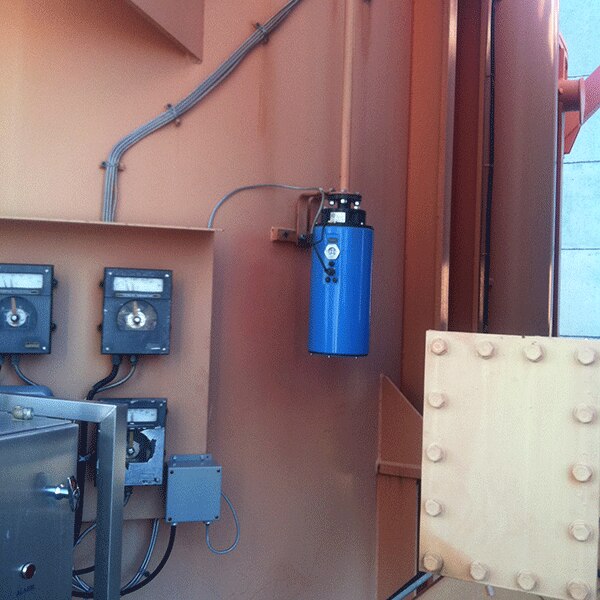

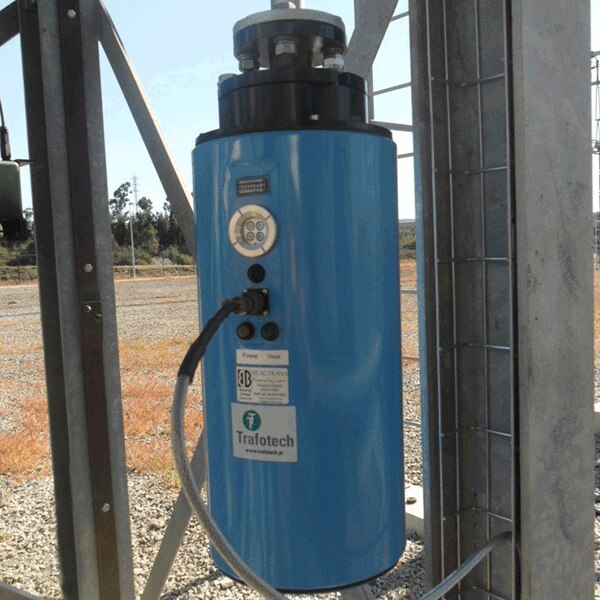

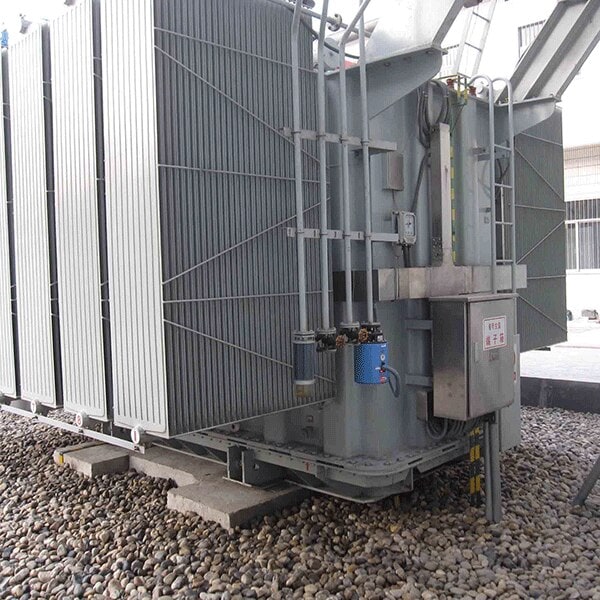

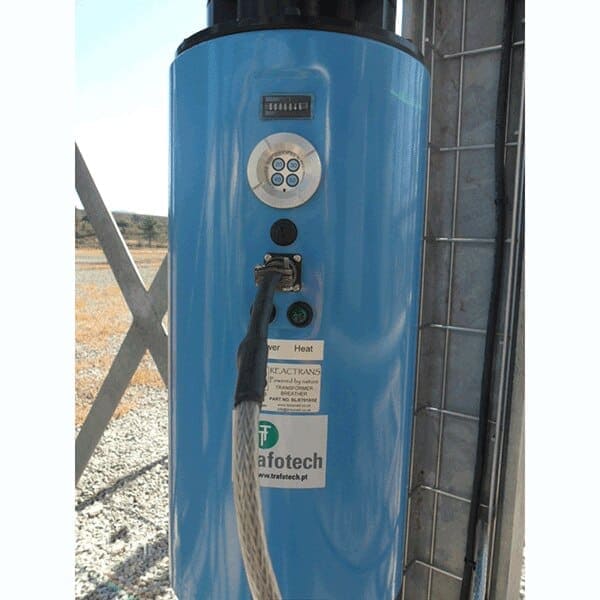

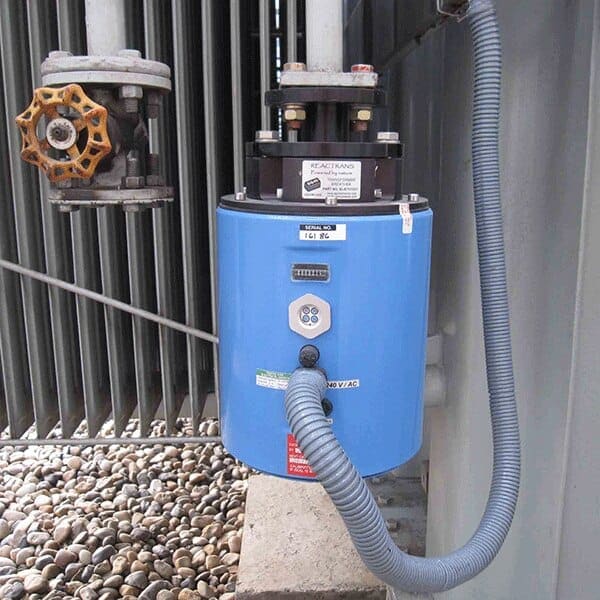

Re-Actrans transformer breathers can provide virtually maintenance-free continuous protection against moisture as the breather is able to self-reactivate by using the natural and environmental thermal cycle of the Re-Actrans transformer to trigger the reactivation of the desiccant and maintain a high adsorption capacity.

An outward flow of air results from the increasing temperature of the transformer, due to an ambient temperature change, solar heater or Transformer duty loading.  In some circumstances all three of these stimulation effects will act collectively.  An integral pressure switch detects a change in pressure caused by the outward air flow displacement, and powers the proportional control thermal heaters and power circuit to manage the reactivation process.

BL/E7010 Drawing

Desiccant Charge
(nominal)

Part Number
Dimension "L"
(Dim L)
Voltage
Power
8.8 lbs (4 kg)
BL/E7010/01
13.9 in (352 mm)
110-240V
224W-280W
17.6 lbs (8 kg)
BL/E7010/02
20.9 in (532 mm)
110-240V
336W-420W

Additional information

desiccant-charge

17.6 lbs, 8.8 lbs

Desiccant Type

Silica Gel
