MS18013-3 Humidity Indicator Plug
Meets MS18013-3

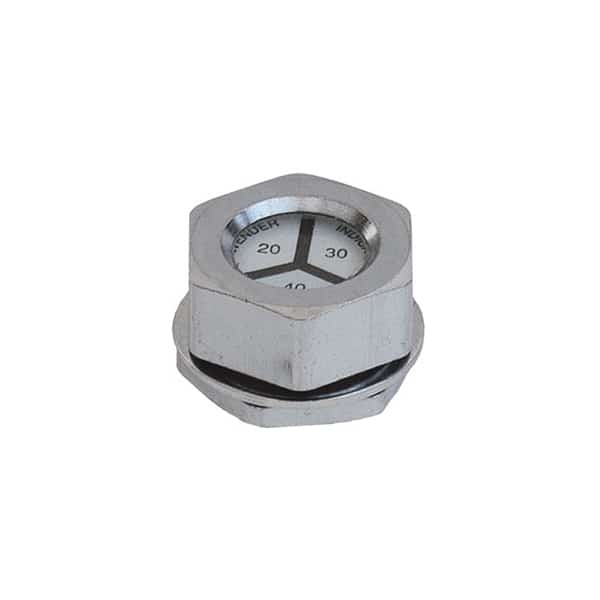

This is a zinc-plated brass Humidity Indicator Plug with a glass window. Furnished with gasket, gasket retainer and nut. It installs into a container through a 0.515 in. (13.1 mm) diameter hole. Furnished with a 20-30-40% pie sector humidity disc. Humidity disc is not field replaceable. NSN # 6685-00-464-4660.
Weight: 0.08 lbs. (36 grams)
Recommended Installation Torque: 25 – 35 in. – lbs. (3.0 – 4.0 N·m)
Maximum wall thickness: 0.15 in. (4 mm)
Additional information
| Weight | 0.0000 lbs |
|---|---|
| Dimensions | 0.0000 × 0.0000 × 0.0000 in |
| Mounting Hole Diameter | 0.515 in (13.1 mm) |
| Body Finish | Zinc-Plated, Clear |
| External Gasket Material | IAW MIL-PRF-6855 |
| Window Diameter | 0.995 in (25.3 mm) |
| Complies With | MS18013-3 |
| Body Material | Brass |
| Weight | 0.08 lbs (36 grams) |
| Internal O-Ring Material | IAW MIL-PRF-6855 |
| Recommended Installation Torque | 25 – 35 in. – lbs. (3.0 – 4.0 N·m) |
| IP/NEMA Rating | This is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K and 13 enclosures, as well as I66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application. |
| Maximum Wall Thickness | 0.15 in (4 mm) |
