DESCRIPTION

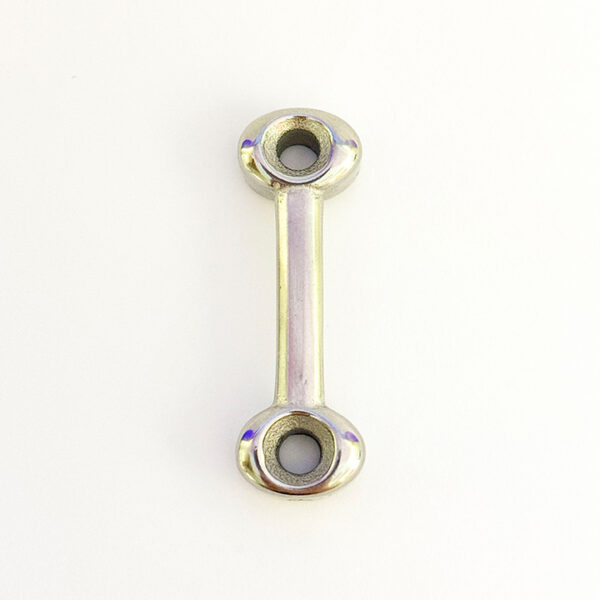

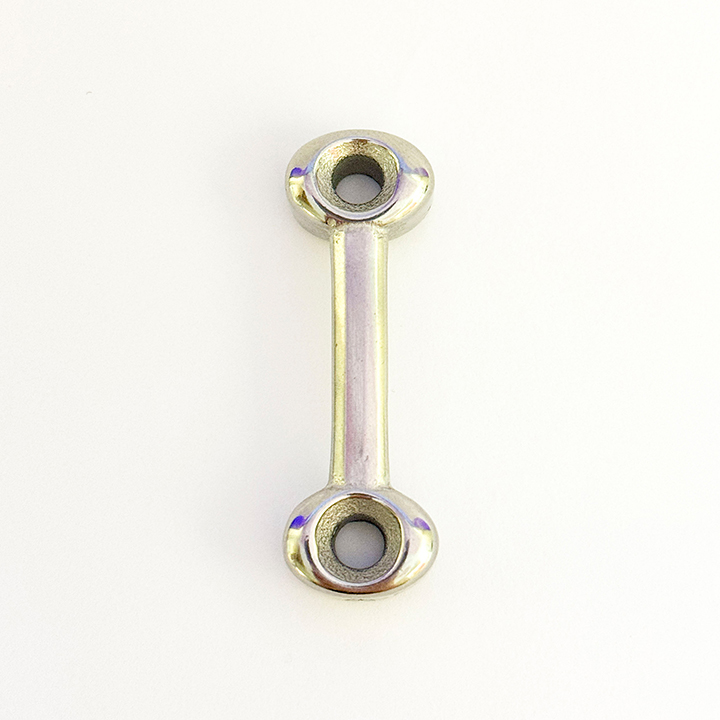

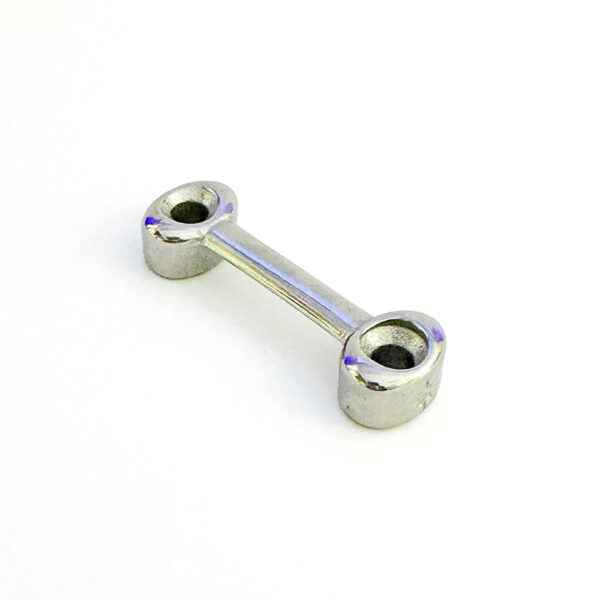

AGM’s K486s 1″ Tie Down Footman’s Loop is used to quickly connect straps with flat hooks as end fittings or for permanent installations of a strap assembly.
ADDITIONAL INFORMATION
Additional information
Weight | 0.0400 lbs |
---|---|
Dimensions | 0.0000 × 0.0000 × 0.0000 in |
Finish | Passivated |
Tie Down Category | Footman's Loop |
Material Type | Type 316 Stainless Steel |
Breaking Strength | 1,000 lbs (453 kg) |
Strap Width | 1" |

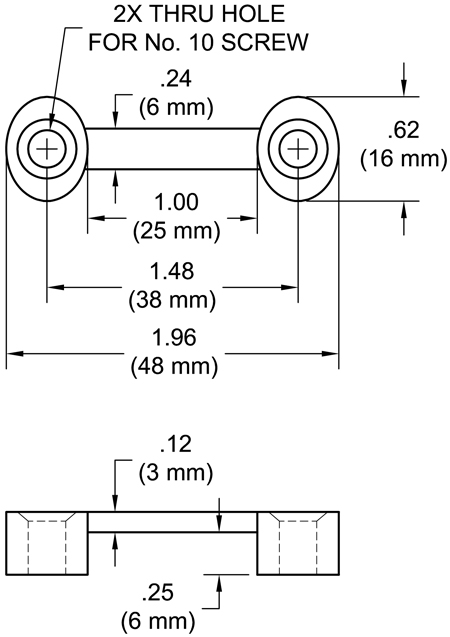

TECH SHEETS
Related products
- Tensioning take up is 5/8" (16 mm).
- Can be used for positive attachment to rods, handles and eye bolts.
- Designed to be used with a bolt to secure strap permanently to mounting surface; also as a plate to attach...
- Recommended to use the C726 on straps that are over 10 ft or where additional take up is needed.
