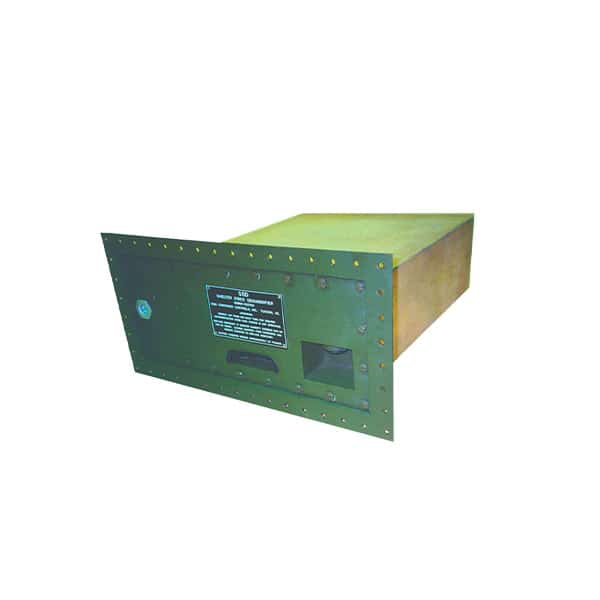

Shelter Static Dehumidifier Horizontal Unit

Description

AGM's Shelter Static Dehumidifier Horizontal Unit only requires an 8-1/4" x 19-1/4" (209.6 mm x 489 mm) mounting space.

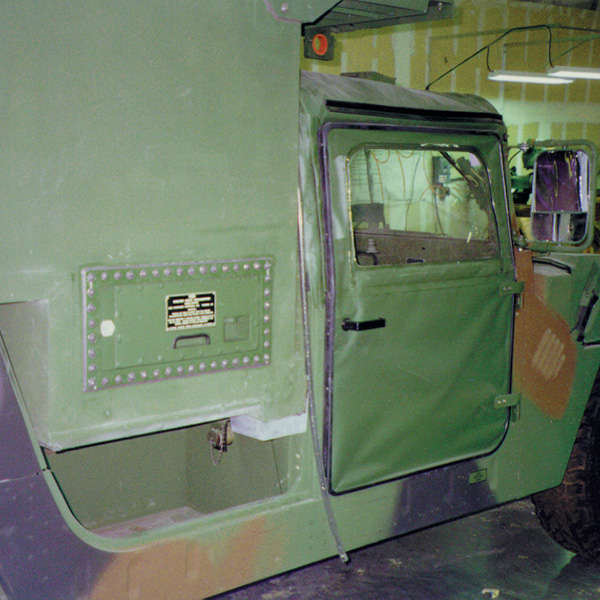

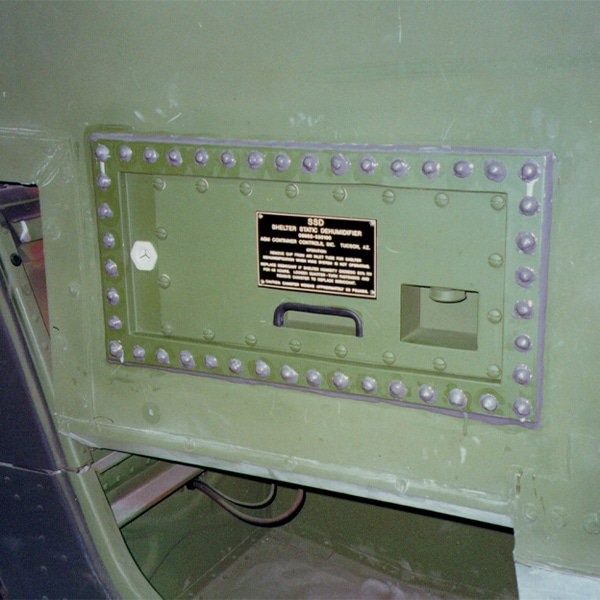

Note: On HMMWV shelter the SSD unit fits in unused space forward of wheel well.

Unit is shielded from electromagnetic interference (EMI), providing at least 60 db attenuation to electric and magnetic fields in the frequency range from 150 KHz to 10.0 GHz.

Part Number: 620000

Overall Dimensions

Width: 21.82" (554.2 mm)

Height: 10.82" (274.8 mm)

Depth: 19.66" (499.4 mm)

Weight: 25 lbs. (empty)

Holds 35 lbs. of silica gel desiccant

Shelter Static Dehumidifier drawing

Additional information

Mounting Space

8.25" x 19.25"

Height

10.82" (274.83 mm)

Width

21.82" (554.23 mm)

Depth

19.66" (499.36 mm)

Weight

21.82 lbs (empty)
