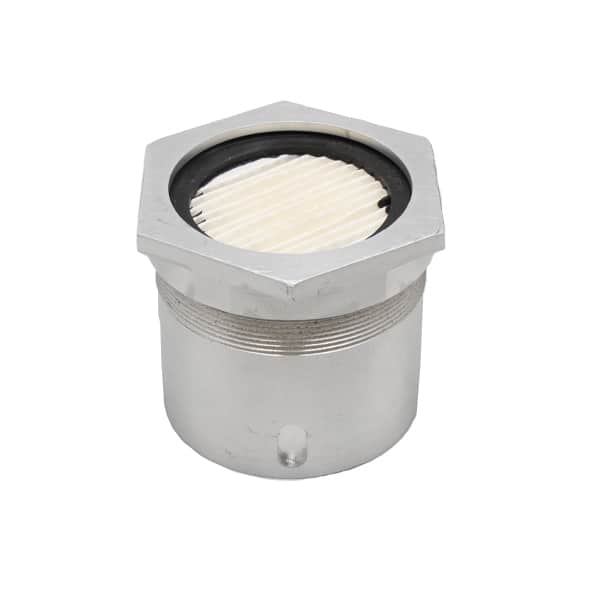

High Flow Filter Assembly 773090

Description

The 773090 High Flow Filter Assembly is designed to mount onto TA770 style valves with 2”-18 UNS-2A threading. It features an accordion shaped filter membrane that increases surface area and dramatically increases flow capacity when compared to a flat filter.

There are a variety of different media for these filters. The standard media removes 99% of particles 2 microns or larger. HEPA (High-Efficiency Particulate Arresting) is also available, which removes 99.97% of particles 0.3 microns or larger. Higher flow or more efficient filtration media are available upon request.

RFI/EMI shielding is also available with this high flow filter assembly. RFI/EMI shielded versions include a wire mesh screen and a conductive gasket.

Weight:130 grams (0.29 lbs.)

773090 High Flow Filter Assembly Flow Chart

773090 High Flow Filter Assembly Drawing

Additional information

Weight130 lbs
