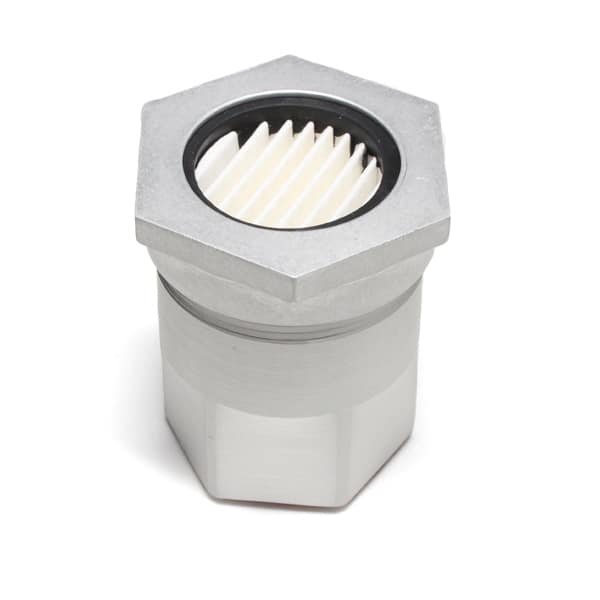

High Flow Filter Assembly 302710
SKU: 302710

High Flow Filter Assembly 302710

Description

The 302710 High Flow Filter Assembly is designed to mount onto valves with 3/4”-14 NPSM threading. It features an accordion shaped filter membrane that increases surface area and dramatically increases flow capacity when compared to a flat filter.

There are a variety of different media for these filters. The standard media removes 99% of particles 2 microns or larger. HEPA (High-Efficiency Particulate Arresting) is also available, which removes 99.97% of particles 0.3 microns or larger. Higher flow or more efficient filtration media are available upon request.

RFI/EMI shielding is also available with this high flow filter assembly. RFI/EMI shielded versions include a wire mesh screen and a conductive gasket. The filter assembly may also be designed to incorporate a desiccant cartridge. Please contact AGM's Engineering department for more information.

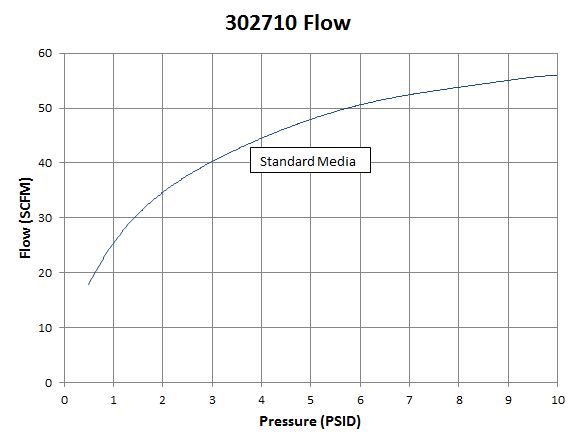

302710 High Flow Filter Assembly flow chart

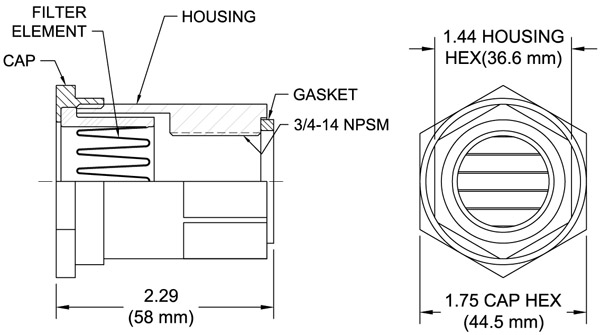

302710 High Flow Filter Assembly Drawing
