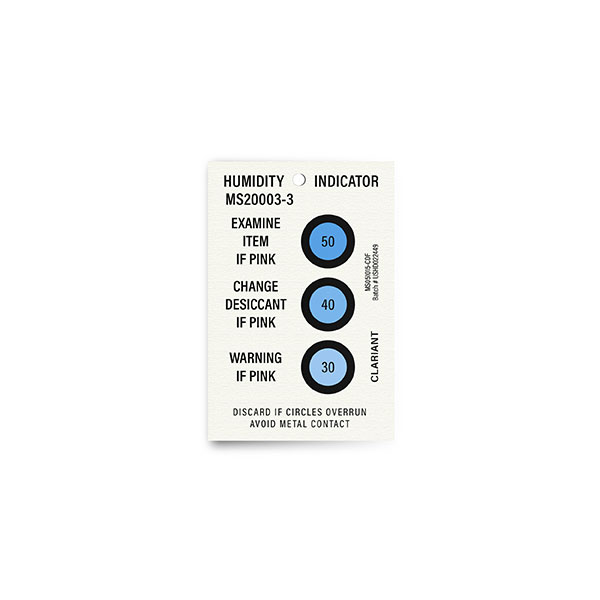

30-40-50% Reversible Small Humidity Indicator Card – MIL-I-8835 Qualified
This Humidity Indicator Card is a color-change indicator and is reversible as required by Military Specification MIL-I-8835. As the humidity increases, the chemically impregnated spots change from a blue color (DRY), through a lavender, to a pink color (HUMID). As the humidity decreases, the spots change from a pink color (HUMID), through a lavender, back to a blue color (DRY).
P/N 24877127681 is accurate to ±5% relative humidity (RH) at 75°F (24°C). Other humidity combinations are available by special order.
NOTE: This card has been impregnated with a chemical that may cause corrosion of some metals; therefore AGM recommends that the card not be placed in direct contact with metal objects.
This card is used where space may be a problem. It is similar in design to the MS20003-2, except it is approximately 1/4 its size, and it is functionally equivalent to the MS20003-3 humidity indicator card, but has slightly different dimensional tolerances, making the 24877127681 ideal for small package applications. NSN # 6685-01-008-7563.
Additional information
Weight | 0.0000 lbs |
---|---|
Dimensions | 0.0000 × 0.0000 × 0.0000 in |
Complies With | MIL-I-8835 |
Standard Packaging | 500 per pint |
Previous Part Number | MS20003-3 |
Rectangular Card RH | 30% 40% 50% |
Product Size | 1.00" x 1.63" |
Card Type | Reversible |
Color | Blue to Pink |
